Quick Details
-
Dimension(L*W*H):
-
According to model
-
Year:
-
new
-
Power (kW):
-
2.2 kW
-
Weight (KG):
-
800 KG
-
Application:
-
Rubber Processing Machinery
-
Raw material:
-
Rubber Scraps
-
Name:
-

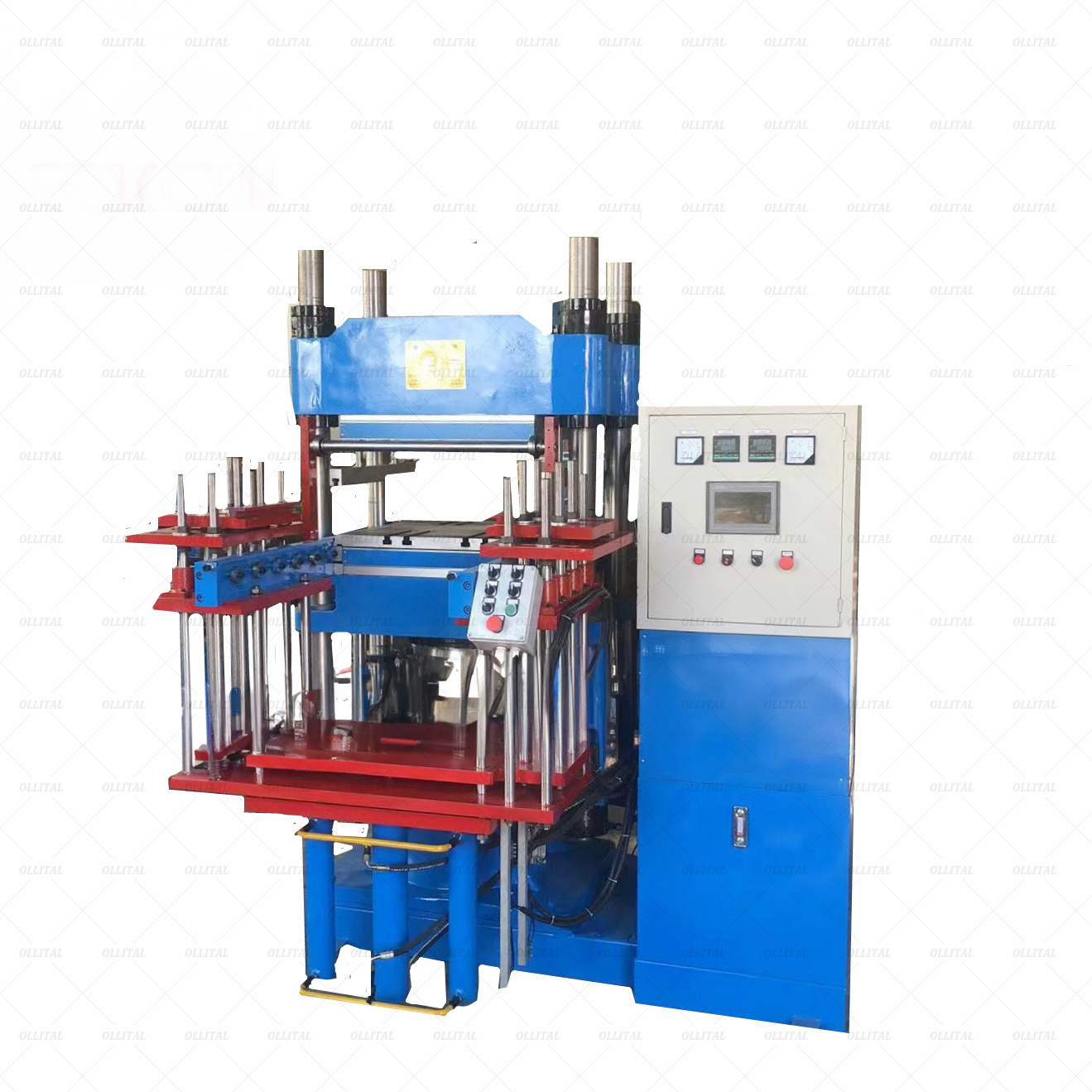

Vulcanizing Press Machine
-
Function:
-
Rubber Product Vulcanization
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
OLLITAL
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
According to model
-
Year:
-
new
-
Power (kW):
-
2.2 kW
-
Weight (KG):
-
800 KG
-
Application:
-
Rubber Processing Machinery
-
Raw material:
-
Rubber Scraps
-
Name:
-
Vulcanizing Press Machine
-
Function:
-
Rubber Product Vulcanization
↓ ↓ ↓
A variety of styles for you to choose from. There is always one suitable for you!
↓ ↓ ↓
-
Rubber mixer (rubber open mill)
: Used to mix, grind and masticate raw rubber and additives to achieve uniform dispersion and improve vulcanization performance.
-
Rubber extruder
: used to extrude the mixed rubber material into continuous strips, belts or pipes of various cross-sectional shapes, often used to make rubber seals, pipe fittings, etc.
-
Rubber Calender
: The mixed rubber material is extruded and calendered through a calendering roller group to make a rubber sheet or film of a certain thickness, which is often used in the production of rubber floors, gaskets and other products.
-
Rubber injection molding machine
: Inject heated and softened rubber material into the mold and use high-pressure injection molding to produce various complex-shaped rubber products, such as seals, parts, etc.
-
Rubber vulcanizing machine (rubber vulcanizing pot)
: Put the formed rubber products into the vulcanizing tank, and perform vulcanization treatment under certain temperature, pressure and time conditions, so that the rubber products obtain ideal physical and mechanical properties.
|
Model
|
OLT-JZ-25T
|
OLT-JZ-50T
|
OLT-JZ-80T
|
OLT-JZ-100T
|
||||
|
Hot plate specifications
|
350*350mm
|
400*400mm
|
400*400mm
|
450*450mm
|
||||
|
Number of hot plate layers
|
1 layer (can increase by 1)
|
1 layer (can increase by 1)
|
1 layer (can increase by 1)
|
1 layer (can increase by 1)
|
||||
|
Hot plate distance
|
Single layer 75-280mm (optional) Double layer 110mm
|
|
|
|
||||
|
brand
|
OLLITAL
|
OLLITAL
|
OLLITAL
|
OLLITAL
|
||||
|
Maximum hydraulic pressure
|
16Mpa
|
16Mpa
|
16Mpa
|
16Mpa
|
||||
|
Cylinder diameter
|
152mm
|
152mm
|
152mm
|
152mm
|
||||
|
Heating method
|
Electric heating
|
Electric heating
|
Electric heating200°
|
Electric heating
|
||||
|
Maximum temperature
|
200°
|
200°
|
200°
|
200°
|
||||
|
Motor
|
Three phase motor
|
Three phase motor
|
Three phase motor
|
Three phase motor
|
||||
|
Structure type
|
Four pillars
|
Four pillars
|
Four pillars
|
Four pillars
|
||||
|
Power (hot plate per layer)
|
2400W
|
2700W
|
2700W
|
3000W
|
||||
|
Weight
|
≈ 700Kg
|
|
|
|
||||
|
Voltage
|
380V
|
|
|
|
||||
|
Special requirements
|
Customized upon request
|
|
|
|
||||
|
Standard accessories
|
1 host
|
1 host
|
1 host
|
1 host
|
||||
|
Optional
|
1-layer heating plate, rubber sample preparation mold, plastic sample preparation mold, automatic pressure reduction, water cooling for plastic products
|
|
|
|
||||
|
|
|
|
|
|||||
* All models can be customized according to drawings and needs.
Contact an engineer
today to learn about the most suitable and cost-effective solution!
①
Control panel, simple and intuitive
②
Electric heating system
It has the characteristics of precise control, uniform heating, quick response, safety and reliability, energy saving and environmental protection, convenient maintenance and automatic control. It can effectively realize the vulcanization processing of rubber products and improve production efficiency and product quality.
③
Single pump drive
The single-pump drive system has the characteristics of simple structure, space saving, convenient operation, high stability, low maintenance cost, energy saving, environmental protection and wide applicability. Its simplified design reduces maintenance and repair costs, improves equipment reliability and stability, is suitable for a variety of rubber vulcanizers, and is widely used in industrial production.
④
Various styles to choose from
A variety of styles to choose from, including diverse capacities, flexible heating methods, diverse structural designs, high degree of automation, excellent safety performance, energy saving and environmental protection, convenient operation and wide range of applications. The selection of these styles is flexible and can meet the production needs of different scales and process requirements, providing important processing equipment for the production of rubber products.
