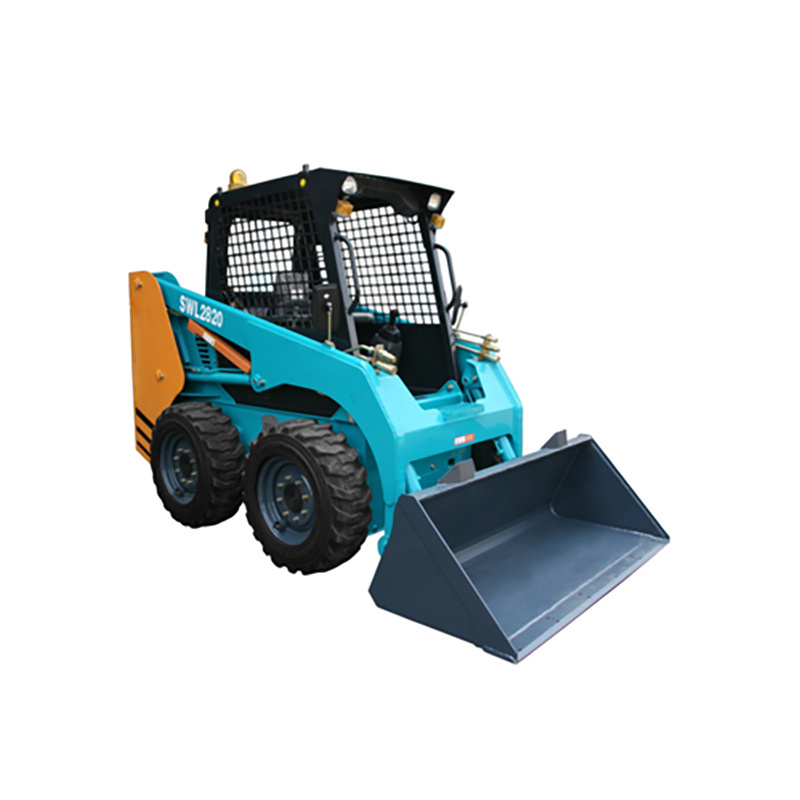

Good Performance 36KW Skid Steer Loader SWL2820 with optional accessories and spare parts within Earthmoving Machinery
Good Performance 36KW Skid Steer Loader SWL2820 with optional accessories and spare parts within Earthmoving Machinery
Good Performance 36KW Skid Steer Loader SWL2820 with optional accessories and spare parts within Earthmoving Machinery
Good Performance 36KW Skid Steer Loader SWL2820 with optional accessories and spare parts within Earthmoving Machinery
Good Performance 36KW Skid Steer Loader SWL2820 with optional accessories and spare parts within Earthmoving Machinery
Good Performance 36KW Skid Steer Loader SWL2820 with optional accessories and spare parts within Earthmoving Machinery
Good Performance 36KW Skid Steer Loader SWL2820 with optional accessories and spare parts within Earthmoving Machinery
Good Performance 36KW Skid Steer Loader SWL2820 with optional accessories and spare parts within Earthmoving Machinery

Good Performance 36KW Skid Steer Loader SWL2820 with optional accessories and spare parts within Earthmoving Machinery

FOB Reference Price: Get Latest Price
≥10 Pieces
US $25000
≥11 Pieces
US $20000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Hunan, China
Dimension(Long * Breadth * High):
3318*1600*2014mm
Machine Weight:
3670 kg
Bucket capacity:
0.4m³, 0.4M3
Marketing Type:
Hot Product
Bucket width:
1.6 m
Travel speed:
13 km/h
Max. discharge height:
2.32 m
Revolutions at max torque:
1800 rpm
Max. torque:
156.3 Nm
No. of cylinders:
4

Quick Details

Engine Brand:
Top brand
Power:
36kw
Brand Name:
Top brand
Place of Origin:
Hunan, China
Dimension(Long * Breadth * High):
3318*1600*2014mm
Machine Weight:
3670 kg
Bucket capacity:
0.4m³, 0.4M3
Marketing Type:
Hot Product
Bucket width:
1.6 m
Travel speed:
13 km/h
Max. discharge height:
2.32 m
Revolutions at max torque:
1800 rpm
Max. torque:
156.3 Nm
No. of cylinders:
4
PRODUCT DISCRIPTION
China Best Skid Steer Loader SWL2820 With Multi-Purpose Accessories In Cheap Price
*The SWL2820 skid steer loader is highly versatile and compact enough to be easily maneuverable in small spaces. Despite its compact size, you will be impressed by the great breakout force and huge lift capacity.

*The powerful engine offers performance, exceptional reliability, long service life and complies with the European Union’s Stage V emission requirements. Maintenance and service are also easily accessible.

*Daily maintenance is very easy since service checkpoints and cooling system components are
accessible at ground level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.

*When it comes to comfort, the SWL 2830 offers a spacious cab with a wide entrance, a comfortable seat, ergonomic controls, and excellent all-around visibility.

*Last but not least, safety is not at rest thanks to the ROPS/FOPS cab coupled with the excellent visibility and great stability of the machine.

CONTACT
PRODUCTS PICTURES
PRODUCT PARAMETER
Model
SWL2820
Pile parameters
mm
3318*1600*2014
Operating parameters
Max. operating altitude
mm
3850
Height to bucket hinge pin
mm
3002
Height to top of cab
mm
2014
Height to bottom of level bucket
mm
2834
Overall length without attachment
mm
2604
Overall length with standard bucket
mm
3318
Dump angle at full height
°
42
Dumping height
mm
2320
Dumping reach
mm
475
Rollback at ground
°
30
Rollback angle at full height
°
97
Wheelbase (Crawlar base)
mm
987
Ground clearance
mm
220
Angle of departure
°
25
Without the attachments before turning radius
mm
1235
Before turning radius
mm
1953
After turning radius
mm
1531
Tail length
mm
1021
Wheel spacing (Track gauge)
mm
1293
Bucket width
mm
1600
Performance
Total weight
kg
2830
Loading capacity
kg
750
Tipping load
kg
1500
Bucket breakout force lift
kg
2000
Boom breakout force lift
kg
1900
Max. traveling speed
km/h
13
Engine
Brand
Japanese engine
Model
V2403M-DI
(V2403M-T)
Type
4-cylinder, water-cooled, diesel engine
Emission standards
EPA Tier4/
EU Stage III A
Power
kW/rpm
36/2600
(41.7/2600)
Max. torque
N.m/rpm
156.3/1600
(163.6/1800)
