Quick Details
-
Name:
-
Used Grain Storage Silo/Bulk Feed Bins for sale
-
Capacity:
-
Customized Size
-
Material:
-
Steel
-
Dimension:
-
Size
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GUOYU
-
Model Number:
-
GY
-
Name:
-
Used Grain Storage Silo/Bulk Feed Bins for sale
-
Capacity:
-
Customized Size
-
Material:
-
Steel
-
Dimension:
-
Size

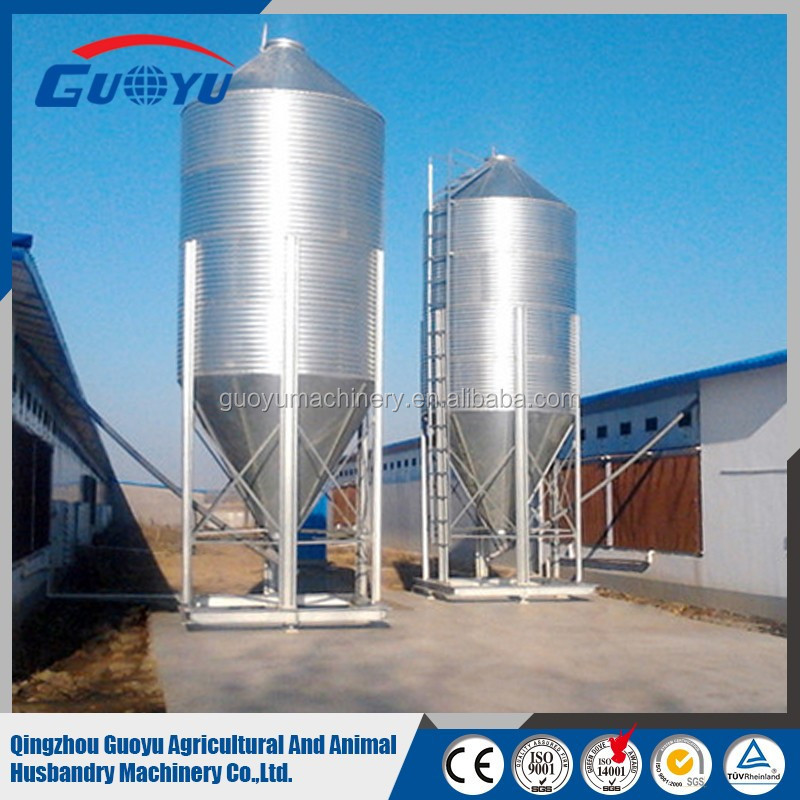

Guoyu silo consist of main warehouse, flip, ladders, columns and other components. the main warehouse used 275g/m2, double hot dip galvanized sheet steel, has a lower conical holes to view feed level. silo volume according to different actual combinations.Hoarding water in a slope, in the horadings at the bottom flange, so that rain water away from the cutting area. Provide weather protection , regardless of the weather. the next round head screw connection cone inside, effectively reducing cutting resistance. Upper and lower cone by pressure off treatment,both to improve the cone and strength of cone bottom's overall, but also conducive to bilateral clay bar installation , enhanced sealing
.
Application for poultry farm, pig farm,goat farm and sheep house etc.
2.Components:
a.Sturdy ladder system are attached to both silo side and side walls.
b.Silo legs are made of heavy, galvanized steel.
c.Vertical window gives a clear exhibition of feed amount and more convenient.
d.Encapsulated bolts on outside to prevent corrosion.
3.Advantages:
a.Low weight, higher strength, anti corrision, temperature preservation, insulation, long life usage etc
b.Keep the feeds fresh and nutritious.
c.New designed legs, easy to assemble, weatherproof.
d.Inner sidewall polished, feed drop smoothly.
e.Prevent corrosion..
Transparent viewing window
Transparent viewing window is good for observing feed delivery condition in the silo clearly.
Use high strength plastic
fastened strongly and sealed.
Non-friable more secure and durable
Silo body is 1250mm w ide,fit for different thickness requirements(1.0-1.5mm)
All steel plate joints are fixed by Grade8.8,M10 bolt and seal g ums,ensurin g no leaking seams,security and long operating life
Transparent feed opening
Use high strength plastic
fastened strongly and sealed
Non-friable more secure and durable
