Quick Details
-
Dimensions (L x W x H) (mm):
-
11430*2500*3300
-
Place of Origin:
-
Hubei, China
-
Chassis model:
-
ZZ1317N4667E1B
-
Engine model:
-
D10.28-50
-
Product name:
-
HOWO 380HP Heavy Duty Towing Wrecker Truck
-
Color:
-
Customized
Quick Details
-
Emission Standard:
-
Euro 4
-
Condition:
-
New
-
Brand Name:
-
SINOTRUK
-
Dimensions (L x W x H) (mm):
-
11430*2500*3300
-
Place of Origin:
-
Hubei, China
-
Chassis model:
-
ZZ1317N4667E1B
-
Engine model:
-
D10.28-50
-
Product name:
-
HOWO 380HP Heavy Duty Towing Wrecker Truck
-
Color:
-
Customized

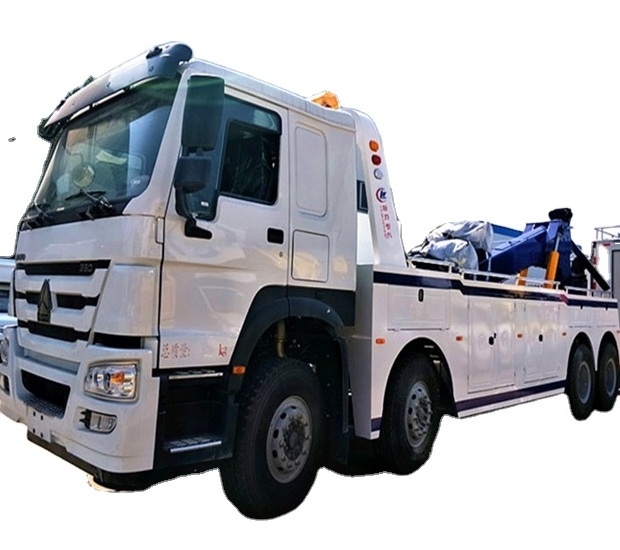

SINOTRUCK HOWO 8*4 Heavy Duty Wrecker Towing Truck for sale in Mexico
1. China professional manufacturer of wrecker tow trucks
2. Drive model: 4x2,4x4,6x4,6x6,8x4 wrecker tow trucks for choose
3. Different brands of tow trucks: Dongfeng, North Benz,JAC, JMC, FAW, Foton, Sinotruck, etc
4. Engine: Euro 2, Euro3 or Euro 4 emission standard of wrecker tow trucks for choose
5. Left hand drive/ Right hand drive wrecker tow truck with optional
Wrecker truck, full name is road wrecker truck, is also called trailer truck or road rescue wrecker truck or towing truck. It has multiple functions such as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc. Wrecker truck basically is refitted from the loading goods second class chassis, according to the wrecker truck's structure, it can be divided into tow, loading, lifting, rescue (single arm type and arms type) wrecker truck.
|
Classification |
Item |
Unit |
Parameter |
|||
|
Vehicle |
Vehicle model |
S INOTRUK HOWO Heavy Duty Towing Wrecker Truck CLW5311TQZZ5 |
||||
|
Overall dimensions |
mm |
11430×2500×3300 |
||||
|
Tablet Size |
5600×2500 |
|||||
|
GVW |
kg |
31000 |
||||
|
Curb weight |
20770 |
|||||
|
Traction system |
8×4 |
|||||
|
Transmission |
10-speed with over drive |
|||||
|
Max speed |
km/h |
102 |
||||
|
Chassis |
Chassis model |
ZZ1317N4667E1B |
||||
|
Number of springs |
11/11/12 |
|||||
|
Wheel base |
mm |
1800+4600+1350 |
||||
|
Tire specification |
12.00R20 |
|||||
|
Number of tires |
12+1 spare |
|||||
|
F/R track base |
mm |
2022/ 1830 |
||||
|
Engine |
Engine model |
D10.28-50 |
||||
|
Manufacturer |
China Heavy Automobile Group CO.,LTD |
|||||
|
Engine horse power |
hp |
380 |
||||
|
Displacement |
ml |
9726 |
||||
|
Emission standard |
Euro 5 |
|||||
|
Lift function |
||||||
|
Rated lift quality |
3500 kg |
Corbel telescopic stroke |
1200 mm |
|||
|
Max effective length |
1300 mm |
Max tractor speed |
40 km/h |
|||
|
Tablet Agency |
||||||
|
Tablet Size(LxW) |
5600×2500mm |
Min inclination angle |
10° |
|||
|
working stroke |
2700 mm |
Max load mass |
16000 kg |
|||
|
Winch parameters |
||||||
|
Number |
1 |
Rated traction mass |
20000 kg |
|||
|
Rope length |
45m |
Strand speed |
8 m / min |
|||
|
Production cycle |
10-15 working days |
|||||
|
FOB Shanghai |
USD |
|||||
1. Packaging: Nude, but waxed before shipment in our factory.
2. Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements.
