Quick Details
-
Range of Spindle Speed(r.p.m):
-
30 - 1600 r.p.m
-
Width of bed (mm):
-
250
-
Max. Turned Length (mm):
-
1500 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
C&J
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
2070*1130*1650mm
-
Weight (KG):
-
1750 KG
-
Automatic Grade:
-
Manual
-
Machine Type:
-
Horizontal Normal Lathe
-
Name:
-
Lathe Machine
-
Spindle bore:
-
52mm
-
Spindle speed:
-
45-1800prm
-
Distance between centers:
-
1000/1500mm
-
Max swing over bed:
-
410mm
-
Weight:
-
1500kg
-
Certification:
-
CE ISO
-
Power:
-
2.8/3.3kw
Quick Details
-
Max. Length of Workpiece (mm):
-
1500
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
52
-
Range of Spindle Speed(r.p.m):
-
30 - 1600 r.p.m
-
Width of bed (mm):
-
250
-
Max. Turned Length (mm):
-
1500 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
C&J
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
2070*1130*1650mm
-
Weight (KG):
-
1750 KG
-
Automatic Grade:
-
Manual
-
Machine Type:
-
Horizontal Normal Lathe
-
Name:
-
Lathe Machine
-
Spindle bore:
-
52mm
-
Spindle speed:
-
45-1800prm
-
Distance between centers:
-
1000/1500mm
-
Max swing over bed:
-
410mm
-
Weight:
-
1500kg
-
Certification:
-
CE ISO
-
Power:
-
2.8/3.3kw
Chinese metal lathe CD6241 used metal lathe machine for sale
Product Description
chinese metal lathe CD6241 used metal lathe machine for sale
metal lathe machine/ lathe to metal/ metal lathe cutting tools/ metal lathe 220v/ desktop metal lathe/ metal lathe tools
| HIGH PRECISION &HEAVY DUTY INDUSTRIAL LATHE | ||
| Model | CD6241×1000 | CD6241×1500 |
| Max.swing over bed | Φ410mm(16") | |
| Max.swing over cross slide | Φ255mm(10") | |
| Max. swing over gap | Φ580mm(23") | |
| Center height | 205mm(8") | |
| Distance between centers | 1000mm(40")/1500mm(60") | |
| Width of bed | 250mm(10") | |
| Max.section of tool | 20mm×20mm(3/4"×3/4") | |
| Max.travel of cross slide | 210mm(8 1/2") | |
| Max.travel of compound rese | 140mm(5 1/2") | |
| Spindle bore | Φ52mm(2") | |
| Spindle nose | D1-6 | |
| Taper of spindle speed | M.T.#6 | |
| Range of spindle speed | 16changes25-1800r/min | |
| Leadscrew pitch | 4 T.P.I. | |
| Range of metric longitudinal feeds range | 0.05-1.7mm/rev(17 Nos) | |
| Range of inch longitudinal feeds | 0.002"-0.067"/rev (17 Nos) | |
| Range of metric cross feeds | 0.025-0.85mm/rev (17 Nos) | |
| Range of inch cross feeds | 0.001"-0.0335"/rev (17 Nos) | |
| Range of metric threads | 0.2-14mm(NO. 39) | |
| Range of inch threads | 2-72 T.P.I.(NO. 45) | |
| Range of Diametrical pitch | 8-44D.P.(21Nos) | |
| Range of module pitches | 0.3-3.5 M.P.(18Nos) | |
| Dia. of tailstock sleeve | 50mm(2") | |
| Travel of tailstock sleeve | 120mm(4 3/4") | |
| Morse taper of tailstock sleeve | M.T.#4 | |
| Power of main motor | 2.2/3.3kw(optional 3/5.5kw) | |
| Power of coolant pump | 4P,3PH 90W | |
| Overall diamension(L*W*H) | 1940mm×850mm×1320mm | |
| Packing size(L*W*H) | 2070mm×940mm×1600mm | |
| N.W/G.W | 1550kg/1760kg | |
| Standard Accessories: | Optional Accessories: |
| 3 Jaw Chuck | Taper Turning Attachment |
| Change Gears Set | Live Center |
| Chasing Dial Indicator | Work Light |
| Reduction Sleeve | Leadscrew Guard |
| Dead Centers | Digital Readout |
| Full Length Splash Guard | Quick Change Tool Post |
| Coolant System | Chuck Guard |
| Brake System | Digital Readout(2 Axis) |
| 4 Jaw Chuck | Drill Chuck+Drill Arbor |
| Face Plate | |
| Steady Rest | |
| Follow Rest | |
| Tool Box&Tools |
metal lathe/ mini metal lathe/ mini lathe metal/ hobby metal lathe/ chinese metal lathe/ small metal lathe/ used metal lathe machine for sale/ lathe machine metal

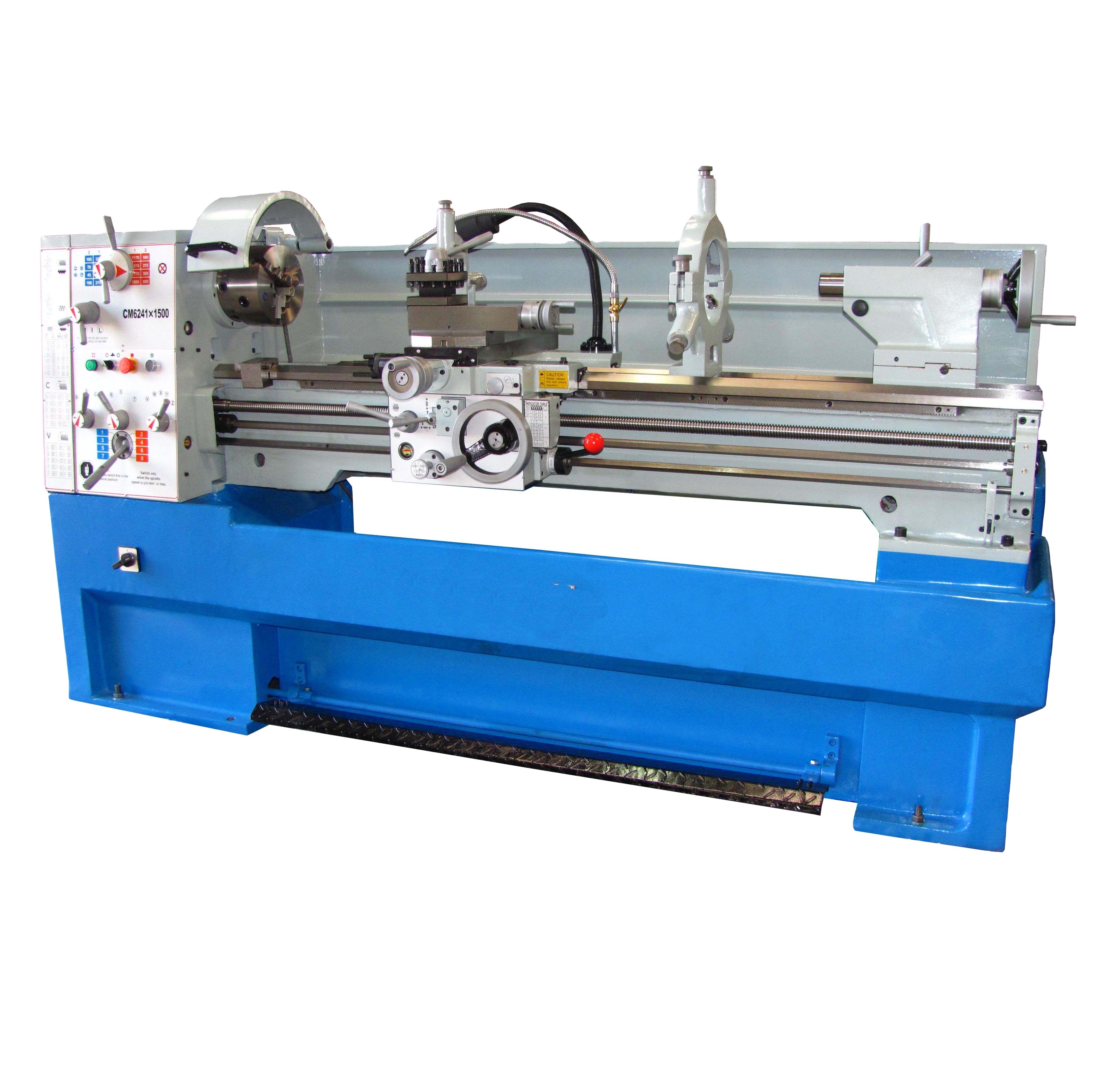

Machine photo:
