Quick Details
-
Brand Name:
-
BIOBASE
-
Voltage:
-
220,110V
-
Power:
-
1.8KW
-
Dimension(L*W*H):
-
545*686*938
-
Weight (KG):
-
170
-
Evaporation Capacity(kg/h):
-
6
-
Product name:
-
Freeze Dryer
-
Freeze Drying Area:
-
0.18m2
-
Tray:
-
4pcs
-
Height Between Trays:
-
80mm
-
Cold Trap Capacity:
-
28L
-
Cold Trap Size(Diameter*H):
-
300*410mm
-
vacuum Degree:
-
5Pa
-
Water Capture Capacity:
-
6L/24h
-
Tray Size(D*H):
-
240*20mm
-
Freeze Drying Time:
-
36h
Quick Details
-
Type:
-
Vacuum Drying Equipment
-
Drying Capacity (kg):
-
6
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Voltage:
-
220,110V
-
Power:
-
1.8KW
-
Dimension(L*W*H):
-
545*686*938
-
Weight (KG):
-
170
-
Evaporation Capacity(kg/h):
-
6
-
Product name:
-
Freeze Dryer
-
Freeze Drying Area:
-
0.18m2
-
Tray:
-
4pcs
-
Height Between Trays:
-
80mm
-
Cold Trap Capacity:
-
28L
-
Cold Trap Size(Diameter*H):
-
300*410mm
-
vacuum Degree:
-
5Pa
-
Water Capture Capacity:
-
6L/24h
-
Tray Size(D*H):
-
240*20mm
-
Freeze Drying Time:
-
36h
Product Description
Large

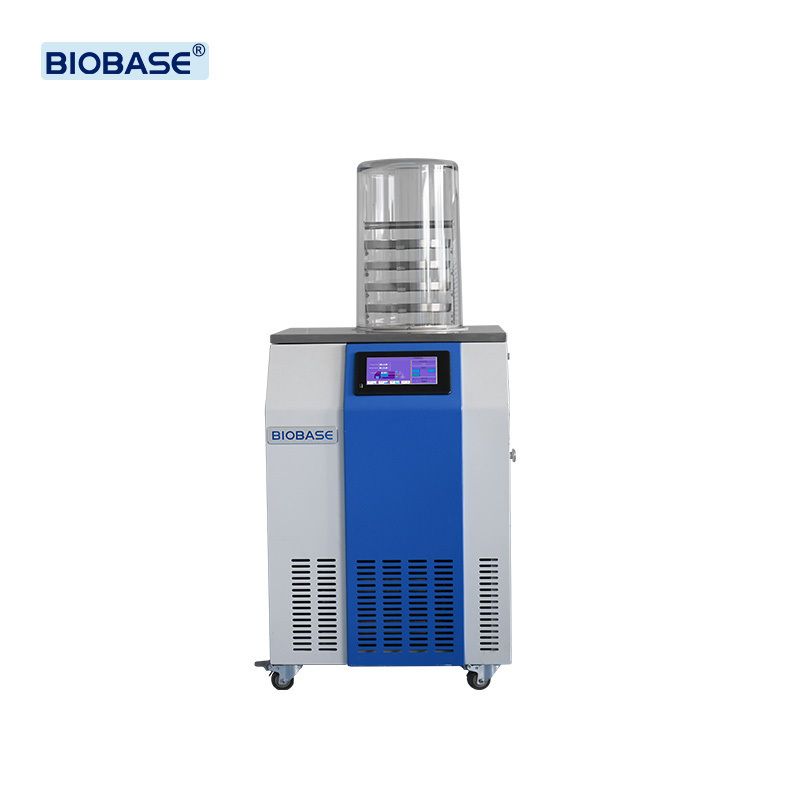

Tabletop Freeze Dryer
BK-FD18S
Application
.
Vacuum freeze-drying technology is also known as sublimation drying.The principle is to freeze a sample containing water
in advance,and then sublimate its moisture under vacuum.The original biological,chemical and physical properties of the freeze-dried samples remain basicaly the same, and they are easy to be stored for a long time.After adding water,the samples can be restored to the state before freeze-drying,and their original biochemical characteristics can be maintained.
Therefore,freeze-drying technology is widely used in medicine,food,chemical,biological products and other fields.
Features
* Compressor, energy saving and high eficiency, low noise, long life.
* Vacuum pump, small volume, pumping speed, low noise, can achieve higher vacuum.
* Integrated design, compact structure, easy to use.
* Environmentally friendly refrigerant, ODP=0.
* With defrosting function, safe and reliable.
* The cold trap and operating table are made of stainless steel, corrosion resistant and easy to clean.
* The transparent cover of the drying chamber is made of aviation acrylic material, with high strength and no bonding.
* Large cold trap opening size, with pre-freezing function, no need for low temperature refrigerator.
* Professional gas diversion technology, high freeze-drying efficiency, and uniform ice capture.
Specification
|
Model
|
|
BK-FD18S(-56/-80)
|
BK-FD18P(-56/-80)
|
BK-FD18T(-56/-80)
|
BK-FD18PT(-56/-80)
|
||||
|
Type
|
|
Standard chamber
|
Standard chamber with 8 port manifold
|
Stoppering chamber
|
Stoppering
chamber with 8 port manifold |
||||
|
Freeze Drying Area
|
|
0.18m²
|
|
0.09m²
|
|
||||
|
Tray
|
|
4pcs
|
|
3pcs
|
|
||||
|
Height Between Trays
|
|
70mm
|
|
|
|
||||
|
Cold Trap Temperature
|
|
≤-56℃/-80℃(Optional)
|
|
|
|
||||
|
Cold Trap Capacity
|
|
23L
|
|
|
|
||||
|
Cold Trap Size (Dr*H)
|
|
Φ270*400mm
|
|
|
|
||||
|
Vacuum Degree
|
|
<5Pa
|
|
|
|
||||
|
Water Capture Capacity
|
|
6kg/24h
|
|
|
|
||||
|
Tray Size (D*H)
|
|
Φ240*18mm
|
|
Φ200*18mm
|
|
||||
|
Freeze Drying Time
|
|
18-36h
|
|
|
|
||||
|
Loading Capacity/Shelf (Liquid)
|
|
0.45L
|
|
0.3L
|
|
||||
|
Total Loading Capacity (Liquid)
|
|
1.8L
|
|
0.9L
|
|
||||
|
Drying Chamber Size (D*H)
|
|
Φ300*445mm
|
Φ300*465mm
|
Φ300*540mm
|
Φ300*570mm
|
||||
|
Can Load Vials Qty
|
Φ22mm
|
/
|
|
270
|
|
||||
|
|
Φ16mm
|
/
|
|
555
|
|
||||
|
|
Φ12mm
|
/
|
|
990
|
|
||||
|
Refrigerant
|
|
R404+R23
|
|
|
|
||||
|
Cooling System
|
|
Air cooling
|
|
|
|
||||
|
Consumption
|
|
-56℃: 1.4KW;
-80℃: 2.1KW. |
|
-56℃: 1.4KW;
-80℃: 2.1KW. |
|
||||
|
Power Supply
|
|
AC220V, 50Hz/60Hz (single phase); 110V, 60Hz (single phase)
|
|
|
|
||||
|
Standard Accessory
|
|
-56℃ cold trap, Vacuum pump 4L/S, 14.4m³, Material tray(for all models)
Flasks 100ml*2, 250ml*2, 500ml*2, 1000ml*2 (only for model BK-FD18P/PT) |
|
|
|
||||
|
Optional Function & Accessory
|
|
-80℃ -110℃ cold trap, Anti-reverse oil stop valve, Oil mist filter, Import vacuum pump(for all models);
Conical-mouth flask and wide-mouth flask(for BK-FD18P/PT) |
|
|
|
||||
|
External Size (W*D*H)
|
|
630*580*970/1415mm
|
630*580*970/1435mm
|
630*580*970/1510mm
|
630*580*970/1810mm
|
||||
|
Package Size(W*D*H)mm /
Gross Weight |
Main Body
|
790*690*1200(148kg)
|
|
|
|
||||
|
|
Drying Chamber
|
420*420*560(14kg)
|
430*430*660 (26kg)
|
|
|
||||
|
|
Vacuum Pump
|
620*370*450 (32kg
|
|
|
|
||||
