Quick Details
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
3.5*1.95*2.03m
-
Weight:
-
4500kg
-
Working Pressure:
-
23bar
-
Air capacity:
-
29m3/min
-
Core Components:
-
airend
-
Product name:
-
air compressor for drill rig
-
Air delivery:
-
29m3/min
-
Working pressure:
-
23bar
-
Cooling method:
-
air cooling
-
driven method:
-
direct driven
-
diesel engine:
-
YC6K400L-K30
-
power:
-
288kw
-
airend:
-
SKY11G194
-
fuel tank:
-
350L
-
Screw oil tank:
-
65L
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
kaishan
-
Model Number:
-
KSZJ-29/23G
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
3.5*1.95*2.03m
-
Weight:
-
4500kg
-
Working Pressure:
-
23bar
-
Air capacity:
-
29m3/min
-
Core Components:
-
airend
-
Product name:
-
air compressor for drill rig
-
Air delivery:
-
29m3/min
-
Working pressure:
-
23bar
-
Cooling method:
-
air cooling
-
driven method:
-
direct driven
-
diesel engine:
-
YC6K400L-K30
-
power:
-
288kw
-
airend:
-
SKY11G194
-
fuel tank:
-
350L
-
Screw oil tank:
-
65L

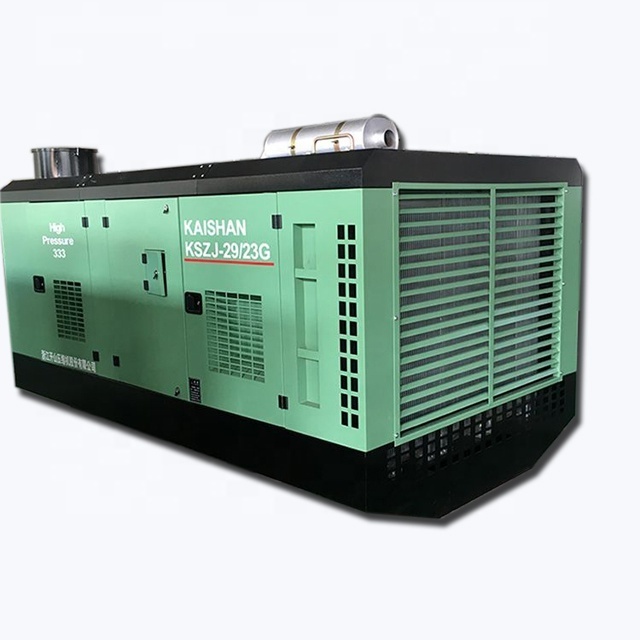

KAISHAN Brand KSZJ-29/23G Diesel Engine air compressor for water well drilling rigs
Characteristic of air compressor for water well drill rig:
1.Low operating sound and less vibration design.Easy serviceability.
2.Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.
3.High efficient Airend:
Large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan.
4.Diesel Engine of Famous Brand:
Select the diesel engine of CUMMINS and YUCHAI brand, satisfy the emission
requirement of Europe, low oil consumption, after sale service system all over China.
5.Good adaptability:
The Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equals to frequency conversion control in motor power screw air compressor.
Application scope of air compressor for water well drill rig:
this 23bar air compressor is especially designed for water conservancy
Advantages of air compressor for drill rig
1.World advanced screw compressor with the features of highly efficiency,low maintenance and long lifetime
2.Microcomputor control system to automatically control the start and top the machine and adjust the air capacity.
3.Conplete protection function with fault alarm and indication
4.Efficient filtering and seperating system.
5.Large oilfter cooler ensures the machines in optimum operation temperature when the ambient temperature
is high.
6.Efficient air-cooled enclosed motor
7.Super low noise.
Technical parameter of air compressor for water well drilling rig
|
Model |
KSZJ-29/23G |
|
Capacity (m3/min) |
29 |
|
Working Pressure (bar) |
23 |
|
Weight(kg) |
4850 |
|
Dimension(mm) |
3750*1950*2870 |
|
Spec&Qty of trailer |
7.50-16*4 |
|
Matched Power |
Yuchai |
|
Model |
YC6 MK400L-K30 |
|
Type |
Air cooled screw air compressor |
|
Suction Way |
Supercharge |
|
Bore*Stroke*Cylinders |
120*145*6 |
|
Exhaust Volume (L) |
9.839 |
|
Rated Speed (r/min) |
1800 |
|
Uninstall Speed (r/min) |
1400 |
|
Rated Power (kW/HP) |
288/400 |
|
Diesel oil capacity (L) |
28 |
|
Fuel tank capacity (L) |
350 |
|
Electrical system voltage (V) |
24 |
|
Head Model |
SKY1 1G194 |
|
Compression stages |
2 |
|
Compressor oil capacity (L) |
65 |
|
Supply valve specifications*Quantity |
G2*1,G3/4*1 |
