Quick Details
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
5g
-
The charging ratio:
-
1c
-
The discharge rate:
-
1c
-
Product name:
-

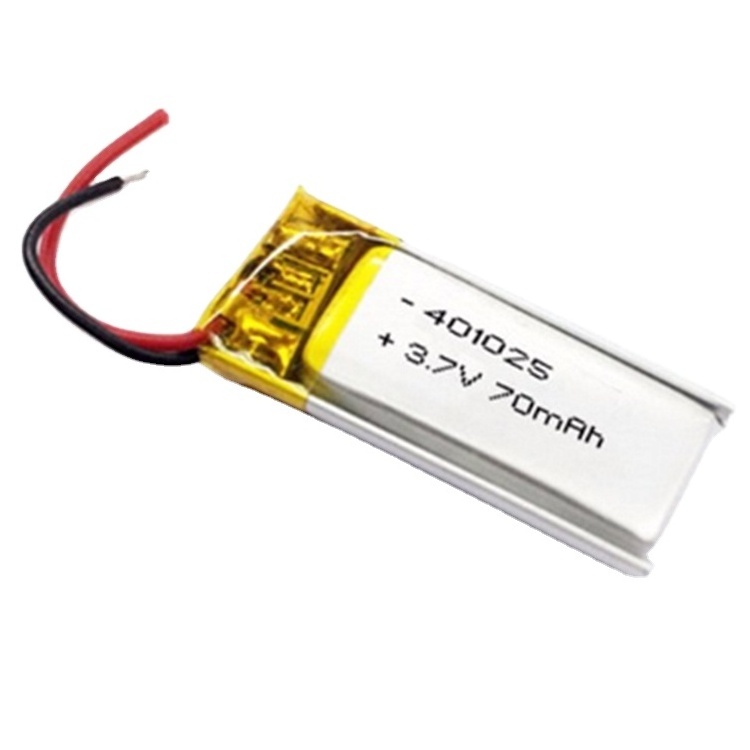

Smallest size lipo li-polymer battery 401025 3.7v 70mah
-
Operating Temperature:
-
-20~60deg C
-
Cycle life:
-
500-1000 Times
-
Certificate:
-
CE/RoHS/UN38.3/MSDS
-
Payment:
-
Paypal.TT.Escrow.Western Union
-
Standard charging current:
-
0.2C-0.5C
-
Size:
-
4.0*10*25mm
Quick Details
-
Application:
-
Power Tools, Home Appliances, Consumer Electronics
-
Brand Name:
-
GEB
-
Model Number:
-
GEB401025
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
5g
-
The charging ratio:
-
1c
-
The discharge rate:
-
1c
-
Product name:
-
Smallest size lipo li-polymer battery 401025 3.7v 70mah
-
Operating Temperature:
-
-20~60deg C
-
Cycle life:
-
500-1000 Times
-
Certificate:
-
CE/RoHS/UN38.3/MSDS
-
Payment:
-
Paypal.TT.Escrow.Western Union
-
Standard charging current:
-
0.2C-0.5C
-
Size:
-
4.0*10*25mm
Inquiry me for more options!
|
No. |
Item |
Rated Performance |
Remark |
|
|
1 |
Rated Capacity |
Typical |
75 mAh |
Standard discharge(0.2C C 5 A) after Standard charge |
|
Minimum |
70mAh |
|||
|
2 |
Nominal Voltage |
3.7V |
|
|
|
3 |
Voltage at end of Discharge |
2.50V |
Discharge Cut-off Voltage |
|
|
4 |
Charging Voltage |
4.2±0.03V |
|
|
|
5 |
AC (1KHz) Impedance New Cell Max.(mW) |
≤ 150 mΩ |
|
|
|
6 |
Weight |
Approx 5g |
|
|
|
7 |
Maximum Continuous Charge Current |
1C |
|
|
|
8 |
Maximum Continuous Discharge Current |
2C |
|
|
|
9 |
Cell Dimension |
Thickness: Max.4.0mm |
Initial Dimension |
|
|
Width: Max.10mm |
||||
|
Length: Max:25mm |
||||
Related product
---------------------------------------------------------------------------------------------------------------------------------
|
|
|
|
Packing Details:
Packing for each item. Standard weight and outer package for all shipping method.
Delivery Details:
* DHL/FedEx/UPS fast express
* Air Shipping/ Sea Shipping. All accepted.
