Quick Details
-
Brand Name:
-
LTJUDI
-
Model Number:
-
IRS-201-2B
-
Max. Current:
-
35A
-
Function:
-
ON-OFF
-
Rated current:
-
20A;15A;35A
-
Rated voltage:
-
125VAC;250VAC;12VDC
-
Base color:
-
black;white;gray;blue
-
Other:
-
4P
-
Certification:
-
tuv
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LTJUDI
-
Model Number:
-
IRS-201-2B
-
Max. Current:
-
35A
-
Function:
-
ON-OFF
-
Rated current:
-
20A;15A;35A
-
Rated voltage:
-
125VAC;250VAC;12VDC
-
Base color:
-
black;white;gray;blue
-
Other:
-
4P
-
Certification:
-
tuv
Product Description
Specification:
1. Rating: 20A 125VAC; 15A 250VAC; 35A 12VDC
2. Contact resistance:35MΩ max
3. Insulation resistance:500VDC 100MΩ min
4. Dielectric strength: 1500VAC, 1Minute
5. Operating temperature: -25℃~+85℃
6. Electrical life: 10,000 cycles
Feature:

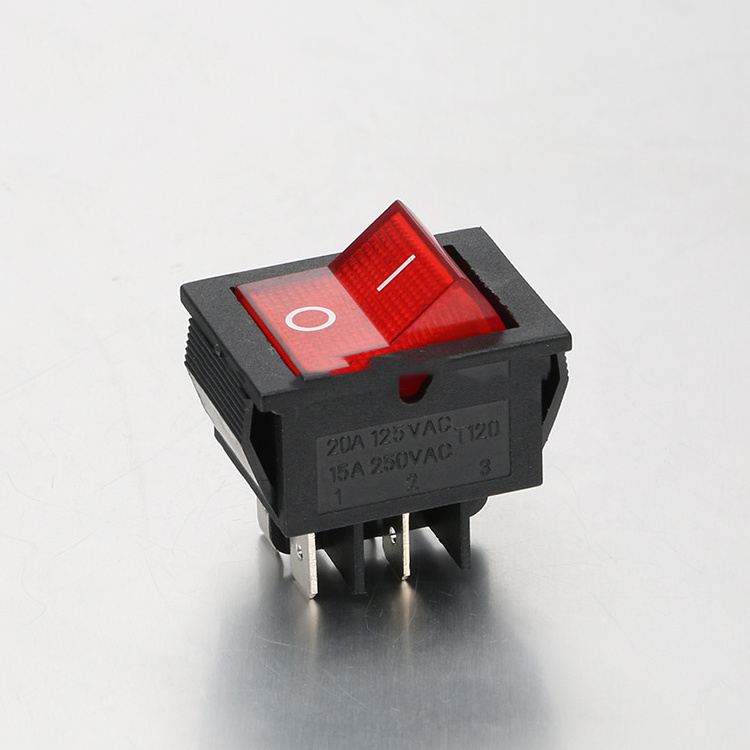

| Product name | 4 pin double pole double throw DPST boat rocker switch |
| Brand name | LTJUDI |
| Model number | IRS-201-2B |
| Rated voltage | 20A 125VAC;15A 250VAC;35A 12VDC |
| Base color | Black;White;Gray;Blue |
| Function | ON-OFF |
| Other | 4P |
