Quick Details
-
Brand Name:
-
Dongbei Tegang
-
Width:
-
20mm-1000mm
-
Length:
-
10mm-12000mm
-
surface:
-
black or polish
-
Type:
-
Steel Plate, Steel Plate
-
Technique:
-
Hot Rolled
-
Surface Treatment:
-
Coated
-
Special Use:
-
High-strength Steel Plate
-
Model Number:
-
S136 Din1.2083
Quick Details
-
Standard:
-
AiSi, ASTM, bs, DIN, GB, JIS
-
Grade:
-
H13
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Dongbei Tegang
-
Width:
-
20mm-1000mm
-
Length:
-
10mm-12000mm
-
surface:
-
black or polish
-
Type:
-
Steel Plate, Steel Plate
-
Technique:
-
Hot Rolled
-
Surface Treatment:
-
Coated
-
Special Use:
-
High-strength Steel Plate
-
Model Number:
-
S136 Din1.2083

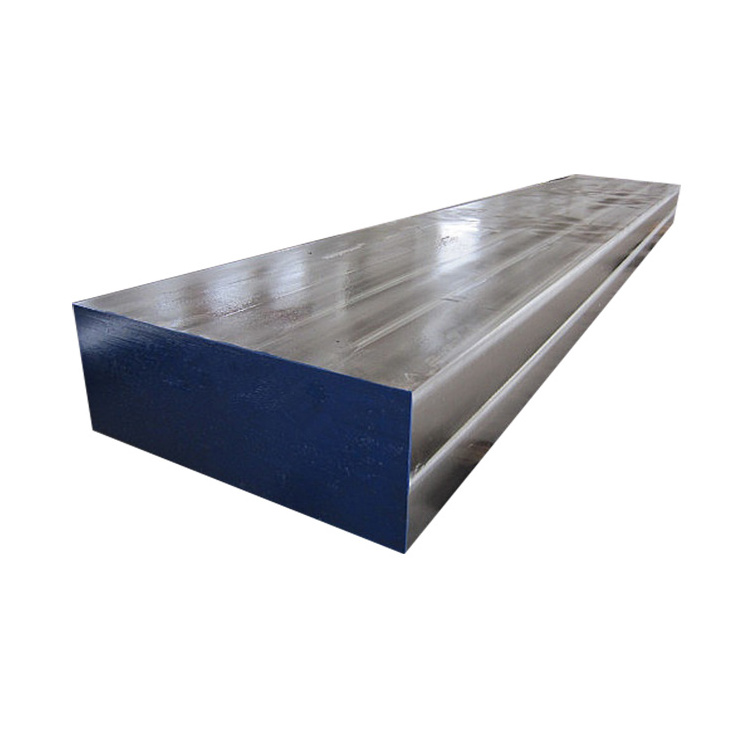

Die Steel S136 Din1.2083 mould steel Raw Material NAK80 Tool Steel Plate
Material:4Cr13SiNiV/FS136/M310/AISI420/ X42Cr13/1.2083
Standards:ASTM,JIS,GB,EN(DIN,BS,NF) Or Per as clients ’ requires.
Product Basic Information:
Material: 1.2083
Chemical composition:
|
|
C |
Si |
Mn |
Cr |
V |
P&S |
|
S136 |
0.34 - 0.42 |
0.60 - 1.30 |
0.2 - 0.7 |
13 - 14.5 |
0.15 - 0.4 |
≤0.03 |
Compared grades(based on usage):
|
GB |
ASTM |
DIN |
|
|
4Cr13 |
420 |
1.2083 |
S136 |
Specifications:
|
Hot Rolled Condition |
Steel plate(mm) |
Mill Name |
||
|
Thickness |
Width |
Length |
||
|
20~95 |
225~2400 |
1800~5800 |
TaiGang, FuShun, TianGong, ChangGang, DaLian |
|
|
105~ 45 0 |
225~2400 |
1600~5800 |
BaoGang |
|
|
Forged Condition |
300~520 |
610~1200 |
2500~4000 |
Local mill with 6000tons fluid forged machine |
Applications:
Used for making the corrosion resistance and wear resistance of high quaity plastic mould, transport plastic mould, like PVC and CD mould
Product Sales Information:
|
Size |
Diameter:10mm-1000mm Length:5000mm-6000mm |
|
Origin place |
Made In China |
|
Delivery Condition |
Hot rolled,cold drawn,forged |
|
Surface require |
Black,grinding,bright,polish |
|
Heat treatment |
Quenched,Tempered,annealed |
|
Packing |
seaworthy packing ,wooden case ,carton,woven bag or at client's requires |
|
Delivery time |
In 10-50 days |
|
Trade Term |
EXW,FOB,CIF |
|
Payments |
T/T or L/C at sight |
|
Port |
China main Port,such as shanghai,Dalian,Shenzhen port. |
|
MOQ |
1 Ton |
Company Main Products:
| Material | Chemical Compositon(%) |
Annealed
hardness |
Secondary
hardness |
||||||||||
| C | Si | Mn | P≤ | S≤ | Cr | W | Mo | V | Ni | Co | |||
| H13 | 0.39 | 1.10 | 0.30 | 0.028 | 0.02 | 5.10 | 0.30 | 1.45 | 0.90 | -- | -- | 235HB | 47-54HRC |
| M2 | 0.85 | 0.38 | 0.35 | 0.03 | 0.03 | 4.10 | 6.00 | 4.80 | 1.85 | -- | 255HB | 63-65HRC | |
| D2 | 1.5 | 0.35 | 0.35 | 0.03 | 0.03 | 12.1 | 0.4 | 0.85 | 0.6 | 255HB | 62-63HRC | ||
| 52100 | 1 | 0.3 | 0.35 | 0.025 | 0.025 | 1.55 | 0.1 | 0.3 | 229HB | 30-50HRC | |||
| 4340 | 0.4 | 0.3 | 0.55 | 0.025 | 0.025 | 0.8 | 0.2 | 1.35 | 269HB | 30-50HRC | |||
| P20 | 0.35 | 0.6 | 0.85 | 0.03 | 0.03 | 1.8 | 0.45 | 29-35HRC | |||||
| 1.2436 | 2.1 | 0.3 | 0.55 | 0.03 | 0.03 | 11.2 | 0.7 | 255HB | 61-63HRC | ||||
| S7 | 0.5 | 0.65 | 0.6 | 0.03 | 0.03 | 3.2 | 1.5 | 0.15 | 229HB | 56-58HRC | |||
