Factory price Quality Spiral Quartz Tube Coiled Glass Pipe For Optical Instruments

Factory price Quality Spiral Quartz Tube Coiled Glass Pipe For Optical Instruments

FOB Reference Price: Get Latest Price

≥1 Pieces

US $88

≥100 Pieces

US $40

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Qudao Quartz

Model Number:: QD-TUBE

Color:: clear

Product Name:: Clear Pyrex Spiral Quartz Glass Tube

Material:: quartz glass

MOQ:: 1PC

Wall Thickness:: 1-3mm

Work Temperature:: 1200C

OEM:: Accept Quartz Tube Customized

Purity:: 99.99%SiO2

Surface:: Polished Treatment

Density:: 2.2g/cm3

Quick Details

Type:: Clear Quartz Pipe

Application:: Chemical Industry

Outside Diameter:: customized

Place of Origin:: Jiangsu, China

Brand Name:: Qudao Quartz

Model Number:: QD-TUBE

Color:: clear

Product Name:: Clear Pyrex Spiral Quartz Glass Tube

Material:: quartz glass

MOQ:: 1PC

Wall Thickness:: 1-3mm

Work Temperature:: 1200C

OEM:: Accept Quartz Tube Customized

Purity:: 99.99%SiO2

Surface:: Polished Treatment

Density:: 2.2g/cm3

Product Description

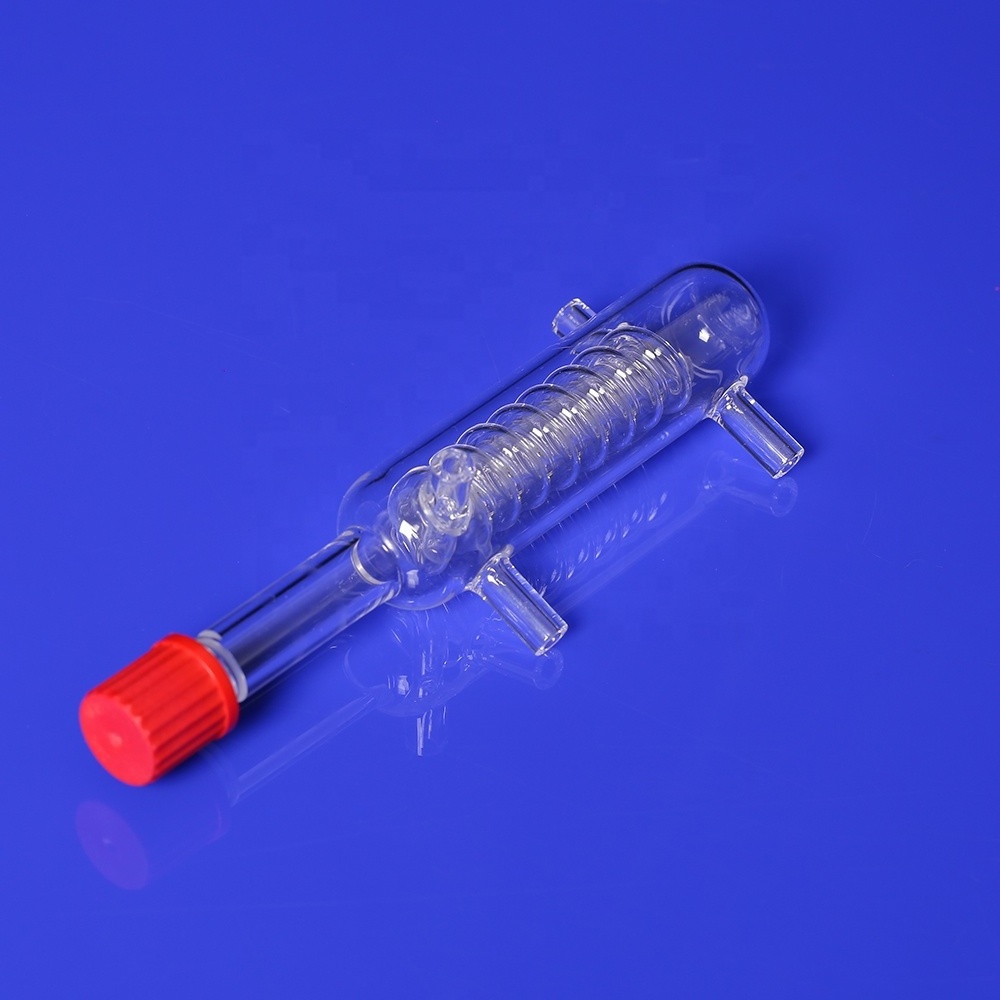

Clear Quartz Glass Coil Tube Quartz Condenser Tube Helix Custom

We are a manufacturer of Quartz glass fused silica all shape tubes. such as arc, slope, slot, sphere, cylinder, cambered and curved surface, and angle all available.

Size&design: Accept customize according to different diameter ,thickness,length or sending your drawing.

Application of quartz tube: Industry, the material of hospital, family, heater, microwave, oven,electroplate, drying, widely apply
to Semiconductor, Lighting, and Electric heating Industrial field and so on.

Outstanding Properties of Quartz Glass Materials

*High purity quartz with silica content 99.99%

*very low thermal couductivity, excellent thermal vibration resistance

* Very high deformation temperature and softening temperature

* High dielectric electric field strength, low dielectric loss, and low conductivity * Optical transmittance in an extremely wide spectral range from ultraviolet to infrared * Very good chemical stability, does not react with water, salt solutions and most acids. * Excellent radiation resistance.

Production flow chart

QUALITY IS OUR FIRST

We will strictly control and supervise each production process of CUTTING,CLEANING,

PROCESSING, INSPECTION AND PACKAGE

Product Paramenters

Property Content	Property Values
SiO2	99.99%
Density	2.2×103 kg/cm³
Hardness	5.5 - 6.5 Mohs' Scale 570 KHN 100
Tensile Strength	4.8x107 Pa (N/mm2) (7000 psi)
Compression Strength	>1.1×109 Pa (160,000 psi)
Coefficient of Thermal Expansion	5.5x10-7 cm/cm·°C (20°C-320°C)
Thermal Conductivity	1.4 W/m·°C
Specific Heat	670 J/kg·°C
Softening Point	1730°C (3146°F)
Annealing Point	1180°C (2156°F)
Strain Point	1075°C (1967°F)
Electrical Resistivity	7x107 ohm cm (350°C)

Recommend Products

Why Choose Us

With the help of high Production technology,we can achieve precise and difficult machining of the arc, slope, slot, sphere, cylinder, cambered and curved surface, and angle of the product. The customer's own design. The minimum aperture can reach 0.8 mm and the minimum geometric tolerance can reach±0.01 mm. Finish, surface, roughness and raw materials can be customized according to customer requirement. Product has high precision and long service.
