Quick Details
-
Product Name:
-
Pixel LED Controller
-
Storage card:
-
SD card
-
Capacity:
-
128MB-32GB
-
Memory card format:
-
FAT/FAT32
-
Number of stored files:
-
up to 32 effect files
-
Support IC:
-
WS2815, 1903, 2811, 2812, 6803, 6812
-
Output:
-
SPI
-
Working temperature:
-
-35~85℃
-
Working power supply:
-
DC 5-24V
-
Run pixels:
-
2048 IC
Quick Details
-
Warranty(Year):
-
1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chicoyo
-
Product Name:
-
Pixel LED Controller
-
Storage card:
-
SD card
-
Capacity:
-
128MB-32GB
-
Memory card format:
-
FAT/FAT32
-
Number of stored files:
-
up to 32 effect files
-
Support IC:
-
WS2815, 1903, 2811, 2812, 6803, 6812
-
Output:
-
SPI
-
Working temperature:
-
-35~85℃
-
Working power supply:
-
DC 5-24V
-
Run pixels:
-
2048 IC

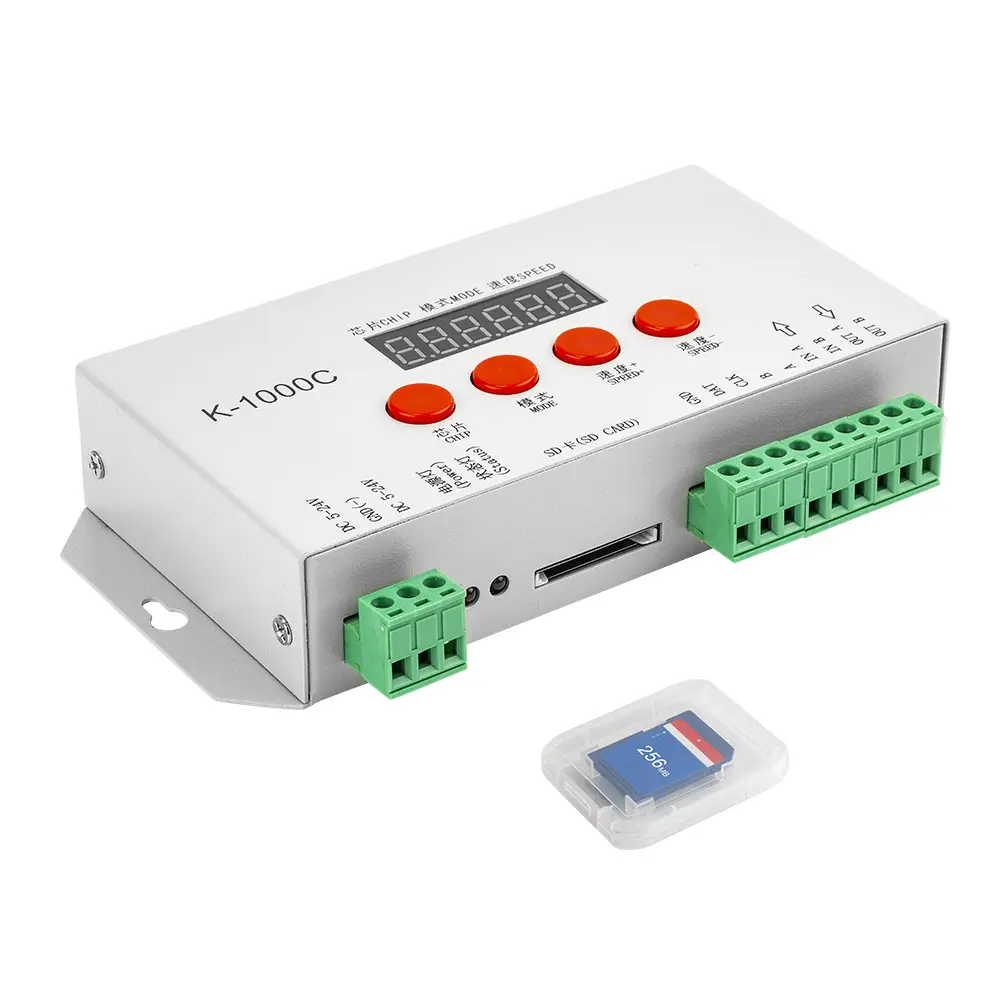

Pixel LED Controller K-1000C Original ws2812 K1000C SPI 2048 Pixels Programmable DMX DMX512 ws2811 SD Card Pixel LED Controller
K-1000C
K-8000C
K-8000CK
Feel free to contact us for OEM ODM services..
Specifications
K-1000C SD card led controller for digital led strip ,pixel led .
Features:
32 levels-65536 levels of gray control, software gamma correction processing. Support points, lines, areas, rules and shaped handles.
Single port output can support 2048 pixels.
Multiple controllers can be cascaded together and work synchronously
Compatible with single-wire or two-wire chips.
Memory card Type: SD card
Capacity: 128MB-32GB
Physical parameters:
Weight: 0.35kg
Temperature: -40-85 degrees
Voltage gate: DC5V-24V
Features: K1000C controller
Power: 3W
Remarks: 1. K-1000-RGBW should be selected for lamps with RGBW four channels.
For a single-channel lamp with a load, K-1000-W needs to be selected. At this time, a channel represents a pixel, and the software
effect is white.
Precautions:
1. Before copying the file to the SD card, the SD card must be formatted first. Note that it must be formatted before each copy.
2. The SD card must be formatted into "FAT" format or "FAT32" format.
3. The SD card cannot be hot swapped, that is, every time the SD card is plugged and unplugged, the controller must be
disconnected from the power supply.
K-1000C SD card led controller for digital led strip ,pixel led .
Features:
32 levels-65536 levels of gray control, software gamma correction processing. Support points, lines, areas, rules and shaped handles.
Single port output can support 2048 pixels.
Multiple controllers can be cascaded together and work synchronously
Compatible with single-wire or two-wire chips.
Memory card Type: SD card
Capacity: 128MB-32GB
Physical parameters:
Weight: 0.35kg
Temperature: -40-85 degrees
Voltage gate: DC5V-24V
Features: K1000C controller
Power: 3W
Remarks: 1. K-1000-RGBW should be selected for lamps with RGBW four channels.
For a single-channel lamp with a load, K-1000-W needs to be selected. At this time, a channel represents a pixel, and the software
effect is white.
Precautions:
1. Before copying the file to the SD card, the SD card must be formatted first. Note that it must be formatted before each copy.
2. The SD card must be formatted into "FAT" format or "FAT32" format.
3. The SD card cannot be hot swapped, that is, every time the SD card is plugged and unplugged, the controller must be
disconnected from the power supply.
Connection Diagram:
