Quick Details
-
Screw Speed (rpm):
-
600 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kerke
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5500*1000*1500mm
-
Power (kW):
-
55
-
Weight:
-
5500 KG
-
plastic extruder color:
-
customizable
-
screw:
-
segment
-
process material:
-
Polymer
-
applicaton:
-
lab extruder
-
screw material:
-
W6Mo5Cr4V2
-
length to diameter ratio:
-
28~40
-
screw diameter:
-
62.4mm
-
spare part:
-
long term available
-
self-cleaning function:
-
excellent
-
performance:
-
Corrosion resistance
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
40:1
-
Screw diameter (mm):
-
50.5
-
Screw Speed (rpm):
-
600 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kerke
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5500*1000*1500mm
-
Power (kW):
-
55
-
Weight:
-
5500 KG
-
plastic extruder color:
-
customizable
-
screw:
-
segment
-
process material:
-
Polymer
-
applicaton:
-
lab extruder
-
screw material:
-
W6Mo5Cr4V2
-
length to diameter ratio:
-
28~40
-
screw diameter:
-
62.4mm
-
spare part:
-
long term available
-
self-cleaning function:
-
excellent
-
performance:
-
Corrosion resistance
Product details

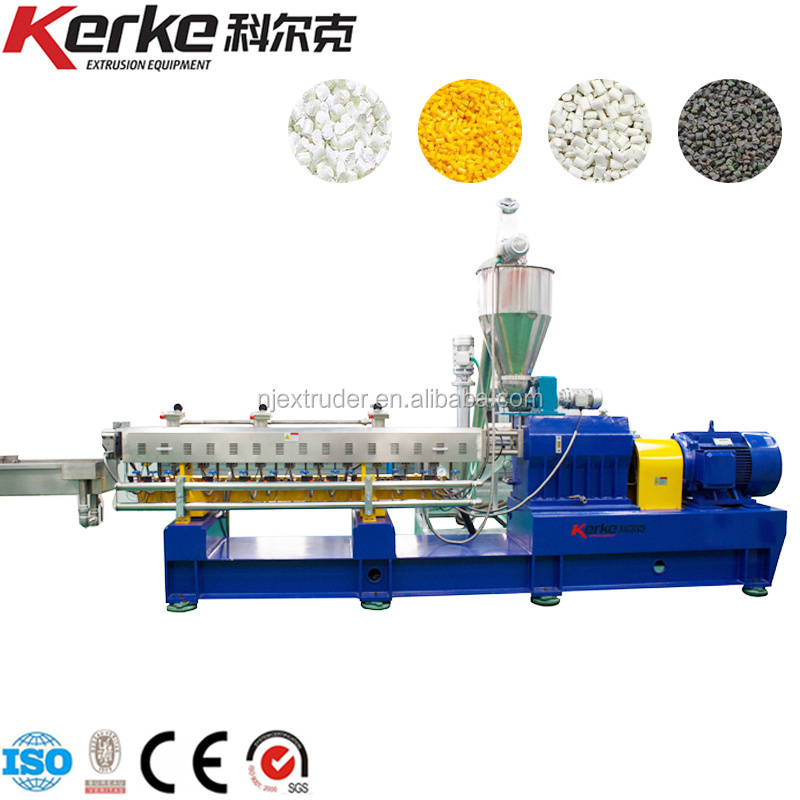

KTE Series Co-rotating Parallel Twin-screw Extruder Features .
1. Screw components designed by computer aids is kneading type, has excellent self-cleaning function, the new kneading block
design effectively avoid the problems of overheating and energy consumption.
2. According to process system and formula requirements, the unit can optimize its L/D ratio, barrel structure, screw array,
venting number and location, feeding method, electrical control methods etc. for rational allocation.
3. Granulation system: water-cooling strand pelletizing, air-cooling die face hot cutting, water ring die face hot cutting,
Eccentric water mist hot cutting, water and underwater die face hot cutting and so on.
4. Application: Filling Modification, glass fiber (carbon fiber) enhance various kinds of master batch, rubber and plastics
compounding, plastic alloys, functional master batch, Various kinds of electric cable material, reactive extrusion.
Devolatilization process, powder coating and so on..
design effectively avoid the problems of overheating and energy consumption.
2. According to process system and formula requirements, the unit can optimize its L/D ratio, barrel structure, screw array,
venting number and location, feeding method, electrical control methods etc. for rational allocation.
3. Granulation system: water-cooling strand pelletizing, air-cooling die face hot cutting, water ring die face hot cutting,
Eccentric water mist hot cutting, water and underwater die face hot cutting and so on.
4. Application: Filling Modification, glass fiber (carbon fiber) enhance various kinds of master batch, rubber and plastics
compounding, plastic alloys, functional master batch, Various kinds of electric cable material, reactive extrusion.
Devolatilization process, powder coating and so on..
Security Protection:
1.coupling can effectively protect the reduction gearbox from extrusion unit overload dangers.
2.water-cooling system and lubrication systems are all real-time online monitoring.
3.drive ead pressure and melt temperature are all equipped with alarm systems.
1.coupling can effectively protect the reduction gearbox from extrusion unit overload dangers.
2.water-cooling system and lubrication systems are all real-time online monitoring.
3.drive ead pressure and melt temperature are all equipped with alarm systems.
Product display
Exhibition
Factory strength
Nanjing Kerke Extrusion Equipment Co., Ltd
is a comprehensive manufacturing and trading company in China. our company is a professional manufacturer of high quality pelletizing extruders for coloring /dyeing and masterbatch production, as well as plastic modification and compounding，plastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption.
We carry out a strict quality management system in accordance with CE requirements. There are over 100 styles of extruder and extruder spare parts and we also can customize for customers' various requirement for extruder spare parts. Our annual production capacity is 200 sets plastic extruder in domestic country! And we also have OEM ability in pelletizing plastic extruder industry in consistence with specific requirement from both national and international customers.
Moreover, we are pleased to introduce our company as one of the leading exporters of parallel twin screw extruder in China.
Our machine types:
1. Co-Rotating Parallel Twin Screw Pelletizing Extruders
2. Single Screw Pelletizing Extruders
3. Die Face Cut (Air Cooling) Pelletizing Extruders
4. Double Stage / Double Degassing Recycling Extruders
5. Crushers, Mixers, Storage Tanks, Vibrators, Granulators, Blowers
6. Extruder spare parts
If you are interested in some of our products, please feel free to visit our website or contact us for more information and pictures. We are looking forward to establishing long-lasting business relationships with you in the near future.
|
Parameter Table of KTE Series Parallel Twin Screw Extruder Unit
|
|
|
|
|
|
|
|
|
|
|||||||||
|
MOdel
|
Screw diameter (mm)
|
Groove depth ratio (mm)
|
Screw speed (RPM)
|
Drive power (KW)
|
Rated torque (N.m)
|
Center height (mm)
|
Length (mm)
|
Gross weight (kg)
|
Job Capacity (Kg/h)
|
|||||||||
|
KTE-20
|
21.7
|
1.55
|
500
|
4~5.5
|
1X72
|
1000
|
4000
|
800
|
2~15
|
|||||||||
|
KTE-25D
|
25.5
|
1.55
|
500
|
7.5~11
|
2X105
|
1000
|
4500
|
1000
|
5~20
|
|||||||||
|
KTE-36A
|
35.5
|
1.51
|
500
|
15~18.5
|
2X176
|
1000
|
3200
|
1500
|
20~60
|
|||||||||
|
KTE-36B
|
35.5
|
1.51
|
500~600
|
18.5~22
|
2X176
|
1000
|
3200
|
1600
|
20~100
|
|||||||||
|
KTE-36D
|
35.5
|
1.51
|
500~600
|
22~37
|
2X300
|
1000
|
3500
|
1700
|
20~150
|
|||||||||
|
KTE-50A
|
50.5
|
1.55
|
500
|
45~55
|
2X430
|
1000
|
4500
|
2800
|
80~150
|
|||||||||
|
KTE-50B
|
50.5
|
1.55
|
500~600
|
55~75
|
2X600
|
1000
|
4500
|
2800
|
80~200
|
|||||||||
|
KTE-50D
|
50.5
|
1.55
|
300~800
|
75~90
|
2X656
|
1000
|
4800
|
2800
|
100~300
|
|||||||||
|
KTE-52B
|
51.4
|
1.58
|
500~600
|
55~75
|
2X620
|
1000
|
4500
|
3000
|
80~200
|
|||||||||
|
KTE-52D
|
51.4
|
1.58
|
500~600
|
75~110
|
2X656
|
1000
|
4800
|
3000
|
100~400
|
|||||||||
|
KTE--60A
|
59.4
|
1.37
|
500
|
75~90
|
2X720
|
1000
|
5400
|
4000
|
100~350
|
|||||||||
|
KTE--60B
|
59.4
|
1.37
|
500~600
|
75~90
|
2X750
|
1000
|
5400
|
5000
|
200~450
|
|||||||||
|
KTE--65A
|
62.4
|
1.55
|
500
|
75~90
|
2X720
|
1000
|
5400
|
5000
|
100~350
|
|||||||||
|
KTE--65B
|
62.4
|
1.55
|
500~600
|
75~90
|
2X750
|
1000
|
5400
|
5000
|
200~450
|
|||||||||
|
KTE--65D
|
62.4
|
1.55
|
300~800
|
90~132
|
2X790
|
1000
|
5800
|
5000
|
350~600
|
|||||||||
|
KTE--70B
|
69
|
1.44
|
500~600
|
110~132
|
2X1280
|
1000
|
6400
|
6500
|
300~500
|
|||||||||
|
KTE--75A
|
71
|
1.51
|
300~800
|
110~132
|
2X1050
|
1000
|
6400
|
6000
|
300~500
|
|||||||||
|
KTE--75B
|
71
|
1.51
|
500~600
|
132~160
|
2X1280
|
1000
|
6400
|
6400
|
300~800
|
|||||||||
|
KTE--75D
|
71
|
1.51
|
300~800
|
160~250
|
2X1320
|
1000
|
6800
|
7000
|
500~1000
|
|||||||||
|
KTE--85B
|
85
|
1.54
|
500~600
|
200~250
|
2X1910
|
1100
|
7000
|
8000
|
550~1000
|
|||||||||
|
KTE--85D
|
85
|
1.54
|
500~800
|
250~315
|
2X2400
|
1100
|
7000
|
10000
|
800~1500
|
|||||||||
|
KTE--95B
|
93
|
1.52
|
500~600
|
280~315
|
2X3000
|
1100
|
7800
|
12000
|
800~1500
|
|||||||||
|
KTE--95D
|
93
|
1.51
|
500~800
|
315~750
|
2X4500
|
1100
|
7800
|
15000
|
1000~2000
|
|||||||||
|
KTE--135B
|
135
|
1.55
|
500~600
|
500~750
|
2X4800
|
1200
|
9000
|
30000
|
1500~3000
|
|||||||||
|
KTE--135D
|
135
|
1.55
|
500~800
|
750~1800
|
2X10800
|
1200
|
9000
|
34000
|
1500~4000
|
|||||||||
Application area
Sale Service
Before-Sale
1. Introduce products and Applications details
2. Recommend suitable solution
3. Provide with reference in formation
4. Offer lab for test
In production
1. Provide with layout and engineering conditions
2. Inform the project processing status
3. Offer other documents
After-sale
1. Provide with installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support for new application
