Quick Details
-
name:
-
wood pellet hammer mill
-
processed raw material:
-
wood,Wheat Stalk,sunflower,wood chips,soybean shell,cotton stalk,etc.
-
spare parts:
-
screen and hammer
-
Bearing:
-
Imported
-
Motor brand:
-
Siemens
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380 V
-
Weight (KG):
-
3500
-
name:
-
wood pellet hammer mill
-
processed raw material:
-
wood,Wheat Stalk,sunflower,wood chips,soybean shell,cotton stalk,etc.
-
spare parts:
-
screen and hammer
-
Bearing:
-
Imported
-
Motor brand:
-
Siemens
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
Product Description

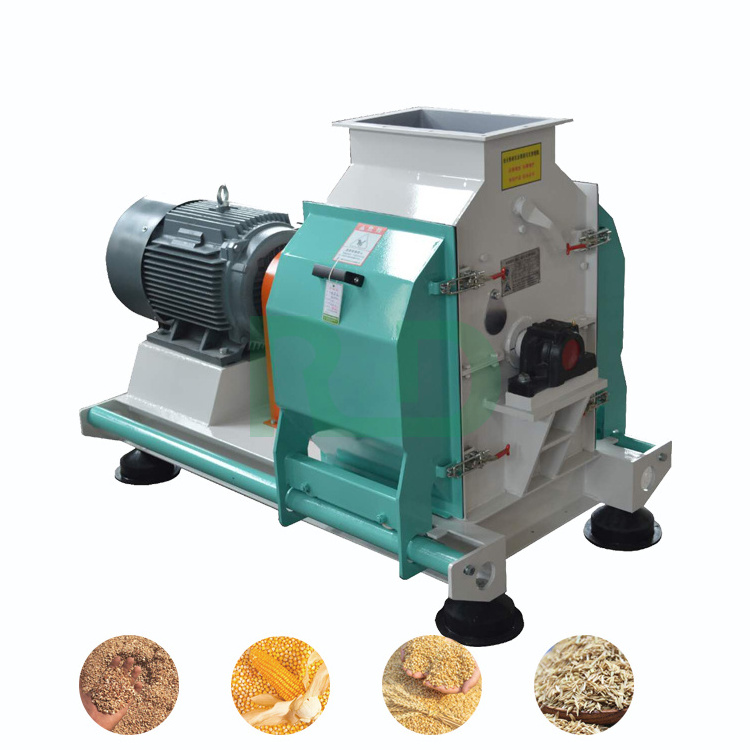

Large capacity hammer mill SFSP series Siemens motor biomass wood chips crusher rice husk grinder wood pellet hammer mill
wood pellet hammer mill
This hammer mill is applicable for the material after chipping (thickness≤10mm), and it should be fiber material with big moisture and oiliness and also applicable for coarse grinding.
1. Rotor is with dynamic balance test with high accuracy (G6.3 grade), vibration is small and the lifetime is long.
2. Knife, screen and pin shaft been specially heat treated are with long lifetime and high grinding efficiency.
Operation door is equipped with self-lock device which is convenient, flexible, safe and stable.
1. Rotor is with dynamic balance test with high accuracy (G6.3 grade), vibration is small and the lifetime is long.
2. Knife, screen and pin shaft been specially heat treated are with long lifetime and high grinding efficiency.
Operation door is equipped with self-lock device which is convenient, flexible, safe and stable.
|
Model
|
SFSP66X45
|
SFSP66X60
|
SFSP66X80
|
SFSP66X100
|
SFSP68X120
|
|
Rotor dia. (mm)
|
660
|
660
|
660
|
660
|
660
|
|
Main shaft speed (rpm)
|
2950
|
2950
|
2950
|
2950
|
2950
|
|
Knife linear speed (m/s)
|
102
|
102
|
102
|
102
|
102
|
|
Width of grinding chamber (mm)
|
450
|
600
|
800
|
1000
|
1200
|
|
Qty. of knife
|
48
|
64
|
84
|
116
|
144
|
|
Power (KW)
|
45/55
|
75/90
|
90/110
|
110/132
|
160/200
|
|
Capacity (t/h)
|
0.8-2
|
2-3
|
3-4
|
4-5
|
5-6
|
The crusher equipment is with imported FAG or SKF bearing,Siemens motor,hammers have tungsten carbide treatment with longer usage life and stable working.The equipment will have test running in the workshop without raw material before painting to make sure every machine is good working before shipment.
