Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SCK
-
Dimension(L*W*H):
-
Custom
-
Weight:
-
45 KG
-
Working Temperature Range:
-
50 - 3000 ℃
-
Product name:
-
high quality induction heating power
-
Keywords:
-
Multifunctional desktop induction heating power supply
-
Feature:
-
Heating/annealing/sintering/environmental protection
-
Application:
-
Induction furnace/casting furnace/rapid annealing furnace
-
Power:
-
6KW-100KW(optional)
-
operating ambient temperature:
-
20C-45C
Quick Details
-
Type:
-
Electric Heater
-
Power Source:
-
Electric
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SCK
-
Dimension(L*W*H):
-
Custom
-
Weight:
-
45 KG
-
Working Temperature Range:
-
50 - 3000 ℃
-
Product name:
-
high quality induction heating power
-
Keywords:
-
Multifunctional desktop induction heating power supply
-
Feature:
-
Heating/annealing/sintering/environmental protection
-
Application:
-
Induction furnace/casting furnace/rapid annealing furnace
-
Power:
-
6KW-100KW(optional)
-
operating ambient temperature:
-
20C-45C

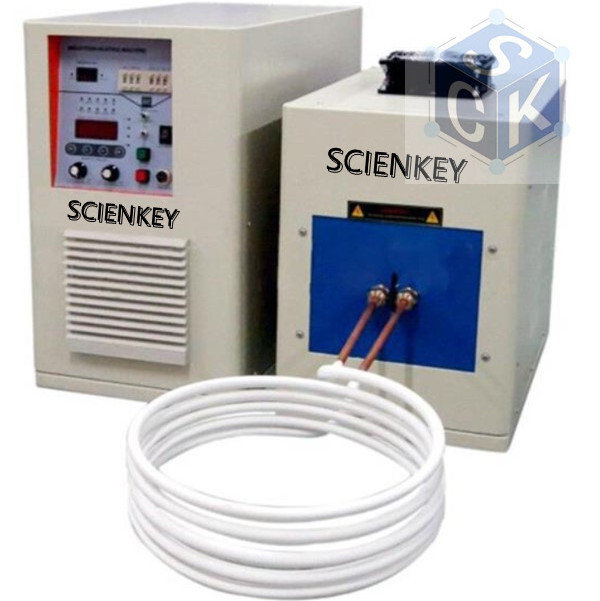

Desktop High-Frequency 6kw induction heating system for vacuum induction furnace
Dual Station 15KW Induction Heater is designed for a material research lab to quickly melt and perform heat treating to metallic materials up to 1kg. The 2m long power cable allows the heating station and the control station to be located up to 2m from each other for operation safety.
(factory Support customization, including accessories and consumables, please contact our staff for details.)
specifications
|
Working Voltage |
180 - 245 V AC, 50-60 Hz, Single Phase |
|
Max. Output Power |
6KW |
|
Input Current |
5 - 30 Amp (50A breaker required) Adjustable with digital display |
|
Output Frequency |
100 - 500 kHz |
|
Duty Cycle |
100% |
|
Max. Sample Weight |
100g |
|
Timer Control |
Automatic timer control or Manual control selectable Manual Control: by Foot Pedal Automatic Heating Time: 1-99 Seconds Automatic Dwell Time: 1-99 Seconds Automatic Colling Time: 1-99 Seconds |
|
Air Cooling |
Rear Fan |
|
Water Cooling |
Flowrate: > 3 L/Min Pressure: ≥ 0.2 MPa (29 Psi) Tap water is acceptable, but using Recirculating Water Chiller is highly recommended. Protection: Over pressure and over temperature switch |
|
Water protection |
Over pressure and over temperature switch |
|
Induction Coil |
Made by 5mm Dia. Copper tube (One Coil 20mmDia. x 45mmH is included) Customized copper coil is available at an extra cost ($300/ea) upon request |
|
Product Dimensions |
520mm(L) x 240mm(W) x 500mm(H) |
|
Warranty |
2 Years limited warranty with lifetime support |
|
Dimensions |
40"(L) x 30"(W) x 30"(H) |
|
Weight |
45 kg (100 lbs) |
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Professional factory : We are manufacturer, specializing in laboratory equipment.
