Quick Details
-
Model Number:
-
C370A
-
Name:
-

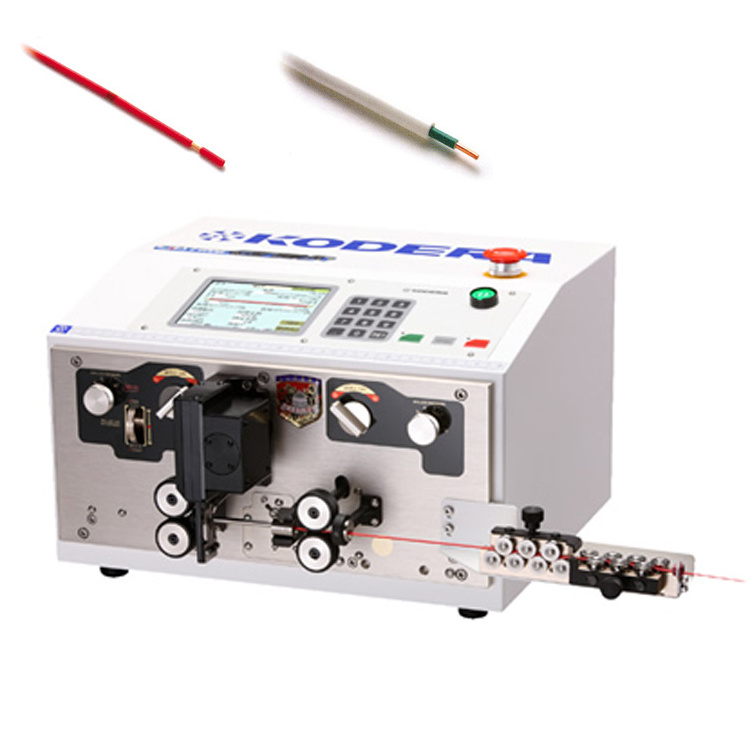

Automatic Wire Cutting Stripping Machine
-
Display:
-
Man-Machine Interface
-
Processing Range:
-
0.03-5.5mm²
-
Wire Type:
-
AVSS,VSF, IV, KV, UL,Teflon , Glass Wire, etc
-
Wire Size:
-
AWG#10(5.5sq)~AWG#32(0.03sq)
-
Cutting Length:
-
0.1mm~99,999mm
-
Wire Feed Speed:
-
Voltage
-
Power Supply:
-
AC100V or AC200V~240V(Single Phase)50Hz/60Hz
-
Dimension:
-
430*450*270mm
-
N.W:
-
26kg
Quick Details
-
Usage:
-
Cutting and Stripping
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KODERA
-
Model Number:
-
C370A
-
Name:
-
Automatic Wire Cutting Stripping Machine
-
Display:
-
Man-Machine Interface
-
Processing Range:
-
0.03-5.5mm²
-
Wire Type:
-
AVSS,VSF, IV, KV, UL,Teflon , Glass Wire, etc
-
Wire Size:
-
AWG#10(5.5sq)~AWG#32(0.03sq)
-
Cutting Length:
-
0.1mm~99,999mm
-
Wire Feed Speed:
-
Voltage
-
Power Supply:
-
AC100V or AC200V~240V(Single Phase)50Hz/60Hz
-
Dimension:
-
430*450*270mm
-
N.W:
-
26kg
Specification
|
Brand Name
|
KODERA
|
|
|
Model Number
|
C370A
|
|
|
OUTER DIMENSIONS
|
W430mm ×D450mm ×H270mm
|
|
|
WEIGHT
|
26kg
|
|
|
POWER SUPPLY
|
AC100V or AC200V~240V(Single Phase)50Hz/60Hz
|
|
|
POWER CONSUMPTION（100V）
|
47W（Rated）250W（Max）
|
|
|
CUTTING LENGTH
|
0.1mm～99,999mm
|
|
|
CUTTING TOLERANCES
|
±(0.1+0.0005×L)mm※2 L : indicates a cutting length.
|
|
|
STRIPPING LENGTH
|
FRONT END 0.1～30mm
|
|
|
|
REAR END 0.1～30mm
|
|
|
APPLICABLE WIRES
|
TYPE AVSS,VSF, IV, KV, UL,Teflon , Glass Wire, etc
|
|
|
Knife Blade
|
SIZE AWG#10（5.5sq）～AWG#32（0.03sq）※2
|
|
|
Dimension
|
O.D. Max φ6mm※2
|
|
|
WIRE FEED SPEED
|
Variable
|
|
|
CUTTER MATERIAL
|
Ultra fine particle alloy
|
|
|
DRIVE SUPPLY
|
Stepping pulse motor
|
|
|
※2. Depending on the wire type.
|
|
|
Product Description
C370A
AWG#10(5.5sq)~AWG#32(0.03sq)
The compact body provides an optimum speed for mass production and ensures a high level of productivity.
A very high performance even in a small-scale production of many diversified sized of wires.
|
Processing capacity (Actual data)
< Number of processed wires per hour >
|
|
Both ends stripping 3mm
Setting of speed : 9
Thin wire mode
Wire : UL1007／AWG#22
|
|
|
Total Length
|
Pieces
|
Core diameter : 0.75mm
|
|
|
50mm
|
10,500
|
Blade move back : 0.15mm
|
|
|
100mm
|
10,300
|
Both ends stripping : 3mm
|
|
|
200mm
|
9,100
|
Program : A200
|
|
|
300mm
|
8,700
|
|
|
|
500mm
|
7,600
|
|
|
|
800mm
|
6,400
|
|
|
|
1000mm
|
5,800
|
|
|
|
1500mm
|
4,700
|
|
|
|
2000mm
|
3,900
|
|
|
|
3000mm
|
3,000
|
|
|
Sample
