Quick Details
-
Brand Name:
-
perpetual
-
Model Number:
-
60-63mm
-
Name:
-
Super Clamp Malleable Iron 1 inch Round PPR Pipe Clamps
-
Type:
-
3 4 6 inch Heavy Duty Metal Welding Pipe Clamps
-
Band Width:
-
18/20/22/24/26mm
-
Size:
-
17-19mm to 260-280mm
-
Function:
-
Pipe Fastner
-
Certification:
-
ISO9001:2008
-
Delivring Port:
-
Qingdao/Xingang/Shanghai/Ningbo
-
Packing:
-
Plastic Bag + Carton
-
Delivery time:
-
25-30 Days
-
Service:
-
OEM .ODM .Customized
Quick Details
-
Measurement system:
-
Metric
-
Material:
-
Stainless steel, Galvanized Steel
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
perpetual
-
Model Number:
-
60-63mm
-
Name:
-
Super Clamp Malleable Iron 1 inch Round PPR Pipe Clamps
-
Type:
-
3 4 6 inch Heavy Duty Metal Welding Pipe Clamps
-
Band Width:
-
18/20/22/24/26mm
-
Size:
-
17-19mm to 260-280mm
-
Function:
-
Pipe Fastner
-
Certification:
-
ISO9001:2008
-
Delivring Port:
-
Qingdao/Xingang/Shanghai/Ningbo
-
Packing:
-
Plastic Bag + Carton
-
Delivery time:
-
25-30 Days
-
Service:
-
OEM .ODM .Customized

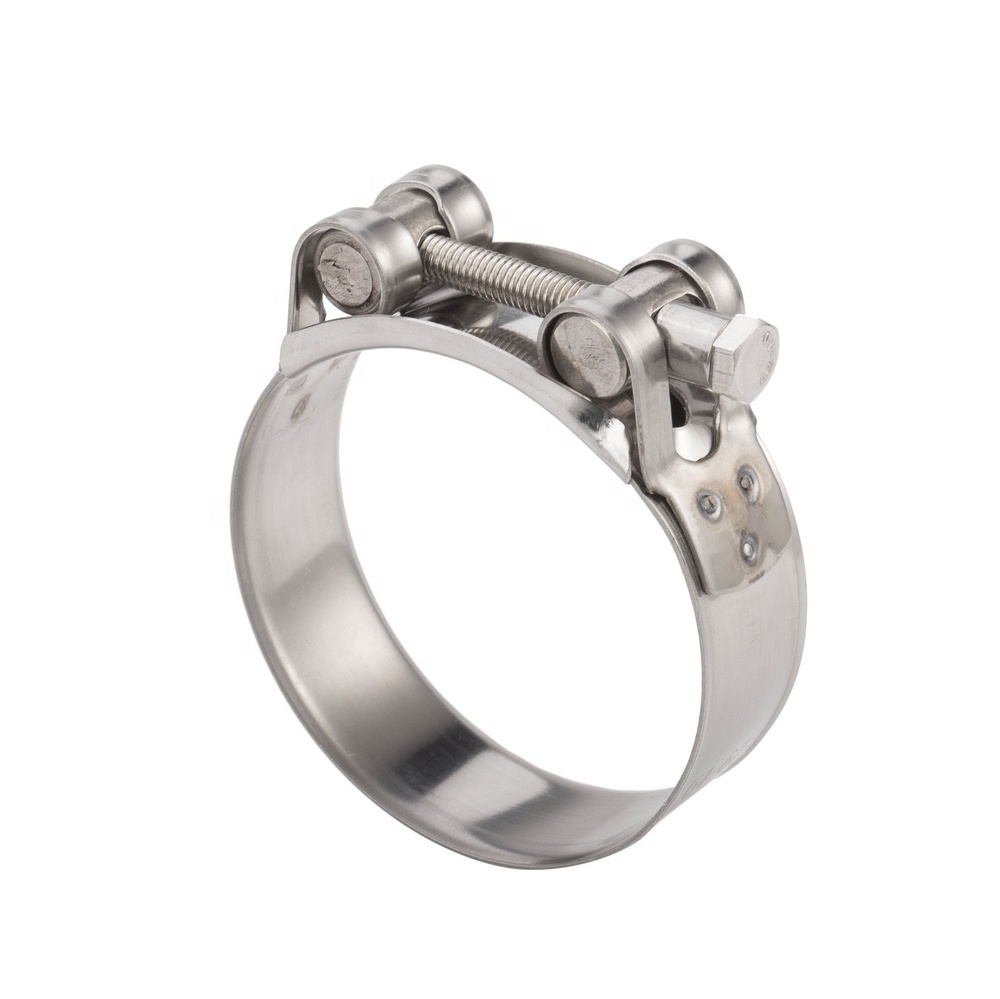

Super Clamp Set Malleable Iron 1 inch Round PPR Pipe Clamps 3 4 6 inch Heavy Duty Metal Welding Pipe Clamps Qingdao:
1)Sizes: 17-19mm to all
2) Band Width: 18mm, 20mm, 22mm, 24mm
3)Material: Zinc-plated Steel, 201/300 series Stainless Steel
4) Any risk of damage to the hose is eliminated by tilted and smooth edge
| Size | Band Width | Band Thickness,mm | Screw | Break Torgae | |
| mm | mm | W1 | W2/W4 | mm | Nm |
| 17-19 | 18 | 0.6 | 0.4 | M5*40 | 5 |
| 20-22 | 18 | 0.6 | 0.4 | M5*40 | 5 |
| 23-25 | 18 | 0.6 | 0.6 | M5*40 | 5 |
| 26-28 | 18 | 0.6 | 0.6 | M5*40 | 5 |
| 29-31 | 20 | 0.8 | 0.6 | M6*50 | 15 |
| 32-35 | 20 | 0.8 | 0.6 | M6*50 | 15 |
| 36-39 | 20 | 0.8 | 0.6 | M6*50 | 15 |
| 40-43 | 20 | 0.8 | 0.6 | M6*50 | 15 |
| 44-47 | 22 | 1.2 | 0.8 | M6*55 | 15 |
| 48-51 | 22 | 1.2 | 0.8 | M6*55 | 15 |
| 52-55 | 22 | 1.2 | 0.8 | M6*55 | 15 |
| 56-59 | 22 | 1.2 | 0.8 | M6*55 | 15 |
| 64-67 | 22 | 1.2 | 0.8 | M6*55 | 15 |
| 68-73 | 24 | 1.5 | 0.8 | M8*70 | 25 |
| 74-79 | 24 | 1.5 | 0.8 | M8*70 | 25 |
| 80-85 | 24 | 1.5 | 0.8 | M8*70 | 25 |
| 86-91 | 24 | 1.5 | 0.8 | M8*70 | 25 |
| 92-97 | 24 | 1.5 | 0.8 | M8*70 | 25 |
| 98-103 | 24 | 1.5 | 0.8 | M8*70 | 25 |
| 104-112 | 24 | 1.5 | 0.8 | M8*70 | 25 |
| 122-130 | 24 | 1.5 | 0.8 | M8*70 | 25 |
| 131-139 | 26 | 1.7 | 1 | M10*90 | 40 |
| 140-148 | 26 | 1.7 | 1 | M10*90 | 40 |
| 149-161 | 26 | 1.7 | 1 | M10*100 | 40 |
| 175-187 | 26 | 1.7 | 1 | M10*100 | 40 |
| 188-200 | 26 | 1.7 | 1 | M10*100 | 40 |
| 201-213 | 26 | 1.7 | 1 | M10*100 | 40 |
| 214-226 | 26 | 1.7 | 1 | M10*100 | 40 |
| 227-239 | 26 | 1.7 | 1 | M10*100 | 40 |
| 240-252 | 26 | 1.7 | 1 | M10*100 | 40 |
|
|
W1 |
W2 |
W4 |
|
Band |
galvanized steel |
201, 301, 304 stainless steel |
201, 301, 304 stainless steel |
|
Trunnion |
galvanized steel |
galvanized steel |
201, 301, 304 stainless steel |
|
Bolt |
galvanized steel |
galvanized steel |
201, 301, 304 stainless steel |
