- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
LEANSEN
-
Model Number:
-
DJG-S-400-24
-
Output Frequency:
-
90KHZ
-
Output Current:
-
16.7A
-
Protections:
-
Shortcuit Overtemp Overload Overvolt
-
Efficiency:
-
>85%
-
Type:
-
Constant Voltage
-
Ripple/noise:
-
<80mv
-
Warranty:
-
2 Years
-
Certification:
-
CE RoHS ISO9001 FCC
-
Material:
-
Aluminum Housing
-
Size:
-
224*59*28mm
Quick Details
-
Input Voltage:
-
110-240v AC
-
Output Voltage:
-
24V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LEANSEN
-
Model Number:
-
DJG-S-400-24
-
Output Frequency:
-
90KHZ
-
Output Current:
-
16.7A
-
Protections:
-
Shortcuit Overtemp Overload Overvolt
-
Efficiency:
-
>85%
-
Type:
-
Constant Voltage
-
Ripple/noise:
-
<80mv
-
Warranty:
-
2 Years
-
Certification:
-
CE RoHS ISO9001 FCC
-
Material:
-
Aluminum Housing
-
Size:
-
224*59*28mm
Product Description
Specification
|

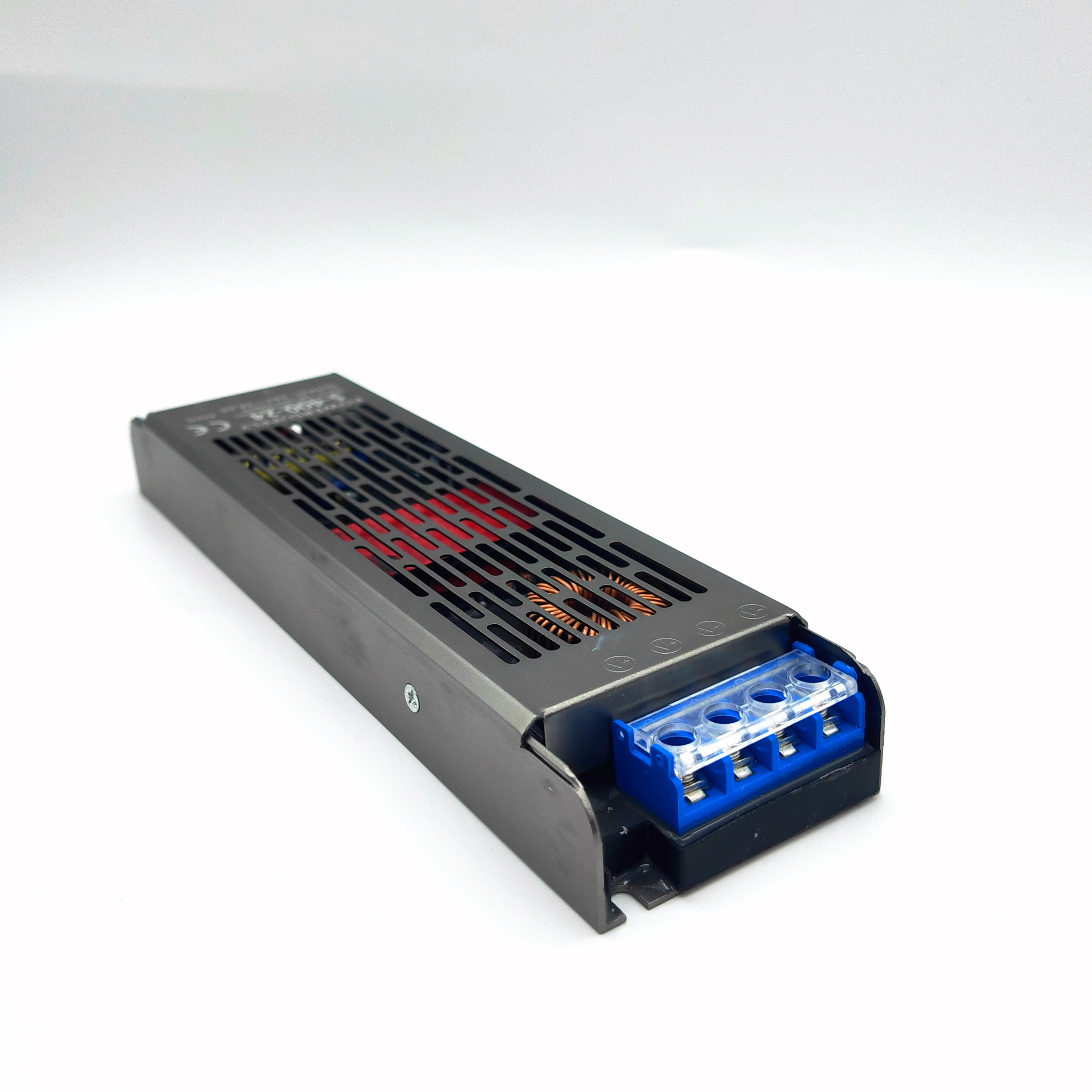

LIANSHENG DJG 24V-400W Switching Power supply
|
|
|
||
|
DC Output
|
DC Voltage
|
24v
|
||
|
|
Power
|
400W-26.7A
|
||
|
|
Ripple&Noise
|
80MV
|
||
|
|
Setup,Rise Time,Hold Up Time
|
200ms,50ms, 20ms/230VAC
|
||
|
|
DC Adjustable Range
|
±10% Rated Voltage
|
||
|
AC Input
|
AC Voltage Range
|
110-220VAC
|
||
|
|
Frequency Range
|
90KHZ
|
||
|
|
Efficiency
|
>85%
|
||
|
|
AC Current
|
0.65A/115V 0.4A/230V
|
||
|
|
AC Inrush Current
|
20A/115V 40A/230V
|
||
|
|
Leakage Current
|
< 0.5mA /240VAC
|
||
|
Protection
|
Over-load
|
105%-150% hiccup mode,Auto-recovery
|
||
|
|
Over-voltage
|
115%-135% Cut Off the Output,Auto-recovery
|
||
|
|
Over-temp
|
Shut down O/P voltage, Auto-recovery
|
||
|
Environment
|
Working temp
|
-10~ +60C° (Refer to output load derating curve)
|
||
|
|
Working Humidity
|
20 ~ 90% RH, non-condensing
|
||
|
|
Storage Temp
|
-10~ +60C°
|
||
|
|
Storage Humidity
|
10 ~ 95% RH
|
||
|
Safety
|
Isolation Resistance
|
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
|
||
|
|
Withstand Voltage
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
||
|
|
Safety standards
|
CE,RoHS,FCC,ISO9001
|
||
|
|
|
|
||
Installation Instructions
Packing & Delivery
Application
