Quick Details
-
Voltage:
-
380V or customer-made
-
Dimension(L*W*H):
-
see different models
-
Weight (KG):
-
2600
-
Power (kW):
-
7.5
-
Name:
-
Double roller press machine
-
Type:
-
Granules Making Equipments
-
Product Name:
-
Compound fertilizer pellet press machines
-
Raw material:
-
Chemical and fertilizer dry powder
-
Capacity:
-
1-3T/H
-
Application:
-
Fertilizer Pellet Making Machine
-
Usage:
-
Making Fertilizer Granules
-
Installation:
-
Under Engineer Guide
-
Weight:
-
see different models
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Output (kg/h):
-
2000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HuaQiang
-
Voltage:
-
380V or customer-made
-
Dimension(L*W*H):
-
see different models
-
Weight (KG):
-
2600
-
Power (kW):
-
7.5
-
Name:
-
Double roller press machine
-
Type:
-
Granules Making Equipments
-
Product Name:
-
Compound fertilizer pellet press machines
-
Raw material:
-
Chemical and fertilizer dry powder
-
Capacity:
-
1-3T/H
-
Application:
-
Fertilizer Pellet Making Machine
-
Usage:
-
Making Fertilizer Granules
-
Installation:
-
Under Engineer Guide
-
Weight:
-
see different models
-
After-sales Service Provided:
-
Engineers available to service machinery overseas

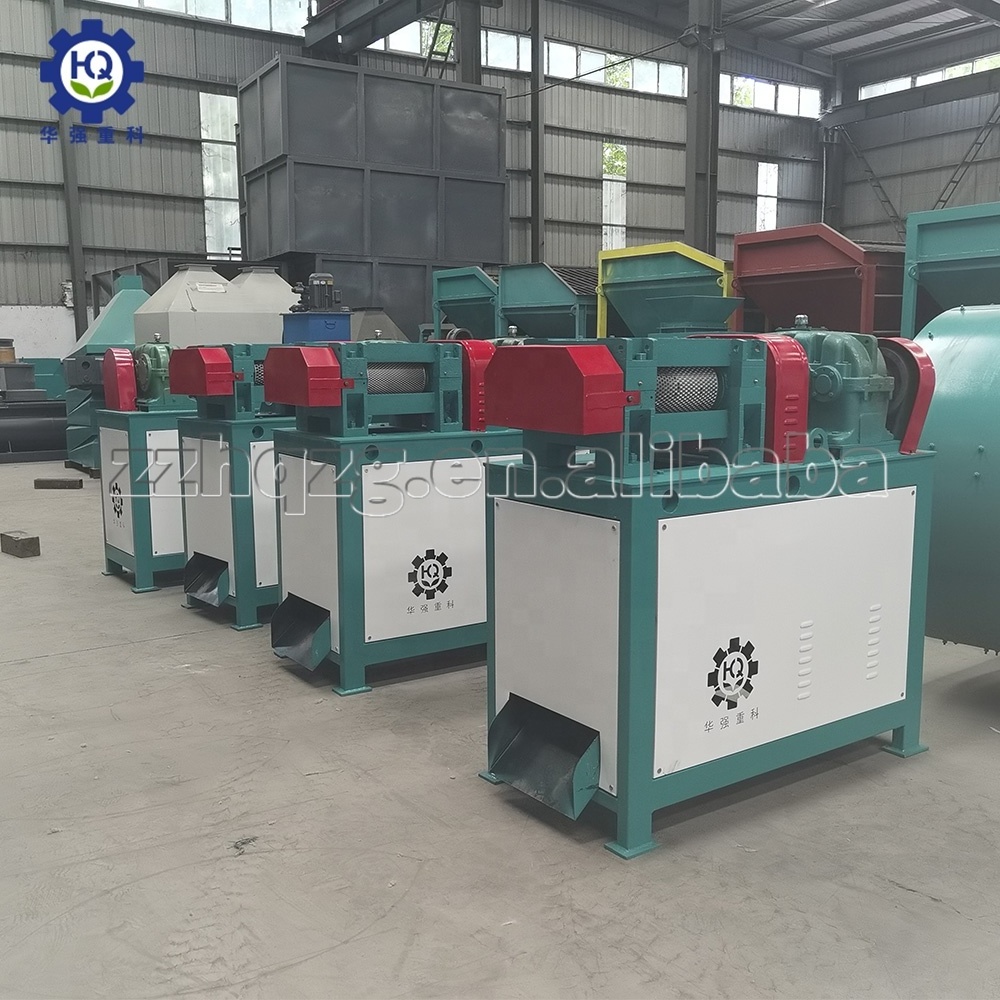

Double roller NPK compound fertilizer pellet press machines
Features of double roller NPK compound fertilizer pellet press machines
1. Once forming, no dying process, normal temperature granulating, beautiful and evenly appearance granules.
2.Low power consumption, low noise.
3.Structure simple.
4.Easy operation and maintenance.
5.Long service life.
6.Quick profit, good economic returns
The machine has won the users praise after coming into the market.
Description of double roller NPK compound fertilizer pellet press machines
1. Compound fertilizer pellet press machines of main components, such as the roller body, is made of a new type of metal which is anticorrosive\waerable and impact resistance.
2. Compound fertilizer pellet press machines not only have the above features but also upgrades its rack, the bearing frame body is made of high quality and anticorrosive cast materials so that it becomes more stable and extends the roller’s service life.
3.1) Compound fertilizer pellet press machines wide for materials, such as fertilizer, feed, chemical industry.
2) Compound fertilizer pellet press machines especially good adaptability for rare earth, metallurgy, coal, biologics environmental protection.
3)To some extent, compound fertilizer pellet press machines fill the gap and leading the domestic advanced level. On the other hand, compound fertilizer pellet press machines also the promotion of environmental projects.
Specification of double roller NPK compound fertilizer pellet press machines
| Double roller NPK compound fertilizer pellet press machines | |||||||
| Model |
Capacity (t/h) |
Power (kW) |
Roller Specification(mm) | Feed Size(mm) | Product Specification(mm) | Material Moisture(%) | Deceleration Machine |
| DZJ-Ⅰ1.0 | 1-1.5 | 15 | 150*220 | 0.5 | 2.5-10 | 5%-15% | ZQH350 |
| DZJ-Ⅰ2.0 | 1.5-2.5 | 18.5 | 150*300 | 0.5 | 2.5-10 | 5%-15% | ZQH400 |
| DZJ-Ⅰ3.0 | 2.5-3.5 | 22 | 186*300 | 0.5 | 2.5-20 | 5%-15% | ZQH400 |
| DZJ-Ⅰ4.0 | 3.5-4.5 | 37 | 300*300 | 0.5 | 2.5-30 | 5%-15% | ZQH500 |
