Quick Details
-
Model Number:
-
APEV11-80
-
Frequency:
-
100-1000HZ
-
Power range:
-
20-200kw
-
torque range:
-
70-3000 N.m
-
Rated battery Voltage:
-
320VDC, or 540VDC
-
Vehicle Type:
-
passenger car, truck, bus
-
Effenciency:
-
>93%
-
Protection Grade:
-
IP67
-
Cooling:
-
Water + Ethylene glycol
-
Insulation:
-
H
-
Certification:
-
CCC
Quick Details
-
AC Voltage:
-
208-230 / 240 V
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
YIWEI
-
Model Number:
-
APEV11-80
-
Frequency:
-
100-1000HZ
-
Power range:
-
20-200kw
-
torque range:
-
70-3000 N.m
-
Rated battery Voltage:
-
320VDC, or 540VDC
-
Vehicle Type:
-
passenger car, truck, bus
-
Effenciency:
-
>93%
-
Protection Grade:
-
IP67
-
Cooling:
-
Water + Ethylene glycol
-
Insulation:
-
H
-
Certification:
-
CCC
Products Description
Applicable fields

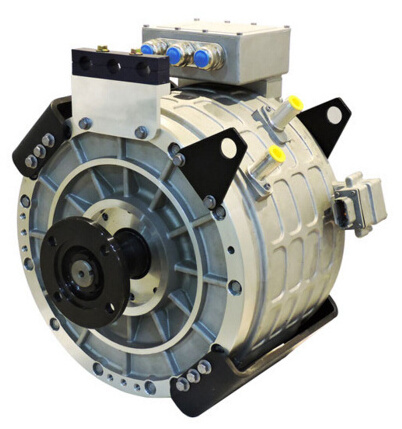

Products Real Shot
Show Details
|
Series Number
|
EM320
|
EM80
|
APEV2000
|
APEV60-8(15)
|
APEV70-12(07B)
|
APEV70-12(04D)
|
APEV80-12(16)
|
|
Poles
|
8
|
12
|
8
|
8
|
12
|
12
|
12
|
|
Rated Battery Voltage (VDC)
|
384
|
540
|
380
|
540
|
540
|
540
|
540
|
|
Rated Power (kW)
|
55
|
80
|
60
|
60
|
70
|
70
|
150
|
|
Peak Power (kW)
|
110
|
145
|
100
|
100
|
135
|
120
|
200
|
|
Rated Speed (RPM)
|
3500
|
1250
|
1600
|
1600
|
786
|
2000
|
1200
|
|
Peak Speed (RPM)
|
12000
|
3500
|
3600
|
3600
|
3000
|
4500
|
3500
|
|
Rated Torque (N.m)
|
150
|
611
|
358
|
360
|
850
|
335
|
1194
|
|
Peak Torque (N.m)
|
320
|
1800
|
1000
|
1000
|
1500
|
600
|
3000
|
|
Insulation
|
H
|
H
|
H
|
H
|
H
|
H
|
H
|
|
Protection
|
IP67
|
IP67
|
IP67
|
IP67
|
IP67
|
IP67
|
IP67
|
|
Cooling
|
Water
|
Water
|
Water
|
Water
|
Water
|
Water
|
Water
|
|
Weight(kg)
|
55
|
180
|
146
|
160
|
160
|
87
|
280
|
|
AEV100-D540120L5 motor controller Specification
|
|
|
|
|||
|
Input Voltage range from battery (VDC)
|
200-720
|
weight(kg)
|
15
|
|||
|
Motor Controller low voltage input range (VDC)
|
9-36
|
Rated capacity(KVA)
|
90
|
|||
|
Max output current(A)
|
400
|
Peak capacity(KVA)
|
150
|
|||
|
Protection
|
IP67
|
Cooling flow
|
>=15L/min
|
|||
|
Coolant
|
Water + Ethylene glycol
|
Max Coolant Inlet temperature °C
|
≤65
|
|||
|
Working temperature
|
-40°C - 65 °C
|
Storage temperature
|
-40°C - 85 °C
|
|||
|
AEV100-D540D540200L2 motor controller Specification
|
|
|
|
|||
|
Input Voltage range from battery (VDC)
|
250-720
|
weight(kg)
|
28
|
|||
|
Motor Controller low voltage input range (VDC)
|
18-36
|
Rated capacity(KVA)
|
180
|
|||
|
Max output current(A)
|
800
|
Peak capacity(KVA)
|
250
|
|||
|
Protection
|
IP67
|
Cooling flow
|
>=15L/min
|
|||
|
Coolant
|
Water + Ethylene glycol
|
Max Coolant Inlet temperature °C
|
≤65
|
|||
|
Working temperature
|
-40°C - 65 °C
|
Storage temperature
|
-40°C - 90 °C
|
|||
