Quick Details
-
Brand Name:
-
BOVE TECHNOLOGY
-
Model Number:
-
BECO X
-
Communication:
-
IrDA, LoRaWAN, Sigfox, NB-IoT, W-MBus, RS485, MBus, Pulse Output
-
Certification:
-
ISO4064
-
Size:
-
DN15-DN40
-
Temperature:
-
0~70℃
-
Product name:
-
BECO X
-
Material:
-
Brass 59-1
-
Metrological class:
-
Class 2
-
Protection class:
-
IP65/68
-
Battery Lifespan:
-
3.6VDC Lithium
-
Ratio:
-
R125, R160, R250, R400, R500
Quick Details
-
Warranty:
-
3 years
-
Type:
-

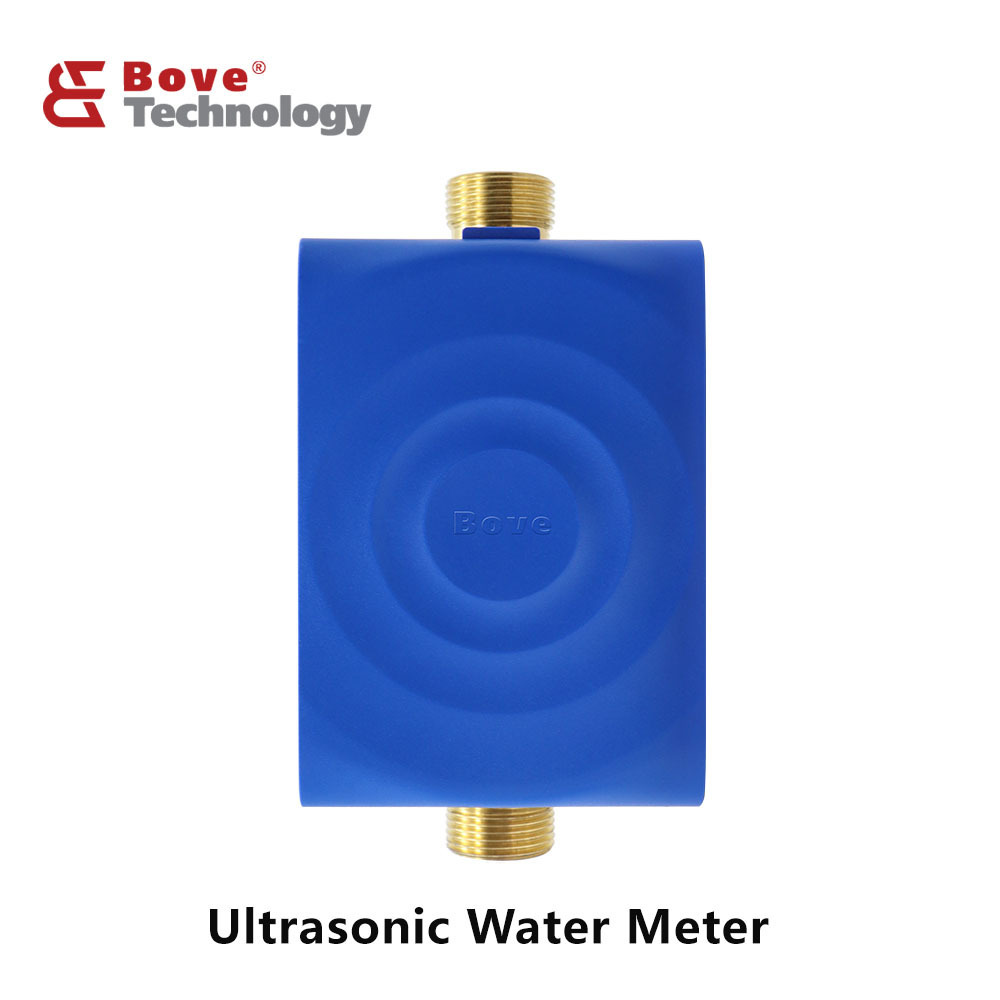

Ultrasonic meters
-
Place of Origin:
-
China
-
Brand Name:
-
BOVE TECHNOLOGY
-
Model Number:
-
BECO X
-
Communication:
-
IrDA, LoRaWAN, Sigfox, NB-IoT, W-MBus, RS485, MBus, Pulse Output
-
Certification:
-
ISO4064
-
Size:
-
DN15-DN40
-
Temperature:
-
0~70℃
-
Product name:
-
BECO X
-
Material:
-
Brass 59-1
-
Metrological class:
-
Class 2
-
Protection class:
-
IP65/68
-
Battery Lifespan:
-
3.6VDC Lithium
-
Ratio:
-
R125, R160, R250, R400, R500
Product Description
Specification
|
Pipe Diameter
|
DN15
|
DN20
|
DN25
|
DN32
|
DN40
|
||||
|
Minimum Flow Rate Q1 (m3/h) @R500
|
0.005
|
0.008
|
0.0126
|
0.02
|
0.032
|
||||
|
Permanent Flow Rate Q3 (m3/h)
|
2.5
|
4
|
6.3
|
10
|
16
|
||||
|
Overload Flow Rate Q4 (m3/h)
|
3.125
|
5
|
7.875
|
12.5
|
20
|
||||
|
End Connection
|
G¾’
|
G1’
|
G1¼’
|
G1½’
|
G2’
|
||||
|
Length (mm)
|
165
|
195
|
225
|
180
|
200
|
||||
|
Width (mm)
|
81
|
81
|
81
|
81
|
81
|
||||
|
Height (mm)
|
100
|
100
|
118
|
128
|
135
|
||||
|
Temperature
|
Medium Range: 0.1℃…...30/ 50/ 70℃ (T30 / T50 / T70)
|
|
|
|
|
||||
|
|
Ambient temperature: 5~55 ℃
|
|
|
|
|
||||
|
|
Storage temperature: -20~60 ℃
|
|
|
|
|
||||
|
Pipe Materials
|
Brass 59-1
|
|
|
|
|
||||
|
Metrological Class
|
Class 2
|
|
|
|
|
||||
|
Ratio (Q3/Q1) (optional)
|
R125, R160 (upto T70) R250, R400, R500 (upto T50)
|
|
|
|
|
||||
|
Maximum Admissible Pressure
|
1.6 MPa
|
|
|
|
|
||||
|
Pressure Loss
|
△P < 40 kPa
|
|
|
|
|
||||
|
Pressure Stage
|
PN16
|
|
|
|
|
||||
|
Installation Position
|
U5 / D3
|
|
|
|
|
||||
|
Protection Class (optional)
|
IP65 / IP68
|
|
|
|
|
||||
|
Battery Lifespan (optional)
|
3.6 VDC lithium battery, 6 / 10 / 16 years lifetime
|
|
|
|
|
||||
|
Data Storage (optional)
|
24 /120 logs, daily / weekly / monthly
|
|
|
|
|
||||
|
Electromagnetic Environmental Class
|
E1
|
|
|
|
|
||||
|
Mechanical Environmental Class
|
M1
|
|
|
|
|
||||
|
Mechanical Environmental Conditions
|
B
|
|
|
|
|
||||
|
Interface & Communication (optional)
|
IrDA, LoRaWAN, Sigfox, NB-IoT, W-MBus, RS485, MBus, Pulse Output
|
|
|
|
|
||||
|
Assembly Orientation
|
H, V, H/ V
|
|
|
|
|
||||
|
Display and Indication
|
Unit: m3 / Gallon (optional) LCD: 8 -digits
|
|
|
|
|
||||
