uPVC Pipe with solvent -cement socket or ring seal socket
uPVC Pipe with solvent -cement socket or ring seal socket

uPVC Pipe with solvent -cement socket or ring seal socket

FOB Reference Price: Get Latest Price
≥1000 Meters
US $0.1
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Specification:
20-800mm
Length:
4m or as your requirement
Thickness:
0.4-30.6mm
Standard:
ASTM,BS,AS,GB,DIN,EN
Shape:
Round Pipe
Life Time:
50years
Color:
White/Grey or as your requirement
Usage:
For Water Supply or Drainage
OEM:
Acceptable
Logo:
Can print your logo
Packing:
Bulk in carton or cut as the size

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
DS
Model Number:
DS2002
Specification:
20-800mm
Length:
4m or as your requirement
Thickness:
0.4-30.6mm
Standard:
ASTM,BS,AS,GB,DIN,EN
Shape:
Round Pipe
Life Time:
50years
Color:
White/Grey or as your requirement
Usage:
For Water Supply or Drainage
OEM:
Acceptable
Logo:
Can print your logo
Packing:
Bulk in carton or cut as the size

UPVC Pipe with solvent -cement socket or ring seal socket

1.Specifications:

1.Material:

PVC;UPVC

2.Size

20-800mm

3. Pressure

0.63-2.5Mpa;

4. Color

Grey / white or as your requirement

5. Media

Water;

6. Place of origin

Zhejiang China

7. Certification

ISO/GB

8. Advantage

Light weight, High strength, Low resistant, Corrosion resistance, Easy installation

9. Vicat softening temperature

≥74; Dry oven test, no signs of bubbles or cracks

10. Mechanical properties

Drop test, no cracks with all samples; Hydraulic test, no leak

2.Detailed Description:

1.Item NO.:

XYGG001~ XYGG 199

2.Main Material:

U-PVC

3.Product Size:

20mm,25mm,32mm,40mm,50mm,63mm,75mm,90mm,110mm,

160mm,200mm,250mm,315mm,400mm

1/2",3/4",1",1-1/4",1-1/2",2"3",4",5",6",8",10"

4.End Connector:

Socket, thread,Ring Belll

5.Working Pressure:

PN6~PN16,0.6Mpa~1.6Mpa,6Bar~166Bar

6.Working Mediums:

Water

7.Connection

Socket ,Female,Male

8.Standard

GB,ISO,DIN,JIS,ANSI,ASTM,BS,SCH40,SC80

Item Spec. CNS J IS DIN ANSI BS SCH80 SCH40
mm inch O.D Thickness O.D Thickness O.D Thickness O.D O.D O.D Thickness O.D Thickness
10 3/8" 18±0.2 2.2±0.6 18±0.2 2.5±0.2 16±0.2 17.14 17.14
15 1/2" 22±0.2 2.7±0.6 22±0.2 3.0±0.3 20±0.3 2.0±0.4 21.34 21.34 21.3±0.1 3.985±0.255 21.3±0.1 3.025±0.255
20 3/4" 26±0.2 2.7±0.6 26±0.2 3.0±0.3 25±0.3 3.0±0.5 26.67 26.67 26.7±0.1 4.165±0.255 26.7±0.1 3.125±0.255
25 1" 34±0.3 3.2±0.6 32±0.3 3.5±0.3 32±0.3 4.0±0.6 33.40 33.40 33.4±0.13 4.815±0.265 33.4±0.13 3.635±0.255
32 1+1/4" 42±0.3 3.2±0.6 38±0.3 3.5±0.3 40±0.3 4.6±0.7 42.16 42.16 42.16±0.13 5.14±0.29 42.16±0.13 3.815±0.255
40 1+1/2" 48±0.4 3.6±0.8 48±0.4 4.0±0.4 50±0.3 5.3±0.8 48.26 48.26 48.26±0.15 5.385±0.305 48.26±0.15 3.94±0.25
50 2" 60±0.5 4.1±0.8 60±0.5 4.5±0.4 63±0.3 6.0±0.9 60.32 60.32 60.32±0.15 5.87±0.33 60.32±0.15 4.165±0.255
65 2+1/2" 76±0.5 4.1±0.8 76±0.5 4..5±0.4 75±0.3 6.6±1.0 73.02 73.02 73.02±0.18 7.43±0.42 73.02±0.18 5.465±0.305
80 3" 89±0.5 5.1±0.8 89±0.5 5.9±0.4 90±0.3 7.3±1.1 88.90 88.90 88.9±0.2 8.075±0.455 88.9±0.2 5.82±0.33
100 4" 114±0.6 6.6±1.0 114±0.6 7.1±0.5 110±0.4 8.0±1.2 114.30 114.30 114.3±0.23 9.07±0.51 114.3±0.23 6.375±0.355
125 5" 140±0.8 7.5±1.2 140±0.8 7.5±0.5 140±0.4 9.3±1.4 141.30 141.30
150 6" 165±1.0 8.5±1.4 165±1.0 9.6±0.7 160±0.5 10±1.5 168.28 168.28 168.3±0.28 11.63±0.66 168.3±0.28 7.54±0.43
200 8" 216±1.3 10.5±1.4 216±1.3 11.0±0.7 225±0.7 12±1.8 219.08 219.08 219.1±0.38 13.46±0.76 219.1±0.38 8.675±0.495
250 10" 267±1.6 13.0±1.8 267±1.6 13.6±0.9 250±0.8 12.6±1.9 273.05 273.05 273.1±0.38 15.96±0.9 273.1±0.38 9.83±0.56
300 12" 318±1.9 15.5±2.2 318±1.9 16.2±1.1 315.0 14±2.1 323.85 323.85 323.9±0.38 18.49±1.04 323.9±0.38 10.93±0.62
350 14" 370±2.2 18.0±2.6
400 16" 420±2.6 20.5±3.0
450 18" 470±3.0 22.9±3.4
500 20" 520±3.5 25.3±3.8
600 24" 630±4.0 30.7±4.0

3.Advantages of pvc pipe:

A.High Temperature Resistance: the maximum sustained working temperature is up to 70°C , the maximum transient temperature is up to 90°C

B.Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe

C.Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium

D.Corrosion Resistance: resist chemical matters and electron chemical corrosion
High Flow Capacity: smooth interior walls and low friction result in low flow resistance and high volume

E. Excellent Flexibility: can be supplied in coil

F. Low Installation Costs: light weight and ease of installation can reduce installation costs

G. Longevity: more than 50 years under proper use

H. Recycled and Environment-friendly

4.Application area of pvc pipe:

1. Piping systems for transporting hot and cold water in dwelling house;

2. Piping systems for transporting and discharging industrial and chemical subject;

3. Pipeline for purified water, drinking water;

4. Piping systems for producing and conveying beverage and drug;

5. Pipeline for compressed air;

6. Piping systems for air-conditioning;

7. Piping systems for underfloor heating and warming;

8. Other piping systems in industry and agriculture.

5.Why choose us("DS")?

1.We produce parts by ourselves, which makes more competitive price and faster delivery;

2. We provide OEM service and submit Various styles, latest designs to our clients;

3.We have great experience on provide high quality service to clients;

4. Welcom e to visit our factory.

6.How to make an order:

1.Send an inquiry;

2.Discuss details;

3.We send samples if clients need (samples are free,but clients need to bear the freight);

4.Clients approve our samples;

5.Clients make 30% deposit or open LC after receiving our PI;

6.Pruduce and tracking quality;

7.Final random inspection;

8.Shipment,then you make balance after you receiving the  delivery notice.

9. Follow up after-sales service

Pictures

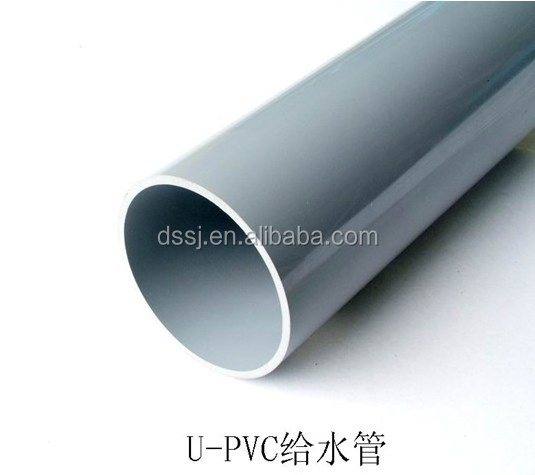

Water Pipes

PVC Pipe Fittings

Warehouse

Contact Informations:

Hebei Dingsu Plastic Sales Co.,Ltd

Tel/Fax:+86 0311-66535303 Mobile/Whatsapp:+86 18232168822

Skype ID:hb-dingsuplastic03

If you are interested in our products,pls don't hesitate to let us know,we will give you the best service and most competitive price.Look forward to do business with you!
