Quick Details
-
Elongation (≥ %):
-
30
-
Place of Origin:
-
Jiangsu, China
-
Application:
-
extreme environment
-
Grade:
-
Nickel Base Alloy
-
Ni (Min):
-
67%
-
Model Number:
-
Monel 400
-
Brand Name:
-
DZX
-
Size:
-
10-50mm
-
Surface:
-
Bright
-
Certificate:
-
ROHS
-
MOQ:
-
50kg
-
Melting point:
-
1370-1425 ℃
-
Ultimate Strength ( MPa):
-
≥790
-
Delivery time:
-
7 to 20 Days
-
Standard:
-
ASTM, DIN
-
Packing:
-
Standard Sea-worthy Packing
Quick Details
-
Resistance (μΩ.m):
-
N/A
-
Powder Or Not:
-
Not Powder
-
Ultimate Strength (≥ MPa):
-
790
-
Elongation (≥ %):
-
30
-
Place of Origin:
-
Jiangsu, China
-
Application:
-
extreme environment
-
Grade:
-
Nickel Base Alloy
-
Ni (Min):
-
67%
-
Model Number:
-
Monel 400
-
Brand Name:
-
DZX
-
Size:
-
10-50mm
-
Surface:
-
Bright
-
Certificate:
-
ROHS
-
MOQ:
-
50kg
-
Melting point:
-
1370-1425 ℃
-
Ultimate Strength ( MPa):
-
≥790
-
Delivery time:
-
7 to 20 Days
-
Standard:
-
ASTM, DIN
-
Packing:
-
Standard Sea-worthy Packing
|
Size Range
|
|
|
|
Wire
|
dia 0.5-7.5mm
|
|
|
|
dia 10-50mm
|
|
|
Tube/Plate
|
Custom made
|
|
|
|
|
|
|
Strip
|
(0.50-2.5)*(5-180)mm
|
|
|
|
|
|
|

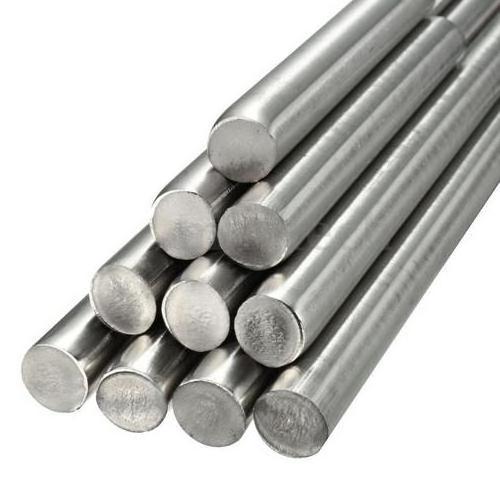

Rod
|
8-200mm
|
|
Inconel Series
Monel 400 is a nickel-copper alloy (about 67% Ni - 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions.
Applications:
* Valves, pumps, shafts, fittings, and fasteners
* Industrial heat exchangers
* Chlorinated solvents
* Crude oil distillation towers
* Marine engineering
* Chemical and hydrocarbon processing equipment
* Gasoline and freshwater tanks
* Crude petroleum stills
* De-aerating heaters
* Boiler feed water heaters and other heat exchangers
|
Chemical Composition
|
|
|
|
|
|
|
|
|||||||
|
Grade
|
Ni%
|
Cu%
|
Fe%
|
Mn%
|
C%
|
Si%
|
S%
|
|||||||
|
Monel 400
|
Min 63
|
28-34
|
Max 2.5
|
Max 2.0
|
Max 0.30
|
Max 0.50
|
Max 0.024
|
|||||||
|
Mechanical Properties
|
|
|
|
|
||||
|
Alloy
|
Tensile Strength
(Rm N/mm2) |
Yield strength
(RP0.2N/mm2) |
Elongation(A5%)
|
HB
|
||||
|
Monel 400
|
480
|
170
|
35
|
≥331
|
||||
|
Item
|
|
600
|
601
|
617
|
625
|
690
|
718
|
X750
|
825
|
|
|
C
|
|
≤0.15
|
≤0.1
|
0.05-0.15
|
≤0.08
|
≤0.05
|
≤0.08
|
≤0.08
|
≤0.05
|
|
|
Mn
|
|
≤1
|
≤1.5
|
≤0.5
|
≤0.35
|
≤0.5
|
≤0.35
|
≤1
|
≤1
|
|
|
Fe
|
|
6-10
|
rest
|
≤3
|
rest
|
7-11
|
rest
|
5-9
|
≥22
|
|
|
P
|
|
≤0.015
|
≤0.02
|
≤0.015
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
|
|
S
|
|
≤0.015
|
≤0.015
|
≤0.015
|
≤0.015
|
≤0.015
|
≤0.01
|
≤0.01
|
≤0.03
|
|
|
Si
|
|
≤0.5
|
≤0.5
|
≤0.5
|
≤0.35
|
≤0.5
|
≤0.3
|
≤0.5
|
≤0.5
|
|
|
Cu
|
|
≤0.5
|
≤1
|
N/A
|
≤0.3
|
≤0.5
|
≤0.3
|
≤0.5
|
1.5-3
|
|
|
Ni
|
|
≥72
|
58-63
|
≥44.5
|
50-55
|
≥58
|
50-55
|
≥70
|
38-46
|
|
|
Co
|
|
N/A
|
N/A
|
10-15
|
≤10
|
N/A
|
≤1
|
≤1
|
N/A
|
|
|
Al
|
|
N/A
|
1-1.7
|
0.8-1.5
|
≤0.8
|
N/A
|
0.2-0.8
|
0.4-1
|
≤0.2
|
|
|
Ti
|
|
N/A
|
N/A
|
≤0.6
|
≤1.15
|
N/A
|
N/A
|
2.25-2.75
|
0.6-1.2
|
|
|
Cr
|
|
14-17
|
21-25
|
20-24
|
17-21
|
27-31
|
17-21
|
14-17
|
19.5-23.5
|
|
|
Nb+Ta
|
|
N/A
|
N/A
|
N/A
|
4.75-5.5
|
N/A
|
4.75-5.5
|
0.7-1.2
|
N/A
|
|
|
Mo
|
|
N/A
|
N/A
|
8-10
|
2.8-3.3
|
N/A
|
2.8-3.3
|
N/A
|
2.5-3.5
|
|
|
B
|
|
N/A
|
N/A
|
≤0.006
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
|
JiangSu DZX Alloy Co.,Ltd was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.
We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of wire,strip,ribbon,bar,tube,plate and etc.
The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality".
