Quick Details
-
Brand Name:
-
Forlong
-
Model Number:
-
LXS-15D--25D
-
material:
-
Brass or PPO
-
Product name:
-
water meter
-
Keyword:
-
M-bus water meter
Quick Details
-
Warranty:
-
1 years
-
Type:
-
Turbine meters
-
Place of Origin:
-
China
-
Brand Name:
-
Forlong
-
Model Number:
-
LXS-15D--25D
-
material:
-
Brass or PPO
-
Product name:
-
water meter
-
Keyword:
-
M-bus water meter

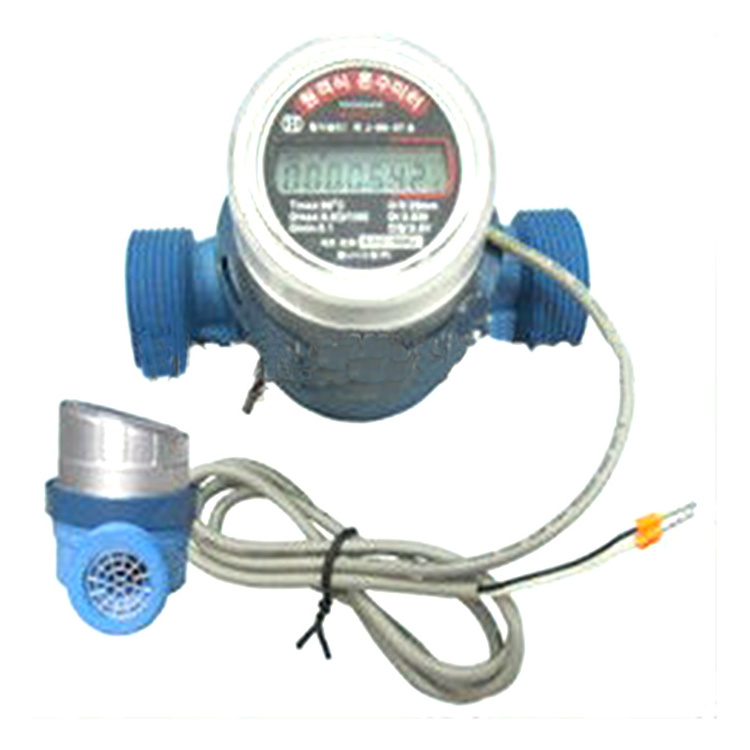

Competitive price remote reading M-bus water meter
Features:
Made in PPO materials which is internationally accepted as meets the purified water requirements and fits for saving resources, health and environmental protection.
Electronic direct-reading meter with high-definition LCD display can reads and sends digital information directly.
High sensitivity electronic meter with low starting flow measurement, high precision measurement and automatic error correction function.
Low power consumption, normal working can be power supplied by M-BUS communication ports line.
Measuring maintains for 5 years power supplied by backup internal battery when communication ports line is broken.
Permanent data storage
Size: 15mm, 20 mm, 25 mm
Operating pressure: 1Mpa
Pressure loss: ≤0.1Mpa
Class: B
Type: LXS-15D~25D
Normal flow: 1.5m 3 /h,2.5 m 3 /h,3.5 m 3 /h
Max flow: 3m 3 /h,5 m 3 /h,7 m 3 /h
Max. count: 999999. 99m 3
Water temperature: 0-60
Water quality: clean water
Communication ports: M-BUS
Wire: two-core wire, no polarity connection
Communications protocol: consulted
M-Bus technique explanation:
M-bus is a kind of bus structure of public utility measure instrument named Meter-Bus,or M-bus.The principle of work is data transmission based on modulation demodulation technique on DC power line.M-bus dedicated chip is embedded into meters and concentrator and data translated by two wire cable.
Technical characteristics:
1.Distant and reliable communication based on high speed stable communication rate.
2.Discretionary cable laying ways of serial type,star type and cross type are acceptable.
3.Non-polarity parallel line and twisted pair are used for cable laying.
4.Anti-interference based on isolation communication equipment,constant-current electric current loop communication system.
5.Auto-Login,admissible for multiple devices and multiple communication protocol,this system is easy to be expanded.
6.Powered by M-bus cable,low quiescent power drain,this system is suitable for meters that needs of outside power supply.
