Quick Details
-
Model Number:
-
VRX2615
-
Product Name:
-
Loudspeaker magnet 15inch peak 1000watts Differential Drive Neo Woofer
-
Nominal diameter:
-
15"
-
Nominal impedance:
-
8 Ohm
-
Nominal Power Handling:
-
600W
-
Continuous Power Handling:
-
1200W
-
voice coil diameter:
-
3 inch
-
Cone Material:
-
Paper
-
Magnet:
-
Neodymium
-
application:
-
Outdoor performance full range,line array system speaker
-
TYPE:
-
touring grade pro audio sound speaker
Quick Details
-
Warranty:
-
3years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GYIMPEX AUDIO
-
Model Number:
-
VRX2615
-
Product Name:
-
Loudspeaker magnet 15inch peak 1000watts Differential Drive Neo Woofer
-
Nominal diameter:
-
15"
-
Nominal impedance:
-
8 Ohm
-
Nominal Power Handling:
-
600W
-
Continuous Power Handling:
-
1200W
-
voice coil diameter:
-
3 inch
-
Cone Material:
-
Paper
-
Magnet:
-
Neodymium
-
application:
-
Outdoor performance full range,line array system speaker
-
TYPE:
-
touring grade pro audio sound speaker
Specification
|
Setting Information
|
|
|
|
Nominal diameter
|
15 inch
|
|
|
Nominal impedance
|
8 ohm
|
|
|
Nominal Power Handling
|
600W
|
|
|
Continuous Power Handling
|
1200W
|
|
|
Frequency range
|
45 Hz
|
|
|
voice coil diameter
|
3 inch
|
|
|
Cone Material
|
Paper
|
|
|
brand
|
GYIMPEX
|
|
Product Description
|

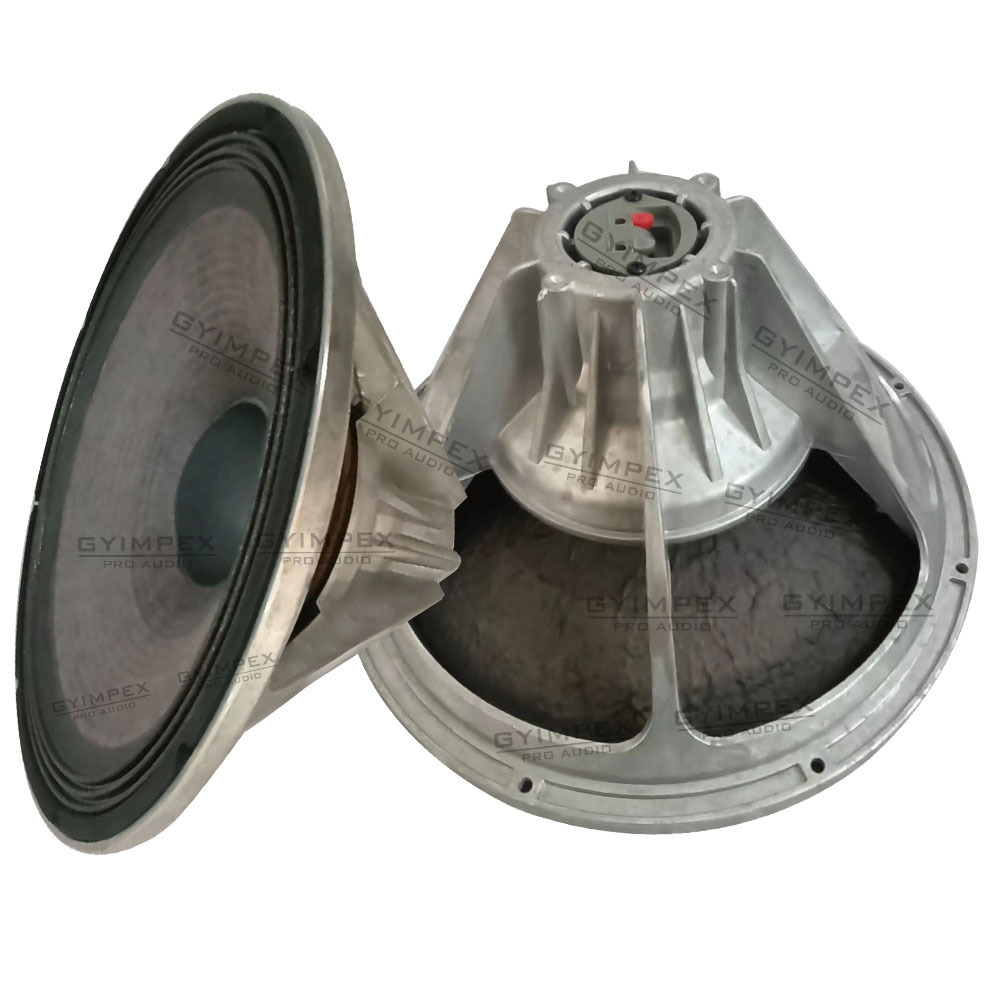

VRX2615 15" Differential Drive Neodymium Woofer
Application:Medium-large scale venues including Touring performance ,stadium theater, concert hall, auditorium, theatre, music halls, night
clubs, large discotheques, touring show, rental market application |
|
Specification
|
|
Nominal Diameter: 381mm/15"
Power Handling (RMS) :600 Watts
Power Handling (max): 1200 Watts
Impedance: 8 ohms Sensitivity: 96 dB1W/1m
Voice Coil Diameter:75mm/ 3"
Winding Material :Copper
Magnet Material :Neodymium
|
|
Thiele-Small Parameters
|
|
Resonant Frequency (Fs) :45 Hz DC
Resistance (Re): 4.5ohms
Voice Coil Inductance (Le) :1.7 mH
Mechanical Q (Qms): 6.28
Electromagnetic Q (Qes) :0.48
Total Q (Qts): 0.45 Compliance
Equivalent Volume (Vas): 107.2L |
|
Mounting Information
|
|
Overall Outside Diameter :15.3"/388mm
Bolt Circle Diameter: 14.7''/372mm
Baffle Cutout Diameter: 13.9''/354mm
Depth: 8.2"/207mm
Net weight:4kg
|
