Quick Details
-
Weight:
-
8000 kg
-
Product name:
-
Lifting Platform
-
Keywords:
-
Man Lift
-
Type:
-
Lifting Equipment
-
Application:
-
Widely
-
Usage:
-
Higher Level
-
Material:
-
High-duty Steel Structure
-
Color:
-
Customers' Requirements
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation Safety Convenience
-
Lift Drive:
-
Electric Power
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Table Size:
-
1.83*0.76m
-
Weight:
-
8000 kg
-
Product name:
-
Lifting Platform
-
Keywords:
-
Man Lift
-
Type:
-
Lifting Equipment
-
Application:
-
Widely
-
Usage:
-
Higher Level
-
Material:
-
High-duty Steel Structure
-
Color:
-
Customers' Requirements
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation Safety Convenience
-
Lift Drive:
-
Electric Power
Why Choose Us
Advantage：
*
4m wide platform for easy carrying of tools and materials.
*
Equipped with a small fly jib, it has a certain obstacle crossing ability and could be stretched.
*
The dual load control system automatically adjusts the operating range according to the load, which can meet the different load requirements.
*
Σ-shaped boom, compact and flexible, able to ascend and descend vertically or extend horizontally to cross obstacles; the platform can turn 160°, creating a wider operation area; compact and narrow turntable eliminates tail swing and improves operation efficiency;
*
Off-road chassis, 4W drive system, solid off-road wide tire, full-time axle balance system, 38kw power, excellent adaptation to any terrain. Work platform is enable to extend out, enlarging the work space, together with the foldable fence making the transportation easier.
*
Full - range work; direct and friendly control panel easy to control; precise and effective electric-hydraulic proportional system Chassis tilting protection, platform overloading warning, emergent lowering, safety speed limit, flexible start/stop technologies.
Basic Information

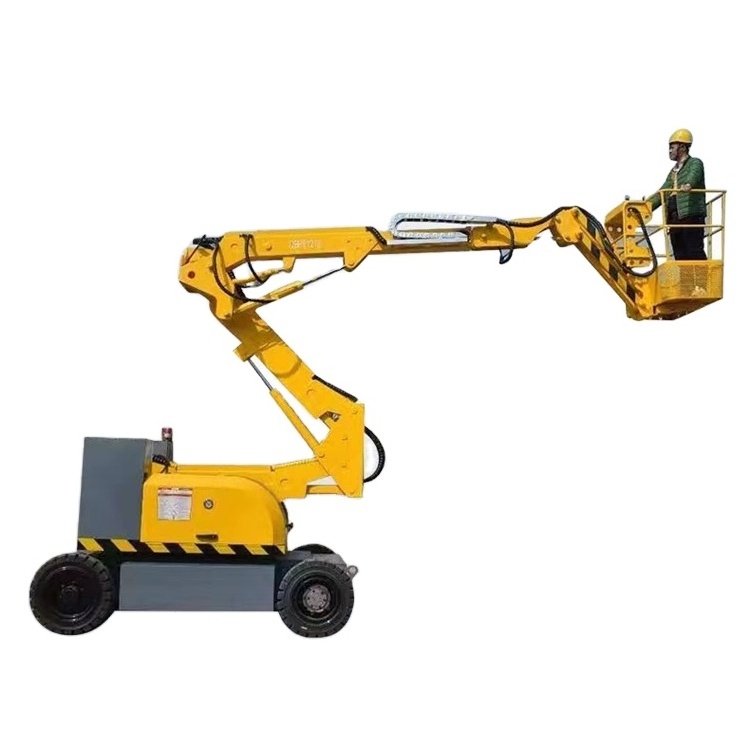

What's The Self-propelled Boom Lift ：
Self-propelled boom lift,It is the highest-efficiency straight boom aerial work platform. It is provided with the double-operating-radius curve, the machine has the industry-leading operating altitude(8-22m)/radius(5.3m to 11.7m) and carrying capacity. The device is powered by a high-efficiency battery pack and can also be charged through a standard power socket.
The whole machine has simple structure, reliable safety and more convenient operation.You can operate it from the chassis control or platform control. And it can be used for two workers to work on the platform at the same time. This type of machine may satisfy the diversified demands of different industrial users engaged in building construction, bridge and equipment maintenance, shipbuilding, petrochemical engineering, lease etc.
|
Model
|
LC-10J
|
LC-12J
|
LC-14J
|
LC-15J
|
LC-18J
|
LC-25J
|
|
Working load
|
200kg
|
250kg
|
230kg
|
230kg
|
230kg
|
230kg
|
|
Platform height
|
12m
|
12m
|
14m
|
15m
|
18m
|
25m
|
|
Platform Size（m）
|
1.1*0.65
|
1.53*0.76
|
1.53*0.76
|
1.53*0.76
|
1.53*0.76
|
1.53*0.76
|
|
Overall dimensions（m）
|
4.35*1.5*1.99
|
5.76*1.75*2
|
6.56*1.75*2
|
7.7*2.28*2.18
|
8.5*2.3*2.5
|
11.28*2.49*3
|
|
Weight
|
4700kg
|
6300kg
|
6500kg
|
7050kg
|
10500kg
|
15900kg
|
|
Turntable rotation angle
|
360°
|
360°
|
360°
|
360°
|
360°
|
360°
|
|
Platform rotation angle
|
180°
|
180°
|
180°
|
180°
|
180°
|
180°
|
More Information
Main performance characteristics:
Articulated mobile elevating work platform aiming to satisfy customers’ requirements. Intelligent and perfect control system features the humanized layout, the maintenance-free design and easy use and maintenance, providing the multiple options and comprehensive safety.
*
The single-cylinder drives the boom and the column to synchronously luff and lift, increase the operating speed, quickly approach the construction area, and improve the construction efficiency. It is suitable for construction areas with relatively low height and relatively narrow space.
*
The use of lubrication-free bushings and sliders reduces the friction between the joint hinge points and the sliders between the booms, and better adapts to welding and dust construction environments, while greatly reducing the failure rate and improving the service life of the entire vehicle.
*
The power system adopts an electronic control engine. The sensors of oil pressure, water temperature and speed are integrated with the engine and controlled by ECU, which is safe and reliable. At the same time, it comes with a fault diagnosis interface to facilitate fault diagnosis and maintenance.
Left and right 160 ° rotary table
Self locking platform door, when the operator enters, the platform door will automatically lock to increase security, and the work bar can rotate 160 ° from left to right, which is convenient and flexible.
Dual cylinder same fluid steering system
The steering system with double cylinders and the same fluid is equipped with 40CR steering linkage, which ensures the same direction of two wheels.
Overhead console
The control system on the stage adopts a three handle operating lever, which is convenient for the operator to operate in accordance with multiple actions during the work.
Foot switch
The handle can only be operated effectively under foot pedal condition.
Solid tyre
355/55D625 wide series solid tires not only enhance the stability in various complex working conditions, but also increase the ground friction during construction. The equipment is more stable in operation and easier to climb.
360 ° rotary turntable
The 50CR high-strength material slewing support platform is used for 360 ° rotation, which is convenient for construction under various working conditions.
