Quick Details
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Width of bed (mm):
-
220 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
220
-
Travel (X Axis)(mm):
-
720 mm
-
Travel (Z Axis)(mm):
-
250 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
2300*1350*1760
-
Brand Name:
-
DAS
-
Model Number:
-

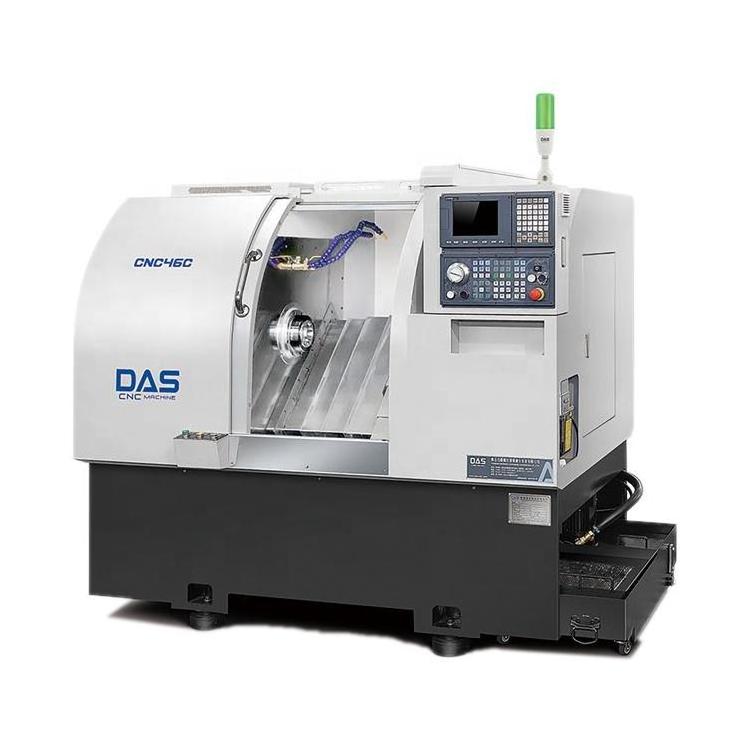

CNC-46C
-
Voltage:
-
220V 380V
-
Weight (KG):
-
2600
-
Marketing Type:
-
Hot Product
-
Machine Type:
-
Horizontal CNC Lathe
-
Name:
-
Metal Cnc Lathe
-
Function:
-
Machining Metal
-
Product name:
-
Automatci
-
Product type:
-
Cnc Horizontal Turning Lathe Machine
-
Precision:
-
High Precision
-
Keyword:
-
cnc lathe automatic feed
-
Control system:
-
Generation
-
Color:
-
Custom-made
-
Spindle speed:
-
5000/4000
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
200
-
Year:
-
New
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Width of bed (mm):
-
220 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
220
-
Travel (X Axis)(mm):
-
720 mm
-
Travel (Z Axis)(mm):
-
250 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
2300*1350*1760
-
Brand Name:
-
DAS
-
Model Number:
-
CNC-46C
-
Voltage:
-
220V 380V
-
Weight (KG):
-
2600
-
Marketing Type:
-
Hot Product
-
Machine Type:
-
Horizontal CNC Lathe
-
Name:
-
Metal Cnc Lathe
-
Function:
-
Machining Metal
-
Product name:
-
Automatci
-
Product type:
-
Cnc Horizontal Turning Lathe Machine
-
Precision:
-
High Precision
-
Keyword:
-
cnc lathe automatic feed
-
Control system:
-
Generation
-
Color:
-
Custom-made
-
Spindle speed:
-
5000/4000
|
Model
|
CNC36C
|
CNC46c
|
|
Max.swing diameter(mm)
|
Φ400
|
Φ400
|
|
Max.turning diameter(mm)
|
Φ400
|
Φ400
|
|
Max.turning length(mm)
|
220
|
220
|
|
Chuck size(inch)
|
5 inch
|
6 inch
|
|
Spindle speed(r/min)
|
0-4500
|
0-4500
|
|
Spindle power(kw)
|
5.5
|
7.5
|
|
Spindle bore(mm)
|
Φ46
|
Φ56
|
|
Auto feeding rod max.diameter(mm)
|
Φ35
|
Φ45
|
|
Min. resolution(mm)
|
0.001
|
0.001
|
|
X/Z axis travel(mm)
|
720/250
|
720/250
|
|
X/Z axis fast moving speed(r/min)
|
26/26
|
26/26
|
|
X/Z axis repeatability(mm)
|
±0.005/±0.005
|
±0.005/±0.005
|
|
X/Z axis motor power(kw)
|
0.85/1.3
|
1.3/1.3
|
|
Taper(mm)
|
≤0.003/100
|
≤0.003/100
|
|
Circle processing precision(mm)
|
≤0.003
|
≤0.003
|
|
Square tool holder size(mm)
|
20*20
|
20*20
|
|
Round tool holder size(mm)
|
φ20
|
φ20
|
|
Machine Power (kw)
|
10
|
12
|
|
Net Weight(KG)
|
2800
|
2900
|
|
Machine Dimensions(LxWxH)(mm)
|
2300*1350*1760
|
2300*1350*1760
|
