Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Laien
-
Model Number:
-
QD
-
Weight (KG):
-
5000
-
Power (kW):
-
11
-
Name:
-
Pneumatic mesh welding machine
-
Keywords:
-
reinforced mesh welding machine
-
Usage:
-
Welding Steel Mesh
-
Certification:
-
CE ISO9001
-
Voltage:
-
380V/220/440V Customized
-
Control system:
-
PLC+touch Screen
-
Color:
-
Customized Colors
-
Welding speed:
-
80-100/min
Quick Details
-
Wire Diameter (mm):
-
5 - 12 mm
-
Warranty of core components:
-
1years
-
Production Capacity:
-
65-80times/min
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Laien
-
Model Number:
-
QD
-
Weight (KG):
-
5000
-
Power (kW):
-
11
-
Name:
-
Pneumatic mesh welding machine
-
Keywords:
-
reinforced mesh welding machine
-
Usage:
-
Welding Steel Mesh
-
Certification:
-
CE ISO9001
-
Voltage:
-
380V/220/440V Customized
-
Control system:
-
PLC+touch Screen
-
Color:
-
Customized Colors
-
Welding speed:
-
80-100/min

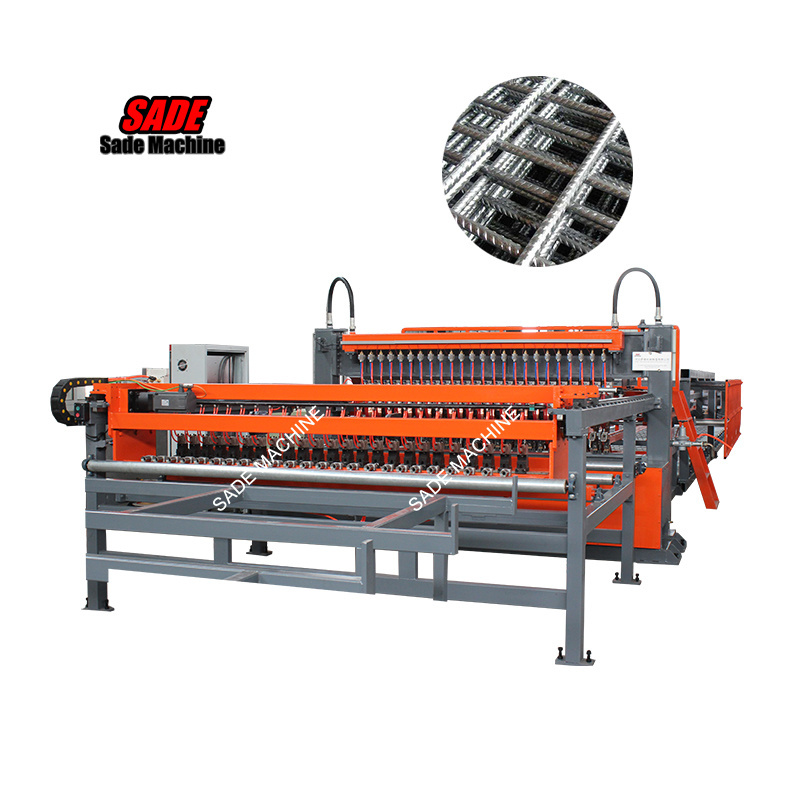

This is our new developed pneumatic welding machine . The machine adopts synchronons control technique, welding time and sub-control welding is composed of PLC program system. The mesh produced can be used for fences, high-speed railway fences, construction mesh, chicken mesh etc.
|
Items |
Description |
|
Finish Mesh Type |
With curver wire mesh fence pannel |
|
Welding Wire Diameter |
Φ3-6/3-8/5-12(mm) |
|
Welding Aperture |
50*50-300*300(mm) |
|
Welding Width |
2500(mm) |
|
Number of Electrodes |
48/24 |
|
Welding Speed |
80-100times/min |
|
Power |
Three phase 380V±10% 50HZ |
|
Welding Power |
50HZ/380V(transformer capacity ≥125KVA) |
|
Rated Voltage |
AC380V 50HZ |
|
Feeding wire type |
pre cutted wire |
|
Weight |
6T |
|
Overall Dimension |
10x3.0x2.0m |
|
Curver Making |
Online curver |
1. This machine adopts Japan Mitsubishi brand electronic synchronous control technique, welding time and sub-control welding are all composed of digital integrated circu t, which has high control accuracy, stable performance, firm welding spots and without burned mark.
2. The welding speed is fast and the operation is simple and easy to master.
3. The weft matched with the accurate weft cutting device and accurate positioning device, ensures the weft at the same length and without being out.
4 . The mesh drawing system is controlled by motor which improved the precision of mesh opening size, meanwhile the line wire and the weft wire spacing are adjustable.
the finish mesh normally use as brc reinforcing wire meshes, fence mesh, Pet cage, storage cage, mine protection, widely use on side of road for protect, building, bridge, road etc.
