Quick Details
-
Warranty:
-
25 Years Warranty
-
Brand Name:
-
Trina
-
Model Number:
-
05 Vertex TSM-DE21 650-670W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2384x1303x35mm
-
Product name:
-

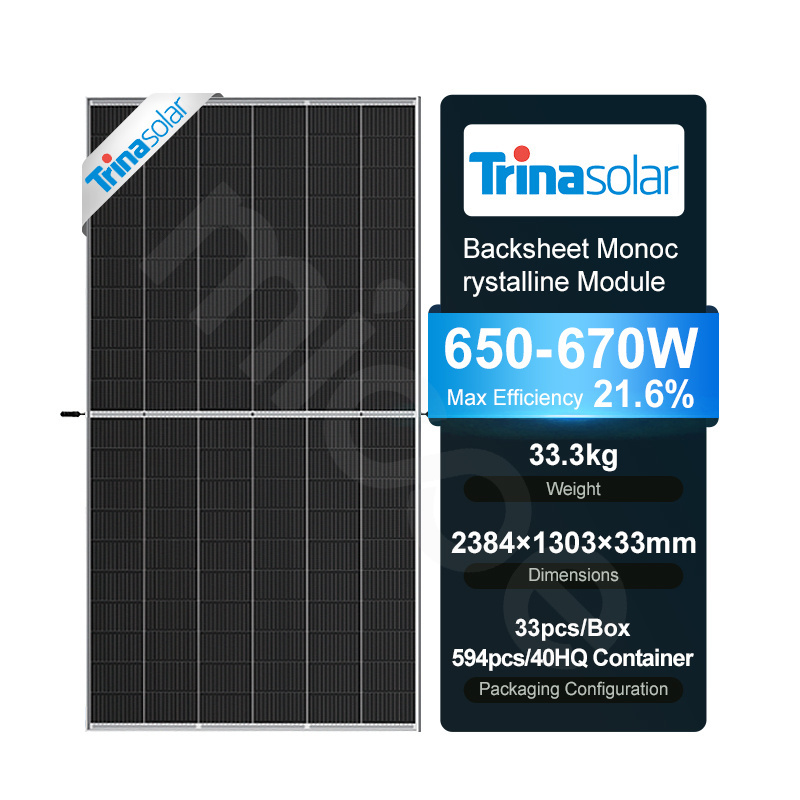

Trina 645W 650W 655W 660W 665W 670W Solar Power Panels
-
Application:
-
Solar Power System
-
Cell Type:
-
Mono PERC Half Cell
-
Weight:
-
33.6kg
-
Front Cover:
-
3.2mm Tempered Glass with Anti-reflective Coating
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68 rated
-
Cable:
-
4mm2
-
Connector:
-
T4 series or MC4-EVO2
-
Per Pallet:
-
31 pieces
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
21.6%
-
Warranty:
-
25 Years Warranty
-
Brand Name:
-
Trina
-
Model Number:
-
05 Vertex TSM-DE21 650-670W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2384x1303x35mm
-
Product name:
-
Trina 645W 650W 655W 660W 665W 670W Solar Power Panels
-
Application:
-
Solar Power System
-
Cell Type:
-
Mono PERC Half Cell
-
Weight:
-
33.6kg
-
Front Cover:
-
3.2mm Tempered Glass with Anti-reflective Coating
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68 rated
-
Cable:
-
4mm2
-
Connector:
-
T4 series or MC4-EVO2
-
Per Pallet:
-
31 pieces
Products Description
|
ELECTRICAL DATA (STC)
|
|
|
|
|
|
|
||||||
|
Peak Power Watt-Pmax(Wp)
|
645W
|
650W
|
655W
|
660W
|
665W
|
670W
|
||||||
|
Power Tolerance-Pmax(W)
|
0~+5
|
|
|
|
|
|
||||||
|
Maximum Power Voltage-Vmpp(V)
|
37.2
|
37.4
|
37.6
|
37.8
|
38.0
|
38.2
|
||||||
|
Maximum Power Current-Impp(A)
|
17.35
|
17.39
|
17.43
|
17.47
|
17.51
|
17.55
|
||||||
|
Open Circuit Voltage-Voc(V)
|
45.1
|
45.3
|
45.5
|
45.7
|
45.9
|
46.1
|
||||||
|
Short Circuit Current-Isc(A)
|
18.39
|
18.44
|
18.48
|
18.53
|
18.57
|
18.62
|
||||||
|
Module Efficiency(%)
|
20.8
|
20.9
|
21.1
|
21.2
|
21.4
|
21.6
|
||||||
|
MECHANICAL DATA
|
|
|
|
Solar Cells
|
Monocrystalline
|
|
|
No.of cells
|
132 cells
|
|
|
Module Dimensions
|
2384x1303x35mm
|
|
|
Weight
|
33.6kg
|
|
|
Glass
|
3.2mm (0.13 inches), High Transmission, AR Coated Heat Strengthened Glass
|
|
|
Encapsulant material
|
EVA/POE
|
|
|
Backsheet
|
White
|
|
|
Frame
|
35mm (1.38 inches) Anodized Aluminium Alloy
|
|
|
J-Box
|
IP68 rated
|
|
|
Cables
|
Photovoltaic Technology Cable 4.0mm2 (0.006 inches2),
Portrait: 280/280 mm(11.02/11.02 inches)
Length can be customized
|
|
|
Connector
|
MC4 EVO2 / TS4*
|
|
|
If you have special needs, please feel free to contact us.
|
|
|
