Quick Details
-
Product name:
-
Hydraulic metal sheet plate shearing machine
-
Model:
-
QC12Y-4x2500
-
Max.shearing width:
-
2500mm
-
Machine type:
-
hydraulic metal sheet shearing
-
Usage:
-
metal plate shearing
-
Material:
-
steel
-
Control system:
-
hydraulic control
-
Motor Power:
-
4kw
-
Color:
-
you required
-
Range of Backguage:
-
20-600mm
Quick Details
-
Max. Cutting Width (mm):
-
2500
-
Max. Cutting Thickness (mm):
-
4
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Hydraulic metal sheet plate shearing machine
-
Model:
-
QC12Y-4x2500
-
Max.shearing width:
-
2500mm
-
Machine type:
-
hydraulic metal sheet shearing
-
Usage:
-
metal plate shearing
-
Material:
-
steel
-
Control system:
-
hydraulic control
-
Motor Power:
-
4kw
-
Color:
-
you required
-
Range of Backguage:
-
20-600mm

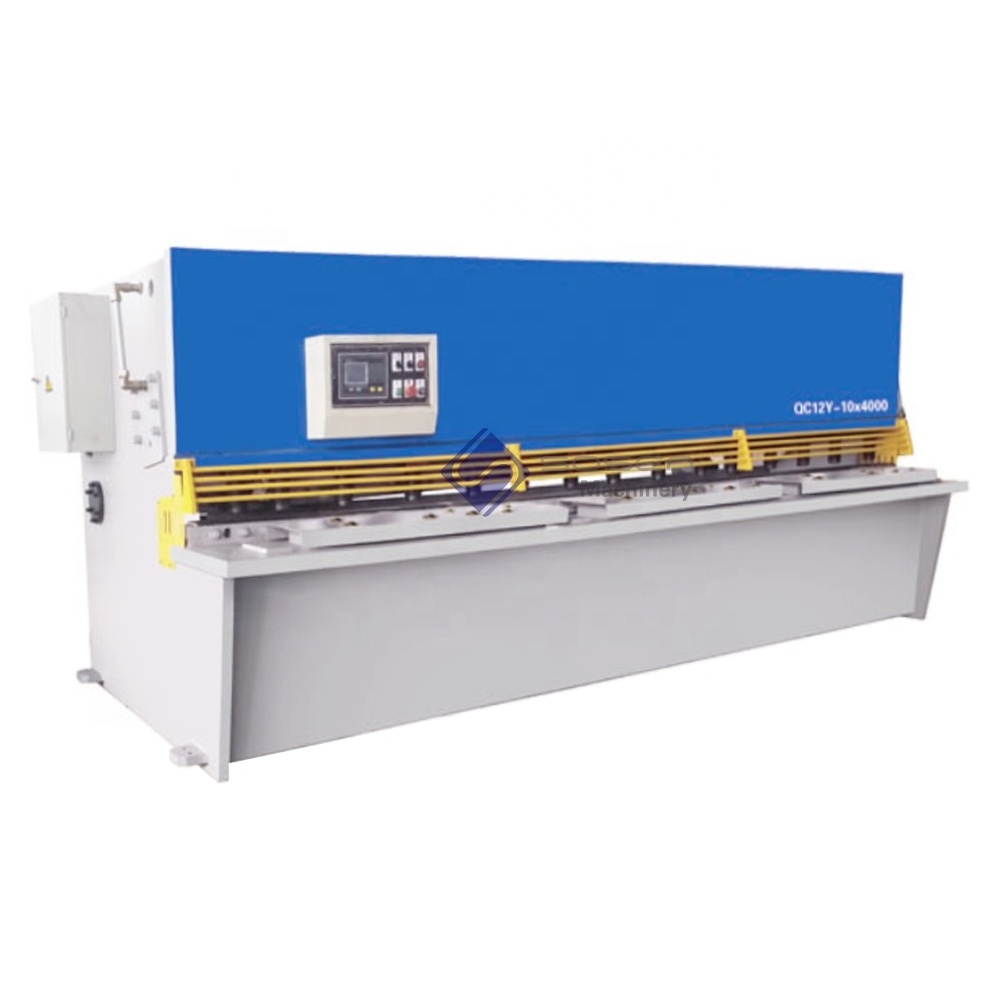

QC12Y-4x2500 Hydraulic metal sheet plate shearing machine
Features:
Steel plate welded structure, hydraulic drive, nitrogen cylinder return.
Easy to operate, reliable performance, beautiful appearance.
Indicating signs are available for blade clearance adjustment, convenient and fast.
Light alignment illumination device, and can adjust the amount of travel of the upper tool rest in a stepless way.
Fence personal safety protection device adopted at the workspace.
The sizes of rear stoppers are controlled by a micro gear motor, with low noise and accurate positioning, to achieve the best satisfactory results.
Specifications:
| Model | Shearing Thickness (mm) | Shearing Width (mm) | Shear angle (degree) | Number of Strokes (tims-/min) | Range of Backguage (mm) | Main motor power(kw) |
| QC12Y-4X2000 | 4 | 2000 | 1°30′ | 18 | 20-600 | 4 |
| QC12Y-4X2500 | 4 | 2500 | 1°30′ | 18 | 20-600 | 4 |
| QC12Y-6x2500 | 6 | 2500 | 1°30′ | 18 | 20-600 | 7.5 |
| QC12Y-6x3200 | 6 | 3200 | 1°30′ | 14 | 20-600 | 7.5 |
| QC12Y-6x4000 | 6 | 4000 | 1°30′ | 12 | 20-600 | 7.5 |
| QC12Y-6x5000 | 6 | 5000 | 1°30′ | 10 | 20-600 | 7.5 |
| QC12Y-8x2500 | 8 | 2500 | 1°30′ | 14 | 20-600 | 7.5 |
| QC12Y-8x3200 | 8 | 3200 | 1°30′ | 10 | 20-600 | 7.5 |
| QC12Y-8x4000 | 8 | 4000 | 1°30′ | 8 | 20-600 | 11 |
| QC12Y10x2500 | 10 | 2500 | 1°30′ | 10 | 20-600 | 11 |
| QC12Y-10x3200 | 10 | 3200 | 1°30′ | 10 | 20-600 | 11 |
| QC12Y-10x4000 | 10 | 4000 | 1°30′ | 8 | 20-600 | 15 |
