Quick Details
-
Bottle Volume(ml):
-
5000 ml
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shuliy
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1.65*0.76*2.1
-
Power (kW):
-
24KW
-
Weight (KG):
-
950 KG
-
Material:
-
PE PP ABS PS
-
Use:
-
Making PET Bottle
-
Product Application:
-
Barrel
-
Capacity:
-
600-1000pcs/h
-
Advantages:
-
Saving Energy
-
Volume:
-
0.05-5L
-
Key words:
-
Blowing Mold Machine
-
Suitable bottle:
-
Oil Bottle
-
Weight:
-
0.95T
-
Power:
-
24KW
-
Marketing Type:
-
Hot Product 2021
Quick Details
-
Neck Diameter(mm):
-
120 mm
-
Max.Bottle Diameter(mm):
-
170 mm
-
Max.Bottle Height(mm):
-
360 mm
-
Bottle Volume(ml):
-
5000 ml
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shuliy
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1.65*0.76*2.1
-
Power (kW):
-
24KW
-
Weight (KG):
-
950 KG
-
Material:
-
PE PP ABS PS
-
Use:
-
Making PET Bottle
-
Product Application:
-
Barrel
-
Capacity:
-
600-1000pcs/h
-
Advantages:
-
Saving Energy
-
Volume:
-
0.05-5L
-
Key words:
-
Blowing Mold Machine
-
Suitable bottle:
-
Oil Bottle
-
Weight:
-
0.95T
-
Power:
-
24KW
-
Marketing Type:
-
Hot Product 2021

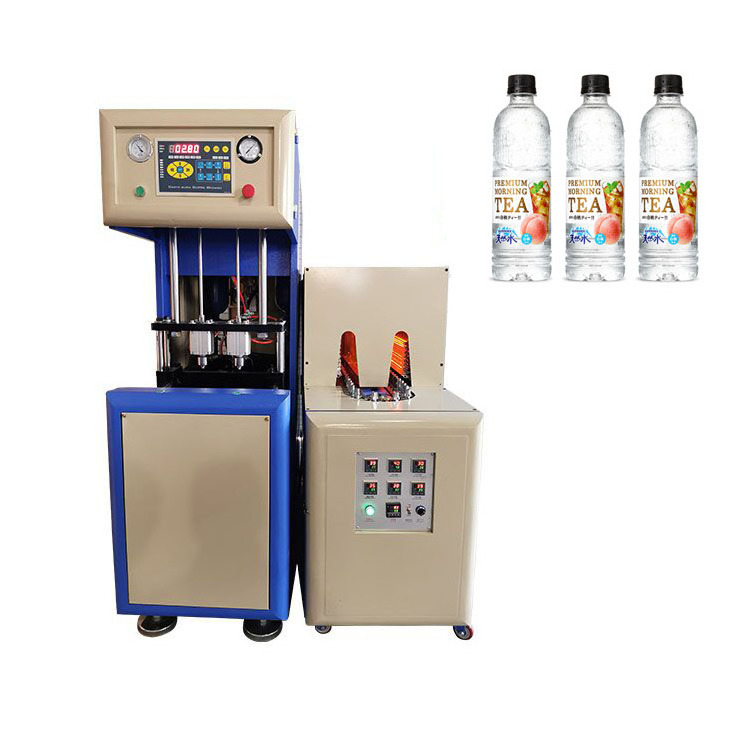

Bottle Blow Molding Machine
Introduction of Bottle Blow Molding Machine
Our Semi-Automatic Bottle Blow Molding Machine is used matching with injection molding machine.As a new designed Bottle Blow Molding Machine, it has the characteristics of high production efficiency, stable running, save electricity, competitive price, long life service, easy for maintenance and safe.
Application of Bottle Blow Molding Machine
It is the machine for processing PET plastic,suitable for mineral water bottles,carbonated beverage bottle, oil bottle, pesticide bottle, wild-mouth bottle etc.
At present, Bottles are widely used in daily life,not only in large scale supermarkets, Restaurants, but also in small shop, bottles act as the tool for putting water, drink, cosmetics, pesticide,oil etc.Bottle Blow Molding Machine is applied for Food Processing Machinery, Beverage Plant,and the person who want to enter and expand the business.This is one broad prospect field to create benefits!
Advantages of Bottle Blow Molding Machine
1.Using computer control system,with high reliability, fast and good stability, only one person can operate;
2.It adopts infrared lamp heating, strong penetrating power, self-rotation heating of the preform,heating evenly. The height and width of reflector can be adjustable to meet different preforms structures,size;
3.Automatic voltage temperature regulation;
4.Conveyor bottle preform automatically;
5.Each is driven by cylinder, does not use oil pump,has the characteristics of no pollution and low noise;
6.Finished product scrap rate is less than 0.1%;
Parameter of Bottle Blow molding Machine
|
ITEM |
Unit |
SL125 |
SL125A |
|
Material |
/ |
PET/PP |
PET |
|
Volume |
L |
0.05-2.0 |
3-5 |
|
Theoritical Output |
Pcs/h |
700-1000 |
600-800 |
|
Neck Size |
MM |
16-120 |
30-50 |
|
Max Length |
MM |
360 |
360 |
|
Max Bottle Diameter |
MM |
170 |
170 |
|
Clamping Force |
KN |
200 |
250 |
|
Power |
Kw |
12 |
24 |
|
Voltage/Frequency(3 phase) |
V/HZ |
220-380v/50-60HZ |
|
|
Working Pressure |
Mpa |
0.8-1.0 |
|
|
Blowing Pressure |
Mpa |
3.0 |
|
|
Main Body Dimension |
LxWxH |
1.65*0.76*2.1 |
1.8*0.85*2.1 |
|
Main Body Weight |
T |
0.68 |
0.95 |
Related Parts
The following parts:cooler, filter,air compressor are optional, we can provide, customers can also equip themselves.
Zhengzhou Shuliy machinery Co., Ltd. was found in 2000. Our company specializes mainly produce plastic processing machine. We not only provides customers with cost-effective products, but also provides first-class service support and solutions. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa and Mongolia. Perfect after-sales service system allows you to worry-free.
Q1: Are you manufacturer or trade company?
A1:We are a professional manufacturer for producing machinery over 10 years.
Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standard, and we have a test on every machine before delivery.
Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best quotation.
Q4:What if the machine is damaged?
A5:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales service.
