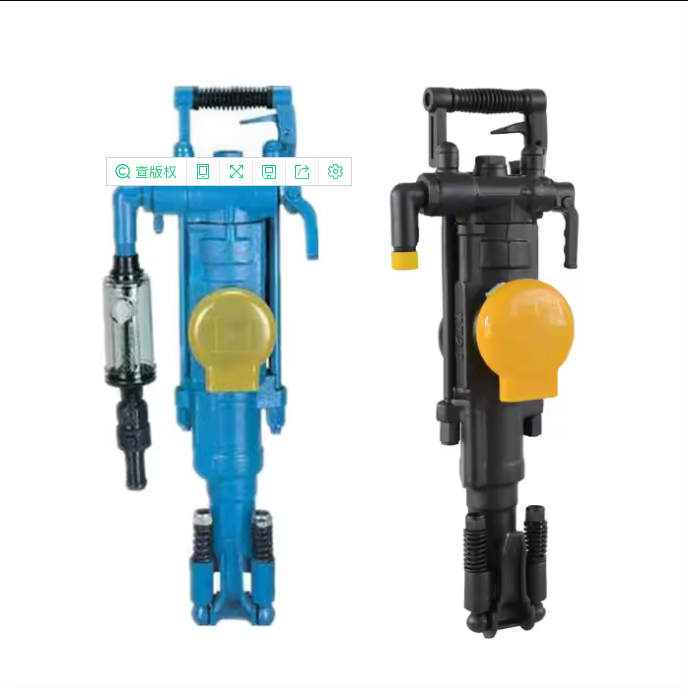

HY18 Higher efficiency and reliability lower air consumption drilling use penumatic rock drill rock breaking drilling machine

HY18 Higher efficiency and reliability lower air consumption drilling use penumatic rock drill rock breaking drilling machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $118

≥100 Sets

US $102

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 18 KG, 18Kg

Marketing Type:: Hot Product 2024

Core Components:: Other

Drilling Diameter:: 34-40mm

Drilling Depth:: Max.4m

Item:: HY18

Lenght:: 556mm

Piston Stroke:: 50mm

Air Comsumption:: ≤22L/s

Drill Diameter:: 34-40mm

Cylider Diameter:: 58mm

Work Pressure:: 0.4-0.5Mpa

Impact Frequency:: ≥30Hz

Drill rod diameter:: H22*108mm

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Hongwuhuan

Dimension(L*W*H):: 556*360*166mm

Weight:: 18 KG, 18Kg

Marketing Type:: Hot Product 2024

Core Components:: Other

Drilling Diameter:: 34-40mm

Drilling Depth:: Max.4m

Item:: HY18

Lenght:: 556mm

Piston Stroke:: 50mm

Air Comsumption:: ≤22L/s

Drill Diameter:: 34-40mm

Cylider Diameter:: 58mm

Work Pressure:: 0.4-0.5Mpa

Impact Frequency:: ≥30Hz

Drill rod diameter:: H22*108mm

Item	HY18
Lenght	556mm
Piston Stroke	50mm
Air Comsumption	≤22L/s
Drill Diameter	34-40mm
Weight	18Kg
Cylider Diameter	58mm
Work Pressure	0.4-0.5Mpa
Impact Frequency	≥30Hz
Drill Depth	4m
Size	556360166mm
Drill rod diameter	H22*108mm

Application

HY18 used for the development of small quarries, small mining operations such as coal mines and limestone mines, rock drilling and blasting in mountain road construction, and farmland water conservancy construction.
