Quick Details
-
Lamp Body Material:
-
Aluminum
-
Product Weight（kg）:
-
5.2
-
LED Light Source:
-
High Bright SMD2835, High Bright SMD2835
-
Input Voltage(V):
-
AC100-277V / 220-240V
-
Lamp Luminous Flux(lm):
-
4800-8000
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
China
-
Brand Name:
-
Olamlight
-
Model Number:
-
OL-TK02-50WD
-

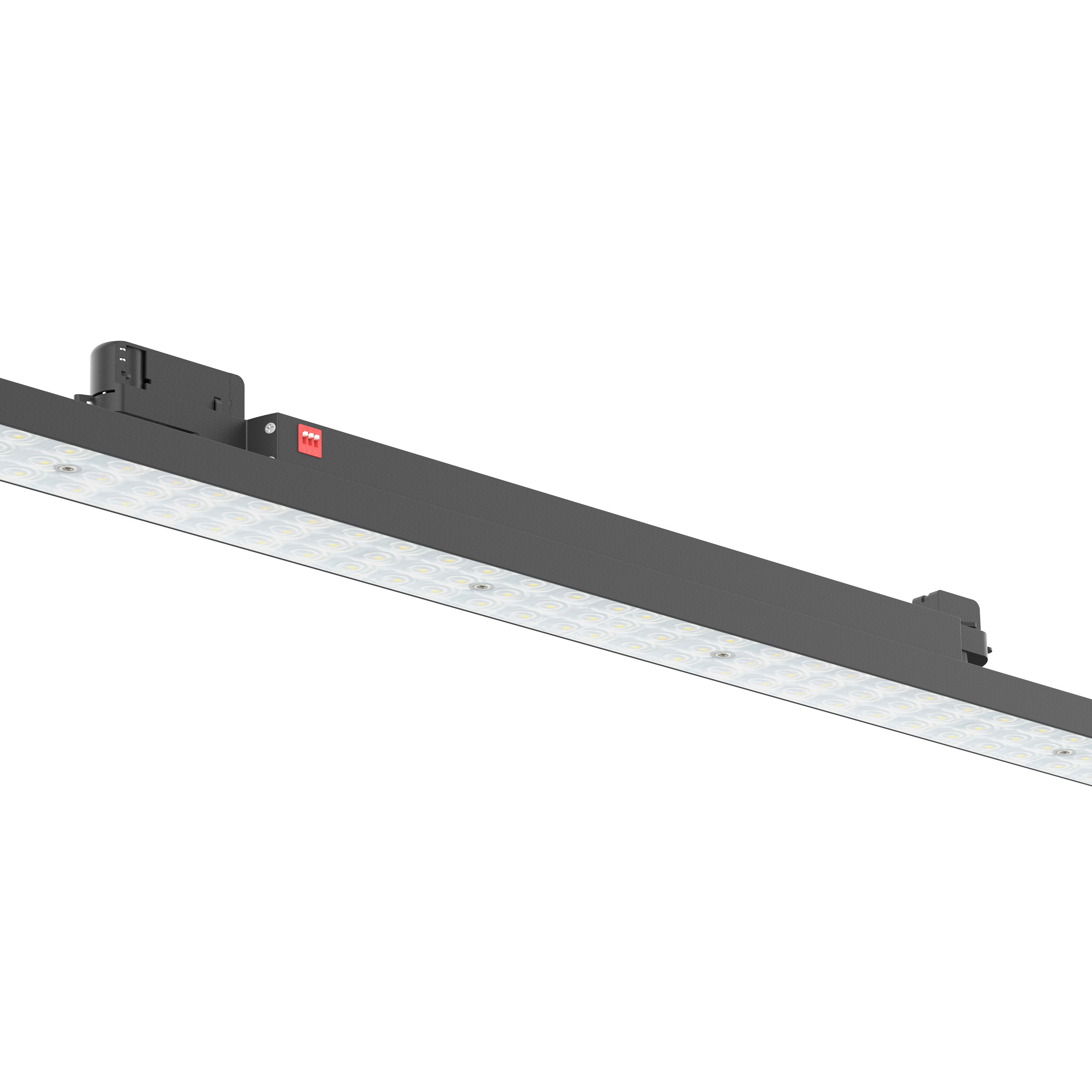

Product name:
-
Led Track Linear Light
-
Dimension:
-
L1152*W65mm
-
Installation:
-
Track
-
Dimmable:
-
YES(0-10V Dimmable)/Dali
-
Power Factor:
-
PF>0.95
-
CCT:
-
3000-6000K
-
Beam Angle:
-
60°/90°/DS20°
-
Body Material:
-
Aluminum + PMMA
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
160
-
Application:
-
Supermarket
-
Design Style:
-
Modern
-
Lamp Body Material:
-
Aluminum
-
Product Weight（kg）:
-
5.2
-
LED Light Source:
-
High Bright SMD2835, High Bright SMD2835
-
Input Voltage(V):
-
AC100-277V / 220-240V
-
Lamp Luminous Flux(lm):
-
4800-8000
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
China
-
Brand Name:
-
Olamlight
-
Model Number:
-
OL-TK02-50WD
-
Product name:
-
Led Track Linear Light
-
Dimension:
-
L1152*W65mm
-
Installation:
-
Track
-
Dimmable:
-
YES(0-10V Dimmable)/Dali
-
Power Factor:
-
PF>0.95
-
CCT:
-
3000-6000K
-
Beam Angle:
-
60°/90°/DS20°
-
Body Material:
-
Aluminum + PMMA
Product Paramenters
|
Technical Parameters--TK Series
|
|
|
|
|
||||
|
Model
|
OL-TK02-30W
|
OL-TK02-40W
|
OL-TK02-50W
|
OL-TK02-45WD
|
||||
|
Dimension
|
L1152*W65mm
|
L1152*W65mm
|
L1152*W65mm
|
L1152*W65mm
|
||||
|
Power
|
30W
|
40W
|
50W
|
45W
|
||||
|
Luminous flux
|
4800-8000lm
|
4800-8000lm
|
4800-8000lm
|
4800-8000lm
|
||||
|
LED qty(pcs)
|
132pcs 1W
|
132pcs 1W
|
132pcs 1W
|
132pcs 1W
|
||||
|
Input Voltage
|
AC220-240V
|
|
|
|
||||
|
Power factor(P.F.)
|
>0.95
|
|
|
|
||||
|
Luminous Efficiency
|
160lm/W
|
|
|
|
||||
|
Bean Angle
|
60°/90°DS20°
|
|
|
|
||||
|
LED source
|
Edison SMD 2835, CRI>80Ra,CRl>95Ra for Option
|
|
|
|
||||
|
Glare free
|
UGR<24
|
|
|
|
||||
|
Dimming
|
Non-flicker Non-Dimming, DALI and 1-10V dimming
|
|
|
|
||||
|
Installtion
|
Track
|
|
|
|
||||
|
Lifetime
|
50000hrs
|
|
|
|
||||
|
Warranty time
|
5 years
|
|
|
|
||||
Details Images
▶
Features:
●Universal Track Adapter
●Power
Switchable
●
Innovation optics
●Up to 160LM/W
●Optional Beam Angle
●
Black and White housing
