Quick Details
-
Dimension(L*W*H):
-
2000*2500*4000mm
-
Power (kW):
-
4.5 kW
-
Weight (KG):
-
650 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw material:
-
Waste Tyre
-
Keyword:
-
tire recycling plant
-
Application:
-
Rubber Processing Machinery
-
Product name:
-
Scrap Tire Recycling Equipment
-
Function:
-
Recycle Waste Rubber
-
Capacity:
-
Hour
-
End product:
-
Rubber Particle
-
Usage:
-
Used Tire Recyling
-
Service:
-
2 years
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HVST
-
Voltage:
-
220
-
Dimension(L*W*H):
-
2000*2500*4000mm
-
Power (kW):
-
4.5 kW
-
Weight (KG):
-
650 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw material:
-
Waste Tyre
-
Keyword:
-
tire recycling plant
-
Application:
-
Rubber Processing Machinery
-
Product name:
-
Scrap Tire Recycling Equipment
-
Function:
-
Recycle Waste Rubber
-
Capacity:
-
Hour
-
End product:
-
Rubber Particle
-
Usage:
-
Used Tire Recyling
-
Service:
-
2 years

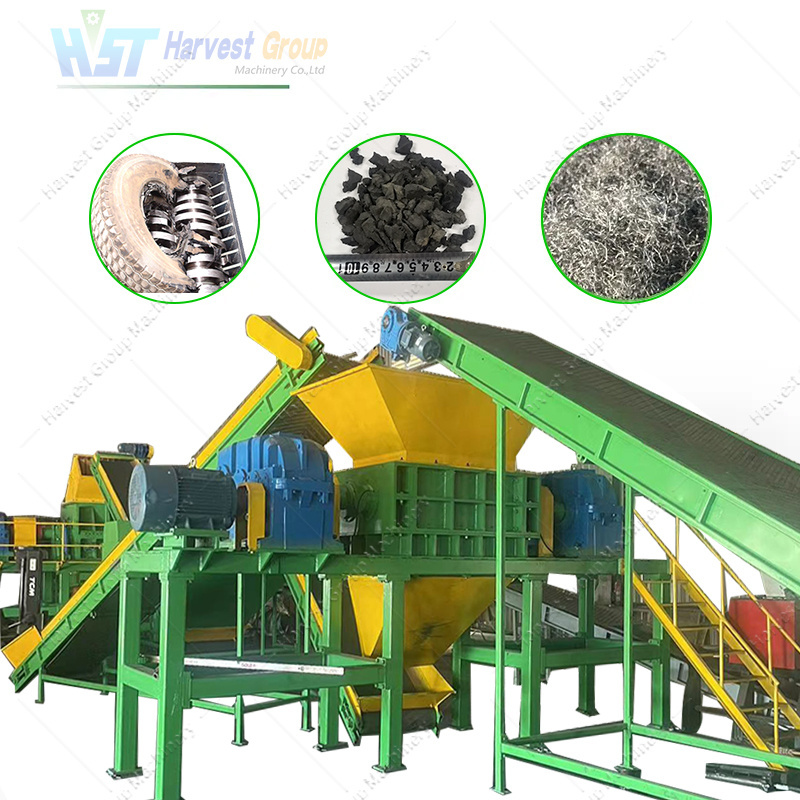

Whole Production Line Display
Fully automatic tire recycling machine
Tire debeader--(Tire cutter)--Tire shredder--Rubber crusher--Main vibrating screen machine--Magnetic separator--Vice vibrating screen machine--Magnetic separator--Nylon fiber separator--Rubber powder
1.Provide the floor space and size required for recycling machine.
2.Provide the complete recycling line layout and its 3D drawing
3.After machine reach the customer's working site, We will assemble the main parts, then mark all the joint parts and send videos to guide the installation and training
Specification of Each Machine
Step 1. Tire Steel Wire Debeader : draw out steel wire from tire circle
|
Model
|
TS-1200
|
|
Capacity
|
3~5 t/h
|
|
Output Size
|
60*60 mm
|
|
Blade Material
|
9Cr2Mo
|
|
Power
|
2*45 kW
|
|
Input Size (diameter)
|
1200 mm
|
|
Blade quantity
|
20 pcs
|
|
Size
|
4.8*2.8*3.5 m
|
Step 2. Tire cutting machine : cut whole tire into 3 pieces or smaller pieces
|
Name
|
TC-1200
|
|
Feed size of tire(mm)
|
≤φ1200
|
|
Capacity(tires/h)
|
30-40 tires/h
|
|
Power(KW)
|
12Kw
|
|
Overall dimensions(m)
|
1.85*0.7*1.765m
|
|
Equipment weight (T)
|
2.5tons
|
Step 3. Tire Shredder: Shred Tire into 50*50mm Rubber Blocks
Two shaft shredders is a kind of industrial shredder specially designed for metal scraps, with low speed, high torque, minimum noise and power consumption, but high productive rate.
All the shredder blades thickness ranges from 25mm-152mm depending on the raw material and final size, while capacity ranges from 1~30 tons per hour.
|
Model
|
Input size
|
Output size
|
Capacity
|
Motor
|
Weight
|
|
TS-800
|
800mm
|
50*50mm
|
1-2t/h
|
2*22kw
|
8t
|
|
TS-1200
|
1200mm
|
60*60mm
|
3-5t/h
|
2*37kw
|
14t
|
|
TS-1600
|
1600mm
|
50-150mm
|
6-8t/h
|
2*45kw
|
18t
|
|
TS-1800
|
1800mm
|
50-150mm
|
7-10t/h
|
2*55kw
|
23t
|
Step 4. Tire Crusher Machine： Crush rubber block into 5-40 mesh rubber powder
|
Model
|
Drum dia
|
Drum length
|
Front roll linear
|
Roll speed radio
|
Motor
|
|
xkp350
|
300mm
|
500mm
|
26.2m/min
|
1:2.5
|
30kw
|
|
xkp400
|
400mm
|
600mm
|
34.5m/min
|
1:2.5
|
45kw
|
|
xkp450
|
450mm
|
760mm
|
38.0m/min
|
1:2.5
|
55kw
|
|
xkp560
|
560mm
|
800mm
|
38.6m/min
|
1:2.5
|
75kw
|
|
xkp560D
|
560mm
|
1000mm
|
42.5m/min
|
1:2.5
|
132kw
|
Packing & Delivery
Customer feedback
Why Choose Us
Zhengzhou Harvest Machinery Co., Ltd
HVET's main focus is to provide our customer cost-effective waste recycling system applied in all kinds of waste recycling like tire/plastic/wood/metal/car/pcb board recycling and could provide output products like chips(50-150mm), mulches( 10-30mm), granules (1-6mm), powder (30-120 mesh) and other size as customer required. HVET also offers machines for specialized markets. The most important to theHVET family of products is the Tire Shredding System. These machines are designed to process used car and truck tires. We offer complete systems to produce separated crumb or powder.
Customer Site
