Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Topright
-
Dimension(L*W*H):
-
33x25x1.5
-
Weight:
-
0.5 KG
-
Warranty:
-
6000hours
-
Working Temperature Range:
-
-200 - 200 ℃
-
Core Components:
-
resistance wire
-
Insulation material:
-
Silicon rubber
-
Heating wire:
-
Ni-Cr or FeCrAl
-
Size:
-
Non-standard
-
Color:
-
red or special as the customer's demand
-
Operation temperature:
-
200c
-
Lead wire:
-
300-1500mm
-
Thermocouple:
-
K or J type
-
thermostat:
-
with or w/o
-
3M self-adhesive:
-
yes
-
is customized:
-
yes
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Topright
-
Dimension(L*W*H):
-
33x25x1.5
-
Weight:
-
0.5 KG
-
Warranty:
-
6000hours
-
Working Temperature Range:
-
-200 - 200 ℃
-
Core Components:
-
resistance wire
-
Insulation material:
-
Silicon rubber
-
Heating wire:
-
Ni-Cr or FeCrAl
-
Size:
-
Non-standard
-
Color:
-
red or special as the customer's demand
-
Operation temperature:
-
200c
-
Lead wire:
-
300-1500mm
-
Thermocouple:
-
K or J type
-
thermostat:
-
with or w/o
-
3M self-adhesive:
-
yes
-
is customized:
-
yes
Silicone Rubber Heater Description:
Silicone rubber heater is made of silicone rubber and glass fiber cloth are compounded sheet, Silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact; the heating elements of nickel alloy foil processing form, more uniform heating. In this way, we can let the heat transfer to any desired place.
Pordutc Feature:
Maximum temperature resistant of insulant: 250
°C
2.Maximum Operating Temperatures: 200
°C
3.Power deviation: 8%
4.insulating resistance: ≥ 5 MΩ
5.Compressive strength: 1500V/5
6.Width: 20mm-1000mm;Length: 25mm-1000mm
7. Fast heat diffusion, Uniform heat transfer, Directly heat objects on;high thermal efficiency, high strength, long service life,work safe uneasy for ageing
Specifition:
| Model | round,square, Rectangular (any shaped) |
| Size: | L:25-1000mm; W:20-1000MM |
| maximum operating | 200 °C |
| Thickness | 1.5mm standard |
| Voltage | 12v,24v,110v,120v,220v,230v,240v,360v (AC & DC) |
| Wattage | 0.3-1w/cm2 |
| Thermostat | with or W/O |
| Thermistor | with or W/O |
| 3M self-adhesive | yes or no |
Note:
1.We support OEM order,and print Brand or Logo on surface.
2.We can custom silicone subber heaters specially(According to your size,voltage,power etc.)
3.Any shaped is available in China Topright Industrial.

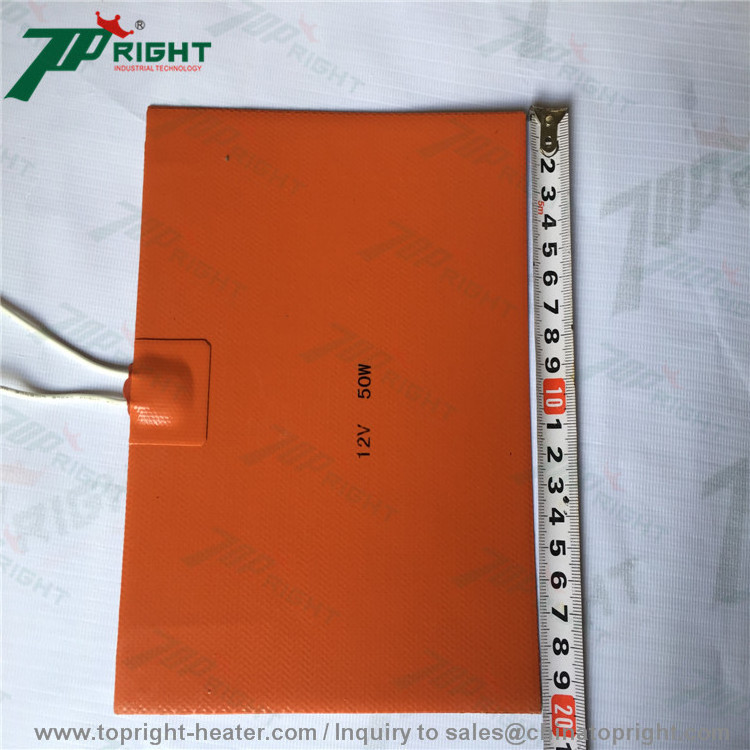

Silicone Rubber Heater Photos:
More Silicone Rubber Heaters In China Topright Industrial:
Silicone rubber heater application:
1.Silicone rubber band heater can be used in damp, no explosive gas atmosphere, industrial equipment pipelines, heat preservation for can and barrel.
2. Silicone rubber heater can be used as a frozen prevention, air conditioner compressor, assisting heating of electrical equipment3 medical devices ( such as blood analyzers, test tube heater, medical care, body slimming belt corset compensation such as heat )
3. Silicone rubber heater can be used as medical equipment and medical care (such as blood tube heater, blood analyzer, heat supplementary for corset and waistband
