Quick Details
-
Warranty:
-
12 Months
-
Loading Capacity:
-
2350kg
-
Drive mode:
-
Hydraulic
-
Surface Treatment:
-
Hot Spray Galvanized
-
Lifting motor power:
-
2.2kw
-
Lifting speed:
-
1.65m/min
-
Power supply:
-
380V/50HZ 3Phase 5wires
-
Size of car:
-
5000mmx1850mmx1550mm/2050mm
-
Access mode:
-
manual
-
Transport Package:
-
Transport Package
-
Safeguard devices:
-
Hydraulic whole protection and anti-fall frame(our patent)
-
After-sales Service:
-
Engineers available to service machinery
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
PJS
-
Warranty:
-
12 Months
-
Loading Capacity:
-
2350kg
-
Drive mode:
-
Hydraulic
-
Surface Treatment:
-
Hot Spray Galvanized
-
Lifting motor power:
-
2.2kw
-
Lifting speed:
-
1.65m/min
-
Power supply:
-
380V/50HZ 3Phase 5wires
-
Size of car:
-
5000mmx1850mmx1550mm/2050mm
-
Access mode:
-
manual
-
Transport Package:
-
Transport Package
-
Safeguard devices:
-
Hydraulic whole protection and anti-fall frame(our patent)
-
After-sales Service:
-
Engineers available to service machinery
Product Description
Operation Principle:

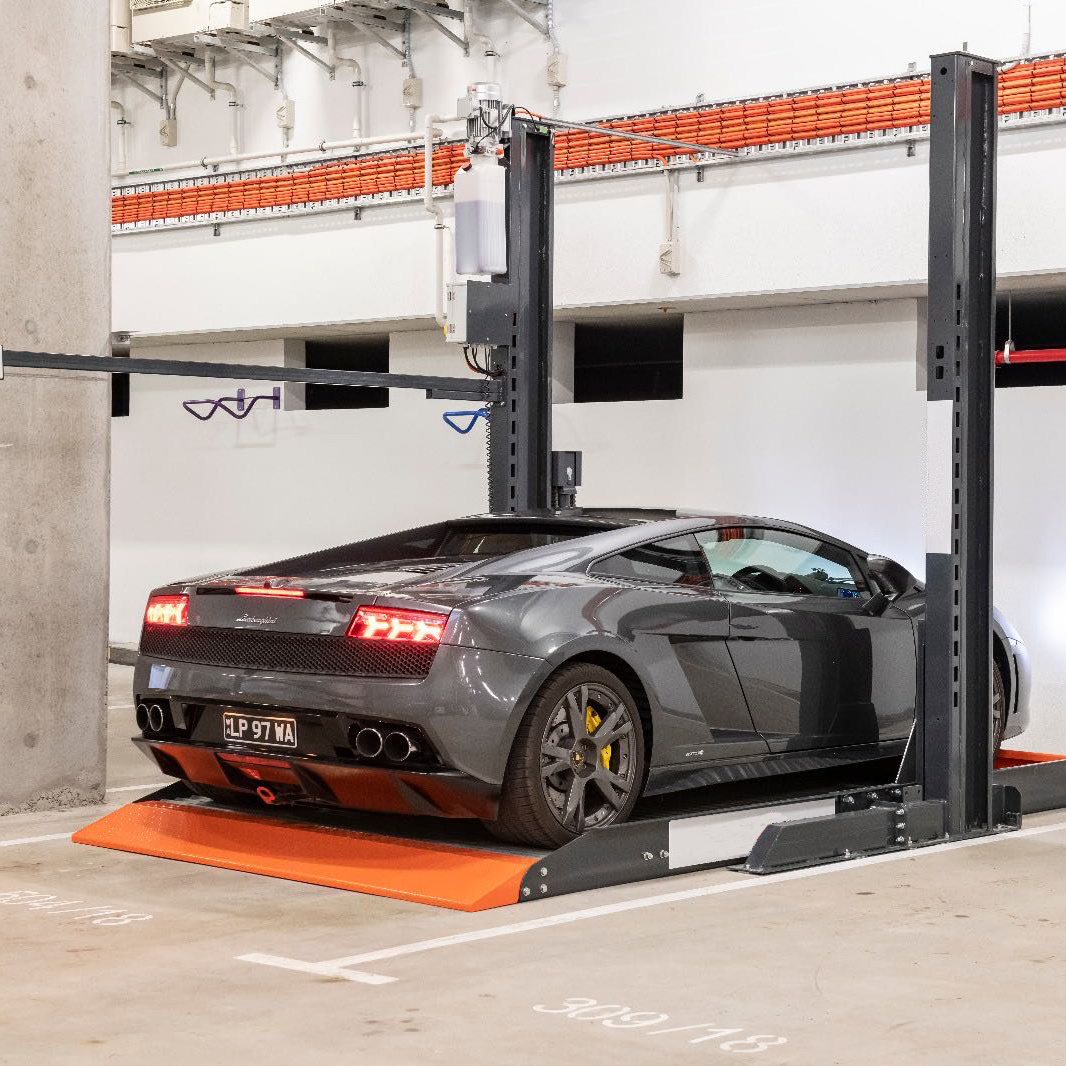

The easy parking car lift is divided into Lingbo-I, Lingbo-II and Ningbo.
The parking equipment includes 2 car parking spaces, the upper one and the lower one. The lower car can be driven in and out directly. The lower car needs to be driven away before parking or retrieving the cars.
The parking equipment includes 2 car parking spaces, the upper one and the lower one. The lower car can be driven in and out directly. The lower car needs to be driven away before parking or retrieving the cars.
Supply Ability
Supply Ability:5000 Set/Sets per Month
Parameters
|
Type
|
Lingbo-I
|
Lingbo-II
|
Ningbo
|
||
|
Equipment size（L×W×H）
|
5.7m×2.5m×4m
|
6.2m×2.5m×3.1m
|
6.12m×2.55m×3m
|
||
|
Drive mode
|
Motor+ wire rope
|
hydraulic
|
Motor+ chain
|
||
|
Car size（L×W×H）
|
sedan≤5m×1.85m×1.55m
|
sedan≤5m×1.85m×1.55m
|
SUV≤5m ×1.85m×1.55m
|
||
|
|
SUV≤5m×1.85m×2.05m
|
|
|
||
|
Car weight
|
≤2000kg
|
|
|
||
|
Motor power & speed
|
2.2kw 4.5m/min
|
2.2kw 1.65 m/min
|
2.2kw 2.8 m/min
|
||
|
Power supply
|
3 phase 5 wires 380V 50Hz
|
|
|
||
|
Drive mode
|
Manual
|
|
|
||
Packing & Delivery
Packing：
Four-step packing to make sure safe transport.
1)Iron frame to fix equipment;
2)All structures fixed on the frame by screws;
3)All electric wires and motor are put into iron box;
4)Iron frame and box will be covered by stretch film;
1)Iron frame to fix equipment;
2)All structures fixed on the frame by screws;
3)All electric wires and motor are put into iron box;
4)Iron frame and box will be covered by stretch film;
Shipping:
1) Export Port: Qing Dao China.
2) Shipping time: Within 60 days after receive deposit.
2) Shipping time: Within 60 days after receive deposit.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
