Quick Details
-
Brand Name:
-
GBPI
-
Model Number:
-
Y110 2.0
-
Product name:
-
OTR
-
Application:
-
Packaging Industrial
-
Certificate:
-
ISO
-
Power supply:
-
AC 220V 50Hz
-
Function:
-
Test Oxygen Permeation
-
Standard:
-
ASTM
-
Chamber:
-
1 Piece
-
Sample number:
-
1 Piece
Quick Details
-
Warranty:
-
2 years, 2 years
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GBPI
-
Model Number:
-
Y110 2.0
-
Product name:
-
OTR
-
Application:
-
Packaging Industrial
-
Certificate:
-
ISO
-
Power supply:
-
AC 220V 50Hz
-
Function:
-
Test Oxygen Permeation
-
Standard:
-
ASTM
-
Chamber:
-
1 Piece
-
Sample number:
-
1 Piece
Product Description

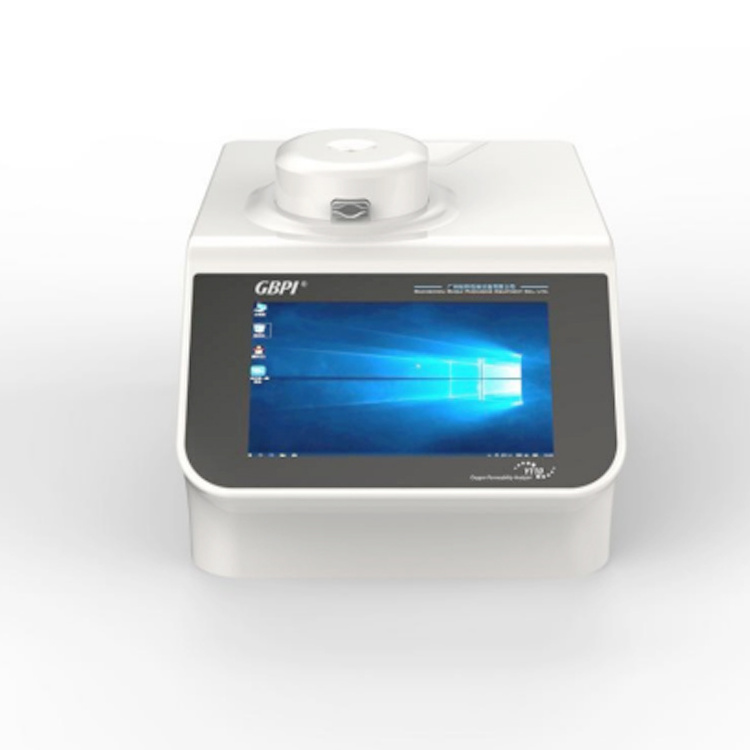

Oxygen Permeability Analyzer astm d3985 Oxygen Permeability testing machine
This machine is based on the test principle of the Coulomb oxygen analysis sensor with reference to ASTM D 3985 standard. It is used to determine the oxygen transmission rate of plastic film or sheet materials.
Apply for:
1) Plastic film, composite film, aluminum foil, aluminized film, etc.;
2) Plastic sheets, plates, rubber, ceramics, etc.;
3) Packaging containers, such as bottles, bags, bowls, etc.;
4) Expand applications, such as solar backplanes, liquid crystal display films, medical patches, etc.
Used in quality inspection, drug inspection, scientific research, packaging, film, food, pharmaceutical, daily chemical, electronics and other industries.
Standard
ASTM D3985, ASTM F2622, ASTM F1927, ASTM F1037, ISO 15105-2, JIS K-7126-B, DIN 53380-3
Standard
ASTM D3985, ASTM F2622, ASTM F1927, ASTM F1037, ISO 15105-2, JIS K-7126-B, DIN 53380-3
Specification
|
Technical Specifications
|
|
|
|
Item
|
Technical parameters
|
|
|
Test range
|
0.05~1000 cm3/(m2·24h)（Max 260000 cm³/(m2·24h) can be measured through adding the mask）
|
|
|
Resolution
|
0.001 cm3/(m2·24h)
|
|
|
Temperature range
|
15~45℃
|
|
|
Temperature accuracy
|
±0.1℃
|
|
|
Humidity range
|
Dryness=0%RH，30~90%RH，100%RH
|
|
|
Humidity accuracy
|
±1%RH
|
|
|
Test area
|
50.24 cm2（minimum 0.785 cm2 optional customization）
|
|
|
Sample size
|
Φ100 mm
|
|
|
Sample thickness
|
≤3 mm
|
|
|
Number of samples
|
1 piece
|
|
|
Carrier gas pressure
|
≥0.1 MPa
|
|
|
Gas supply port
|
Φ3 mm gas port
|
|
|
Carrier gas port
|
1/8 inch
|
|
|
Instrument size
|
600 mm×400 mm×330 mm
|
|
|
Power
|
750 W
|
|
|
Power supply
|
AC 220 V，50 Hz
|
|
|
|
|
|
