Quick Details
-
Place of Origin:
-
made in China
-
Brand Name:
-
QDGY
-
Car Model:
-
Jee p Wr angler, J eep cherokee
-
Product type:
-
J eep Wr angler cherokee Front Stainless steel braided brake line kit
-
Application:
-
Jee p Wr angler cherokee Front Stainless steel braided brake line kit
-
Material:
-
Stainless steel 304 and PTFE Line
-
Standard:
-
DOT SAE J1401 FMVSS106,ISO9001:2015
-
OEM:
-
Available
-
Sample:
-
Available
-
Surface:
-
Transparent Clear PVC/PU Cover
-
Placement on Vehicle:
-
Front Brake Line
-
Inner Material:
-
PTFE HOSE
-
Stype:
-
Flexible stainless steel braided brake hose line
Quick Details
-
OE NO.:
-
Any oem number can produce
-
Size:
-
3.2*7.5mm 1/8
-
Warranty:
-
1 yar
-
Place of Origin:
-
made in China
-
Brand Name:
-
QDGY
-
Car Model:
-
Jee p Wr angler, J eep cherokee
-
Product type:
-
J eep Wr angler cherokee Front Stainless steel braided brake line kit
-
Application:
-
Jee p Wr angler cherokee Front Stainless steel braided brake line kit
-
Material:
-
Stainless steel 304 and PTFE Line
-
Standard:
-
DOT SAE J1401 FMVSS106,ISO9001:2015
-
OEM:
-
Available
-
Sample:
-
Available
-
Surface:
-
Transparent Clear PVC/PU Cover
-
Placement on Vehicle:
-
Front Brake Line
-
Inner Material:
-
PTFE HOSE
-
Stype:
-
Flexible stainless steel braided brake hose line
87-95 97-06 Tj 04-06 4WD Yj J eep Wrangler 84-01 4WD 2WD Jee p Cherokee Xj 4-6 Inch Lift Front Stainless Steel Braided Brake Line Kits
Product details
- Fits: 97-06 4WD Jeep Wrangler TJ; 04-06 4WD Jeep Wrangler TJ Unlimited; 87-95 4WD Jeep Wrangler YJ; 84-01 4WD/2WD Jeep Cherokee XJ
- Technical notes: only fits models with 4-6 inch of suspension Lift

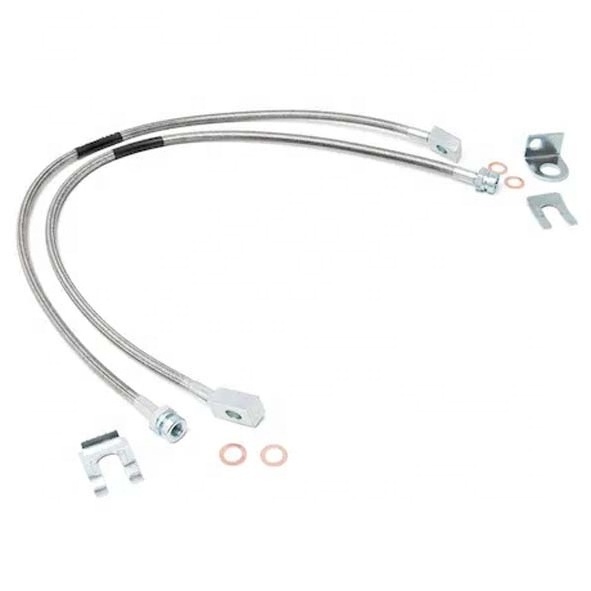

- In the box: (2) Stainless Steel braided Brake Lines, hardware
Dot SAE J1401 brake line specifications (brake line assembly=brake line+fittings+strictly quality control )
Hose as follows:
Stainless steel braided Teflon brake hose Specifications:
| QDGY Part NO. | Inner Diameter | Outer Diameter | Outer layer | Stainless steel braid | Inner layer |
| GSG020 | 1/8"(3.2mm) | 0.295"(7.5mm) | PVC/TPU | 304 stainless steel | Teflon/PTFE |
| GSG026 | 3/16"(4.8mm) | 0.354"(9mm) | |||
| GSG028 | 1/8"(3.2mm) | 0.255"(6.5mm) | no covering | ||
| GSG024 | 3/16"(4.8mm) | 0.3"(7.6mm) |
Automobile brake hose (commonly known as brake pipe) are components used in automobile brake system. Its main function is to transfer the brake medium in the car brake system. Ensure that the braking force is transmitted to the car's brake lining or brake calipers to generate braking force so that the braking is effective at any time. According to the different working medium, the brake hose is divided into Hydraulic Brake Hose and Air Brake Hose. Air brakes generally use drum brakes. More suitable for Trucks. Generally, hydraulic brakes are mostly disc type, which is suitable for Motorcycle ,Passenger cars,Cars,Truck..etc.
Application:
For use in braking system of the vehicle.
1.These Hoses are teflon lined and are compatible with all brake fluids and feature a braided stainless outer covering to resist abrasion and corrosion. These lines are designed to withstand high pressure and are very flexible and can be used in the tightest of situations. These hoses can be used for many other applications such as gauge, turbo and vacuum lines
2.Production under ISO 9001:2008 and CE control. High quality product and customer's
3.satisfaction is our pursuit. Good faith cooperation. Bright future.
4.A reinforcement 304/316 stainless steel wire cover adds strength and durability to withstand high working pressures and harsh environments.Burst pressure reaches to 12,000 psi
Stainless steel braided PTFE Teflon brake hose Features:
-
304 stainless steel braid reinforced hose
Meets FMVSS-106 and SAE J1401 specifications
Every brake hose pressure tested to 3000 psi( 207 bar or 20.7Mpa )
Burst pressure:minimum 7250 psi ( 500 bar or 50Mpa )
Temperature range -73°C to 260°C
Compatible with DOT3,DOT4 and DOT4+ brake fluides
Avaliable PVC /TPU color covering :
Brake Line End Fittings as follows:
We can produce fitting according to your drawings or samples ,or your description .We have our design and research department to cooperate with you that to meet your any demond for your market development .We can accept usual practice fittings ,also we like the new fittings development and we have capacity to help you to research and develop the new products.
