Quick Details
-
Weight:
-
1000 KG
-
Place of Origin:
-
Zhejiang, China
-
Voltage:
-
380
-
Power:
-
15KW
-
Product Type:
-
Customized
-
Product name:
-
Embossing machine production line
-
Reducer:
-
XWD96-391-15-4
-
Flower roll specification:
-
510x1400mm
-
Flower roller pattern:
-
convex hull-corn grain-Pwarl pattern-ball and other patterns
-
Pressure plate:
-
thickness 0.25-0.5 mm,width less than 1250mm plate
-
Flower roller material:
-
9Cr2Mo
-
Embossing mode:
-
the upper and lower concave rollers are opposite
-
Pressure adjustment:
-
screw pressure
-
Motor power:
-
380V, 15Kw ,50Hz,wire speed 1-60M/min
Quick Details
-
Machinery Capacity:
-
-
-
Brand Name:
-
CHZN
-
Year:
-
2022
-
Weight:
-
1000 KG
-
Place of Origin:
-
Zhejiang, China
-
Voltage:
-
380
-
Power:
-
15KW
-
Product Type:
-
Customized
-
Product name:
-
Embossing machine production line
-
Reducer:
-
XWD96-391-15-4
-
Flower roll specification:
-
510x1400mm
-
Flower roller pattern:
-
convex hull-corn grain-Pwarl pattern-ball and other patterns
-
Pressure plate:
-
thickness 0.25-0.5 mm,width less than 1250mm plate
-
Flower roller material:
-
9Cr2Mo
-
Embossing mode:
-
the upper and lower concave rollers are opposite
-
Pressure adjustment:
-
screw pressure
-
Motor power:
-
380V, 15Kw ,50Hz,wire speed 1-60M/min
Product Parameter
|
Embossing roller size
|
Φ510mm; width 1400mm
|
|
Embossing roller pattern
|
Convex hull, corn grain, Pearl pattern, ball and other patterns. (Patterns can be customized.)
|
|
Aluminum plate size
|
Thickness0.25-0.5mm
|
|
|
Max. width 1250mm
|
|
Embossing roller material
|
9Cr2Mo
|
|
Embossing mode
|
Upper and lower concave-convex rollers Opposing pressure
|
|
Pressure adjustment
|
hydraulic unilateral 50T
|
|
Transmission mode
|
Gear transmission
|
|
Voltage and Power
|
380V/50HZ 3P;
15KW (wire speed 1-60m/min.) |
|

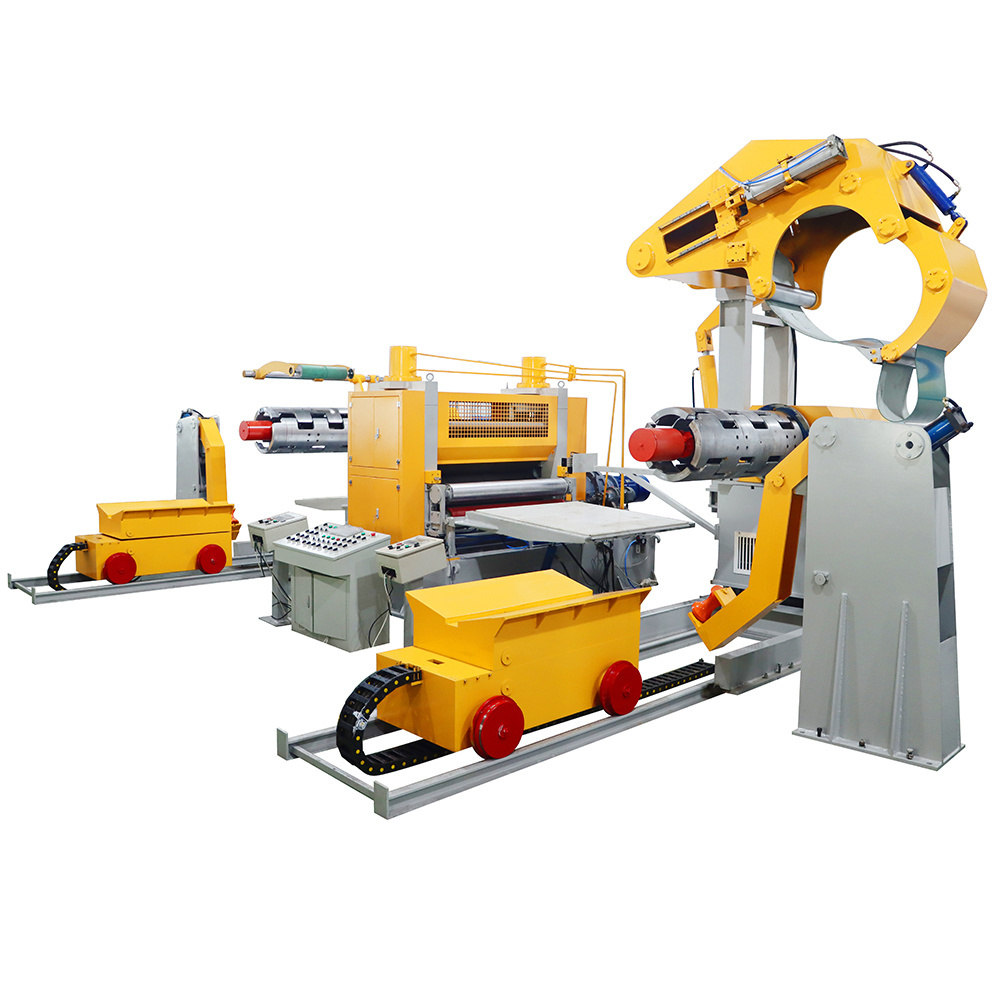

Equipment composition
|
1 embossing machine, 1 set of uncoiler and hydraulic trolley, 1 set of winder and hydraulic trolley, 1 set of hydraulic station, 1
set of control cabinet |
