Quick Details
-
Model Number:
-
/
-
Brand Name:
-
Beoncy
-
Body material:
-
Ductile Iron GGG40/GGG50
-
Product name:
-
DIN F4 gate valve
-
Working pressure:
-
PN10/16
-
Standard:
-
ANSI BS DIN JIS
-
Color:
-
Customized Color
-
Size:
-
DN40-DN1200
-
Connection:
-
Flange Connection
-
Seal Material:
-
hard seal /metal seal soft seal/rubber seal
-
Stem:
-
Stainless Steel:304/410/420 carbon steel
-
Packing:
-
Customized Packing
Quick Details
-
Port Size:
-
DN40-DN1200
-
Warranty:
-
18 months
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
/
-
Brand Name:
-
Beoncy
-
Body material:
-
Ductile Iron GGG40/GGG50
-
Product name:
-
DIN F4 gate valve
-
Working pressure:
-
PN10/16
-
Standard:
-
ANSI BS DIN JIS
-
Color:
-
Customized Color
-
Size:
-
DN40-DN1200
-
Connection:
-
Flange Connection
-
Seal Material:
-
hard seal /metal seal soft seal/rubber seal
-
Stem:
-
Stainless Steel:304/410/420 carbon steel
-
Packing:
-
Customized Packing

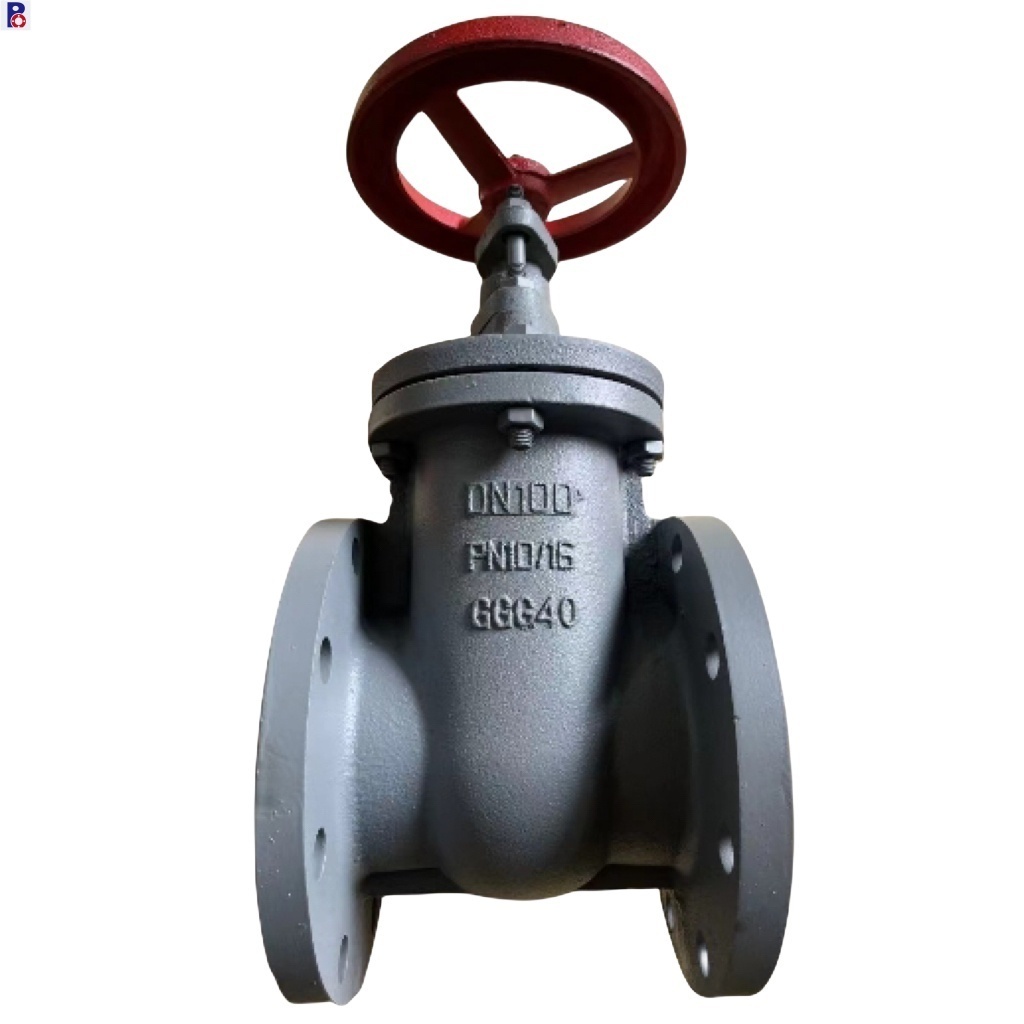

Non-Rising Stem Metal Seated Gate Valve (DIN 3202 F4/F5)
Conforms to DIN3352
Face to Face dimensions conform toF4/F5 of DIN3202
Flanges drilled to DIN2532/DN2533
Suita b le media: water, oil, gas.
| DN | PART NAME | MATERIAL | STANDARD |
| 1 | Body | Gray Cast Iron | GG25 |
| 2 | Body Seat Ring | Brass | |
| 3 | Wedge | Ductile Iron | GGG50 |
| 4 | Wedge Seat Ring | Brass | |
| 5 | Stem Nut | Brass | |
| 6 | Stem | Stainless Steel | 2Cr13 |
| 7 | Bonnet Bolt | Carbon Steel | A3 |
| 8 | Nut | Carbon Steel | A3 |
| 9 | Washer | Carbon Steel | A3 |
| 10 | Gasket | Nbr | |
| 11 | Bonnet | Gray Cast Iron | GG25 |
| 12 | O-Ring | Nbr | |
| 13 | Locating Ring | Brass | |
| 14 | O-Ring | Nbr | |
| 15 | Bonnet Nut | Brass | |
| 16 | Minipad | Tfl | |
| 17 | Dust Ring | Nbr | |
| 18 | Wheel | Ductile Iron | GGG25 |
| 19 | Washer | Carbon Steel | A3 |
| 20 | Bolt | Carbon Steel | A3 |
Beoncy , be best choice!!!
1.Q: Manufacturer or trading company?
A: Manufcaturer
2.Q: Your main products?
A: Butterfly valve,gate valve,check valve,Y-strainer,rubber joint ,ect.
3.Q: Sample available?
A: Yes, free sample.
4. Q: Pressure test before shipping?
A: We have twice pressure test .
5.Q: Payment term?
A: T/T L/C D/A D/P Western Union MoneyGram
6.Q: Price term?
A:
EXW FOB CIF CFR
7.Q: Guarantee?
A: 12-24 months.
8.Q: OEM and ODM?
A: Yes, sure.
9. Q: Delivery date?
A: 7 days to 1 months depends.
