2. IP65 standard, dustproof and waterproof. No problem to work for a long time outside.
3. High brightness, over 5500 nits, can work well in day time even under direct sunshine
- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Full color
-
Panel Size:
-
768*768mm, 768*768mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P8
-
Brightness:
-
5000cd, 5000cd, 5500cd/sqm
-
pixel density:
-
40000, 40000
-
Lifespan (hours):
-
100000, 100000
-
IP Rating:
-
65, 65
-
HS Code:
-
8528591090
-
Resolution:
-
40000
-
View Angle（H/V）:
-
140/160, 140/160
-
Usage:
-
Outdoor
-
Screen Dimension:
-
Customized Size
-
Certificate:
-
ce&rosh
-
Warranty:
-
2 Years
-
Module size:
-
256*128mm
-
Life span:
-
100000hours
-
LED chip:
-
Smd3528
-
Cabinet size:
-
768*768mm
Quick Details
-
Application:
-
Outdoor, Outdoor fixed advertising
-
Type:
-
LED
-
Brand Name:
-
SQ
-
Color:
-
Full color
-
Panel Size:
-
768*768mm, 768*768mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P8
-
Brightness:
-
5000cd, 5000cd, 5500cd/sqm
-
pixel density:
-
40000, 40000
-
Lifespan (hours):
-
100000, 100000
-
IP Rating:
-
65, 65
-
HS Code:
-
8528591090
-
Resolution:
-
40000
-
View Angle（H/V）:
-
140/160, 140/160
-
Usage:
-
Outdoor
-
Screen Dimension:
-
Customized Size
-
Certificate:
-
ce&rosh
-
Warranty:
-
2 Years
-
Module size:
-
256*128mm
-
Life span:
-
100000hours
-
LED chip:
-
Smd3528
-
Cabinet size:
-
768*768mm
Product Description
1. High refresh rate: Over 1920Hz/s, no scan lines when taking video and pictures.
|
Parameter
|
Value
|
|
Pixel Configuration
|
SMD3528
|
|
Pixel pitch (mm)
|
8
|
|
Pixel matrix per panel
|
96*96
|
|
Pixel density (pixelsm)
|
15625
|
|
Cabinet Dimensions(L*W) mm
|
768*768
|
|
Module Dimensions(L*W) mm
|
256*128
|
|
Panel material
|
die-casting aluminum or iron
|
|
Cabinet weight (kg/panel)
|
15
|
|
Colour grayscale (bit)
|
12-16bit
|
|
Gray scale per colour (level)
|
40096-65536
|
|
Refresh rate (hz)
|
1920
|
|
Driving type
|
1/4
|
|
Signal transmission distance (m)
|
cats cable:<100m single mode fiber:<10km
|
|
Brightness (nit)
|
>5500
|
|
Optimal horizontal viewing angle (degree)
|
160
|
|
Optimal vertical viewing angle (degree
|
140
|
|
Ac input voltage (v)
|
Ac100-240v
|
|
Ac input frequency (hz)
|
50/60
|
|
Ac input power maximum value (wm)
|
800
|
|
Ac input power typical value (wm)
|
400
|
|
Storage temperature (℃)
|
-40-60
|
|
Work temperature (℃)
|
-15-45
|
|
IP rating (front/rear)
|
IP65
|
|
Storage humidity (rh)
|
10%-90% non -condensing
|
|
Working humidity (rh)
|
10%-90% non-condersing
|
|
Lifetime Typical value (hrs)
|
100000
|
Led display module
Use SMD 3535 big led chip , the module size is 256*128 mm, the resolution is 32*16=512 dots
Use SMD 3535 big led chip , the module size is 256*128 mm, the resolution is 32*16=512 dots
Module
Module
Module
Led display cabinet
It is iron waterproof cabinet , the size is 768*768 mm, this is standard size , It can also be customized，the cabinet material we also have aluminum and die-casting aluminum.
It is iron waterproof cabinet , the size is 768*768 mm, this is standard size , It can also be customized，the cabinet material we also have aluminum and die-casting aluminum.
Led display aging test time
48 hours' led module aging test and 72 hours' led display aging test before packing.this is very important
48 hours' led module aging test and 72 hours' led display aging test before packing.this is very important
Control methods
Through computer, wifi, 4G, usb, remote, internet, mobile, ipad, etc?
Through computer, wifi, 4G, usb, remote, internet, mobile, ipad, etc?
Yes, you can control in your convenient management.
Many screens together?
Without problem, your laptop can manage all of them whenever and wherever
Many screens together?
Without problem, your laptop can manage all of them whenever and wherever
Production Application

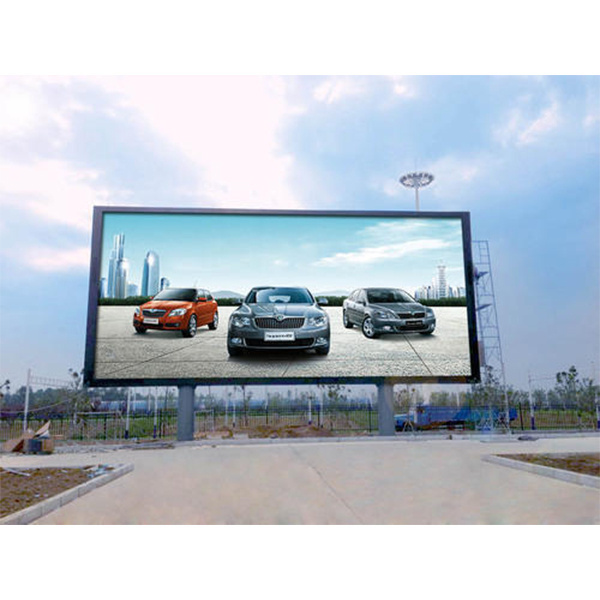

Outdoor led screen can work under the sun for high brightness and large viewing angle with a certain function of a windbreak, rainproof and waterproof.
Which is widely used as outdoor advertising and information media at station, square and shopping mall.
Outdoor led screen can be divided into a pillared screen, wall-mounted screen, and floor-standing screen, etc.
Welcome to contact with us and more information will send to you
More information will send to you!
Mobile:0086-18220591195
Mail address: sales@sqleddisplay.com
You also can send inquiry from here, I will reply you within one hour.
Product packaging
Wood case package
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided,
The size is customized.one wood case about 25-30 kg.
