Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EMP
-
Model Number:
-
EMP-DM-007
-
Torque:
-
0.5-4N.m
-
Product Name:
-

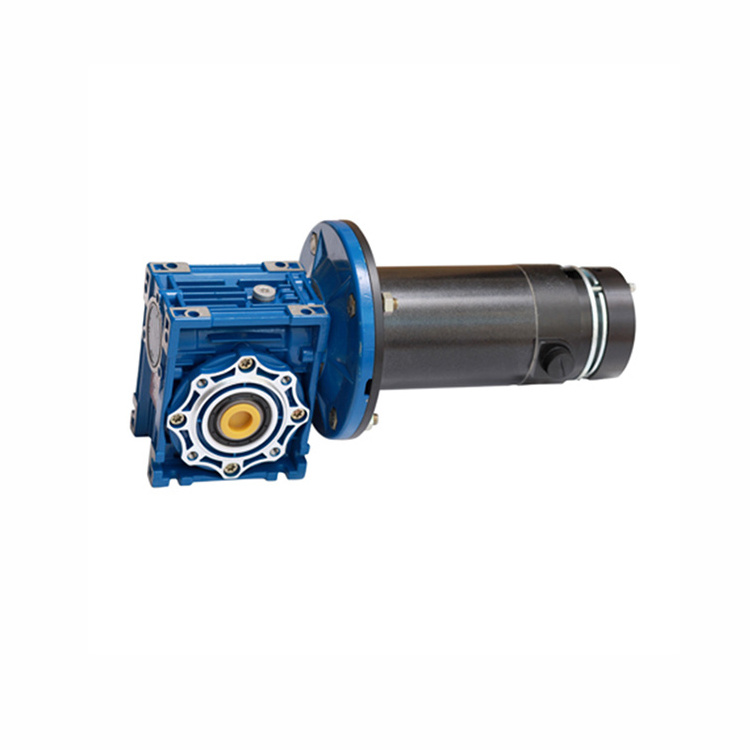

dc 12v gear motor with pulley
-
Certification1:
-
CCC
-
Certification2:
-
ce
-
Certification:
-
ISO9001
Quick Details
-
Speed(RPM):
-
50-500rpm
-
Continuous Current(A):
-
0.5-40A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EMP
-
Model Number:
-
EMP-DM-007
-
Torque:
-
0.5-4N.m
-
Product Name:
-
dc 12v gear motor with pulley
-
Certification1:
-
CCC
-
Certification2:
-
ce
-
Certification:
-
ISO9001
DRAWING
M3-6464GB
M4-6464GB
All our motors, brushed and brushless, can be fitted with either right angle or in-line gear boxes.
Right Angle
Available Sizes
|
Size 30 |
Size 40 |
Size 50 |
Size 63 |
|
|
D56B14 |
X |
|
|
|
|
D63B5 |
X |
X |
|
|
|
D63B14 |
|
X |
|
|
|
D71B5 |
|
X |
X |
|
|
D71B14 |
|
X |
X |
|
|
D80B5 |
|
|
X |
X |
|
D80B14 |
|
|
X |
X |
Available Ratios
|
G/B Size |
30 |
40 |
50 |
63 |
|
|
7.5 : 1 |
Torque (M2) |
8 |
16 |
34 |
68 |
|
10 : 1 |
10 |
21 |
44 |
89 |
|
|
15 : 1 |
14 |
31 |
63 |
127 |
|
|
20 : 1 |
18 |
39 |
81 |
166 |
|
|
25 : 1 |
21 |
47 |
71 |
146 |
|
|
30 : 1 |
24 |
53 |
81 |
167 |
|
|
40 : 1 |
19 |
44 |
68 |
143 |
|
|
50 : 1 |
23 |
38 |
80 |
124 |
|
|
60 : 1 |
19 |
43 |
89 |
140 |
|
|
80 : 1 |
14 |
34 |
72 |
115 |
The speed at the gear output relates to the motor speed with the following formulae:
Nq = Nm / Ratio
Tq = Tm x Ratio x η%
Where: η = Efficiency of the gear box
Tm = Motor torque
Tq = Gear box torque
Nm = Motor speed
Nq = Gear speed
M3-6464GB
M4-6464GB
Q:1.What kind of motors you can provide?
A: Ningbo EMP DC Motor Dynamics Co., Ltd. is a wholly owned foreign venture in China dealing with the design development and manufacture of DC motors of both brushed and brushless. Our products include permanent magnet motors in metric & NEMA frames (brushed and brushless), gear motors and controllers.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
