Quick Details
-
Model Number:
-
LEP-1530
-
Voltage:
-
3 phase/380V/50-60Hz
-
Rated Power:
-
8.5-15KW
-
Dimension(L*W*H):
-
3800*2200*1700mm
-
Weight (KG):
-
1200 KG
-
Year:
-
2023
-
Marketing Type:
-
New Product 2023
-
Working area:
-
1500mm*3000mm
-
Plasma power:
-
63A/120A/160A/200A/300A/400A
-
Control system:
-
Starfire Control System
-
Drive motor:
-
Stepper Motor Driver
-
Software:
-
Fastcam Software
-
Cutting material:
-
stainless carbon steel iron copper aluminum
-
Table:
-
Sawtooth Table
-
Cutting thickness:
-
0-40mm
-
Cutting speed:
-
0-8000mm/min
-
Color:
-
Customer Choose
Quick Details
-
Dimensions:
-
1500*3000
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEEDER CNC
-
Model Number:
-
LEP-1530
-
Voltage:
-
3 phase/380V/50-60Hz
-
Rated Power:
-
8.5-15KW
-
Dimension(L*W*H):
-
3800*2200*1700mm
-
Weight (KG):
-
1200 KG
-
Year:
-
2023
-
Marketing Type:
-
New Product 2023
-
Working area:
-
1500mm*3000mm
-
Plasma power:
-
63A/120A/160A/200A/300A/400A
-
Control system:
-
Starfire Control System
-
Drive motor:
-
Stepper Motor Driver
-
Software:
-
Fastcam Software
-
Cutting material:
-
stainless carbon steel iron copper aluminum
-
Table:
-
Sawtooth Table
-
Cutting thickness:
-
0-40mm
-
Cutting speed:
-
0-8000mm/min
-
Color:
-
Customer Choose
Product Description

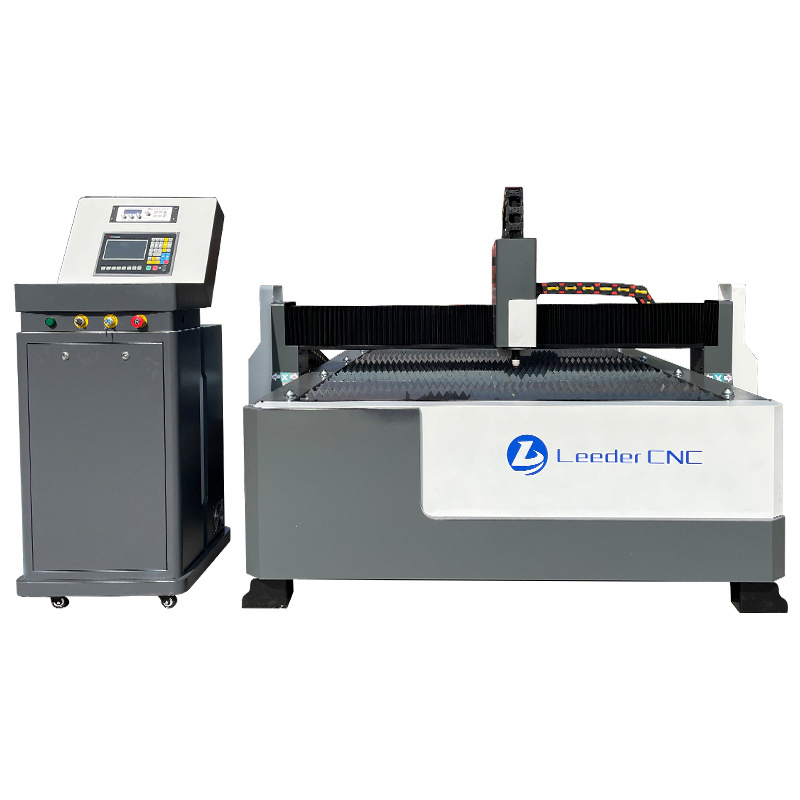

Machine Features
* The beam uses light structural design,with good rigidity structure, welded lathe bed of thick profiled steel, more solid and stable.
* The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.
* Support FASTCAM nesting software such as the standard G code path generated file can also be also can change software to read AUTOCAD softwares produce DXF form documents. U disk exchange control system processing files, easy to operate.
* Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States Hypertherm plasma source the machine can reach threshold.
* The spray torch is specially designed for cutting 304 stainless steel. Its main function is to eliminate dust and protect the color of stainless steel on the cutting surface. It solves the problems for users with high environmental protection requirements and greatly reduces the harm of cutting dust to the human body
* Advanced material inclined discharging design.
* The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.
* Support FASTCAM nesting software such as the standard G code path generated file can also be also can change software to read AUTOCAD softwares produce DXF form documents. U disk exchange control system processing files, easy to operate.
* Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States Hypertherm plasma source the machine can reach threshold.
* The spray torch is specially designed for cutting 304 stainless steel. Its main function is to eliminate dust and protect the color of stainless steel on the cutting surface. It solves the problems for users with high environmental protection requirements and greatly reduces the harm of cutting dust to the human body
* Advanced material inclined discharging design.
Specification
|
Model
|
LEP-1530
|
|
Working size
|
1500x3000mm
|
|
Plasma power
|
63/100/120/160/200/300/400A
|
|
Optional power source
|
Hypertherm powermax 45/65/85/105/125/200A
|
|
Working material
|
Iron, Steel, Aluminum sheets, Galvanized sheets,Titanium Plates
|
|
Table Type
|
Sawtooth table (Knife table And Water table can be optional)
|
|
Transmission System
|
Rack Pinion And Hiwin Linear Rails For X/Y
|
|
Driving System
|
Stepper Motor And Drivers(Servp motor is optional)
|
|
Operating System
|
Starfire Controller/Start Controller/JiaoDa fangling controller
|
|
Working Material
|
Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal
|
|
Cutting thickness
|
0-40mm
|
|
Cutting speed
|
1-10000mm/min
|
|
Working power
|
8.5-15KW
|
|
Input voltage
|
380V/3ph(220V/3ph is optional)
|
|
Command
|
G code, *uoo, *mmg, *plt
|
|
Operation language
|
English (Option)
|
|
Spare Parts
|
Nozzle and Electrode etc
|
