Quick Details
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FSHLASER
-
Weight (KG):
-
22 KG
-
Laser wavelength:
-
355nm
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
DXF, DXP, LAS, PLT
-
Laser Type:
-
UV
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FSHLASER
-
Weight (KG):
-
22 KG
-
Laser wavelength:
-
355nm
Product Overview

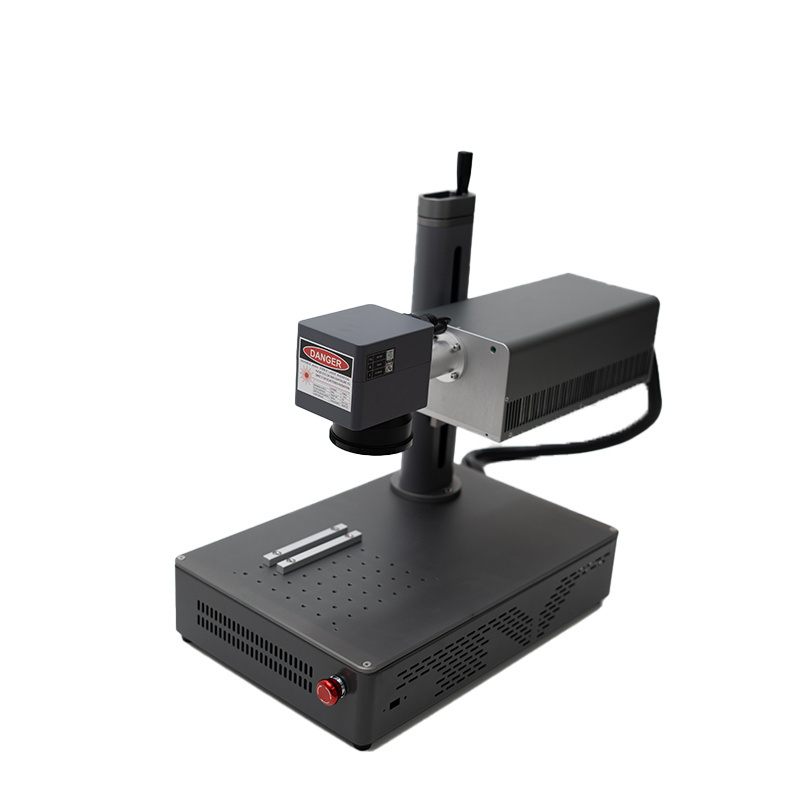

Intelligent fiber laser marking machine
PRODUCT SPECIFICATIONS
|
Model numer 3W
Wavekength 355nm
Puise Repetioon Rate Range 10kHz to 150kHz (Optionssingle shot to 200kHz)
Puise Wih ≤12ns@30kHz
Averagu Power ＞3W@30kHz
Average Power Stabiity ＜+3%over 24 hours
Puine-i-Pulse Stablity ＜3%rms
SpatioMode TE TEM00(M2＜1.2)
BearDovergence Fiull Angle ＜2mrad 1/e2
BeamDiameter 0.7mm
Beom Roundess ＞90%
PontingStablly ＜50urad
Polarization Direcsion Horizontal
Polarization Ralio 100:1
Whole machine power 600W
Coaling Air-cooling
Supported formats PLT.DXF.BMP
Support system Win7/Win10/XP
The fuselage size 500×330×580mm
Fuselage weight 20kg/22kg Packing size 720×460×380mm Support language Chinese ，Simplified, Traditional, English, Korean, Japanese, Arabic, Russian, Portuguese, Vietnamese, Thai, Spanish, French, German,Türkiye
|
