Quick Details
-
Voltage:
-
220v
-
Power:
-
2200
-
Dimension(L*W*H):
-
3100*800*1200
-
Weight:
-
600 kg, 600kg
-
Marketing Type:
-
Hot Product 2022
-
Name:
-
Automatic paper tube core cutter cutting machine
-
Length of master tube:
-
10-3000mm
-
Diameter of core:
-
3 inch 6 inch (38mm-357mm )
-
Paper core cutting width:
-
10-3000mm
-
Paper core cutting speed:
-
20-40m/min
-
Dimensions:
-
3100*800*1200mm
Quick Details
-
Production Capacity:
-
50 m/min
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
None
-
Voltage:
-
220v
-
Power:
-
2200
-
Dimension(L*W*H):
-
3100*800*1200
-
Weight:
-
600 kg, 600kg
-
Marketing Type:
-
Hot Product 2022
-
Name:
-
Automatic paper tube core cutter cutting machine
-
Length of master tube:
-
10-3000mm
-
Diameter of core:
-
3 inch 6 inch (38mm-357mm )
-
Paper core cutting width:
-
10-3000mm
-
Paper core cutting speed:
-
20-40m/min
-
Dimensions:
-
3100*800*1200mm
Product Description

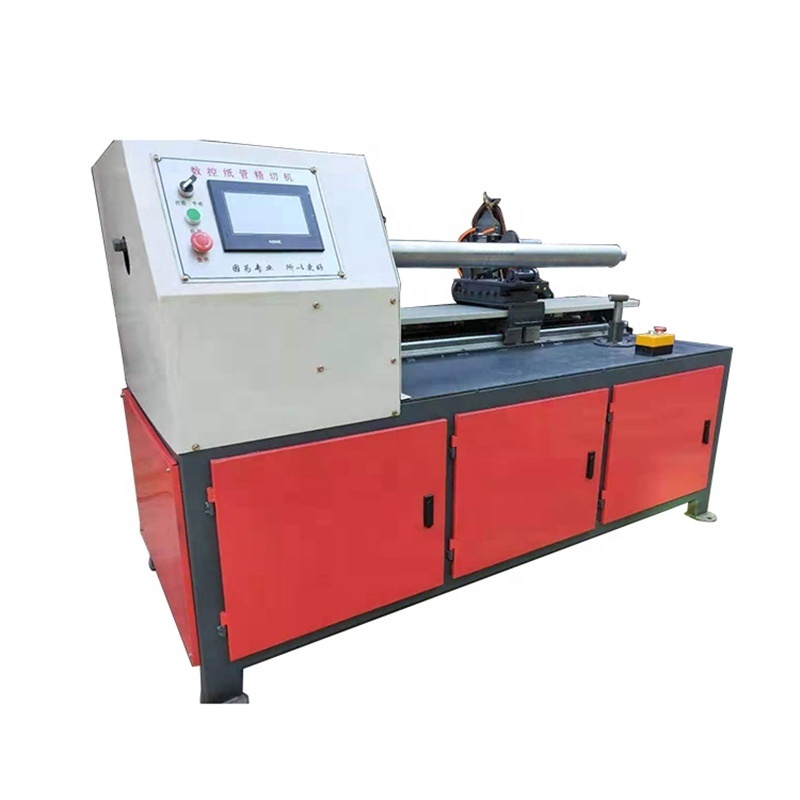

Automatic paper tube core cutter cutting machine
Description
1. Humanized design of color touch screen, easy to operate.2. The cutting time of each tube cutting is 0.5 seconds short.
3. The circuit selects Taiwan plc performance control performance.
4. With automatic closing,automatic clamping, automatic counting, automatic stop function.
5. Normal operation and production, automatic fault diagnosis and alarm to avoid damage to the machine.
6. Using servo system for positioning, Taiwan ball screw drive, the distance is small by 0.01mm
3. The circuit selects Taiwan plc performance control performance.
4. With automatic closing,automatic clamping, automatic counting, automatic stop function.
5. Normal operation and production, automatic fault diagnosis and alarm to avoid damage to the machine.
6. Using servo system for positioning, Taiwan ball screw drive, the distance is small by 0.01mm
Specification
|
Product Name
|
Automatic paper tube core cutter cutting machine
|
|
Length of master tube
|
10-3000mm
|
|
Diameter of core
|
3 inch 6 inch (38mm-357mm )
|
|
Paper core cutting width
|
10-3000mm
|
|
Paper core cutting thickness
|
1—20mm
|
|
Paper core cutting speed
|
20-40m/min
|
|
Cutting knife feeding method
|
pneumatic
|
|
Control method
|
servo motor . English screen PLC
|
|
Voltage
|
380/50Hz
|
|
power
|
2.2kw
|
|
Size
|
3100*800*1200mm
|
|
Weight
|
600kg
|
Product shows
Effect
Packing & Delivery
Wooden case package
