Quick Details
-
Product Weight（kg）:
-
30
-
Input Voltage(V):
-
AC100-240V 50 / 60HZ
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-25 - 40
-
Working Lifetime(Hour):
-
2000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YA LIGHT
-
Emitting Color:
-
RGB
-
Laser safety level:
-
Class IV
-
Warm-up time:
-
1~10 minutes, varies with ambient temperature
-
Spot size:
-
< 12mm (1 meter)
-
Output power:
-
30W
-
Light source wavelength:
-
R638 G520 B445
-
Galvanometer scanning speed:
-
40K
-
Ground resistance:
-
4.2Ω
-
Power consumption of the whole machine:
-
800W (maximum)
-
Cooling method:
-
Air cooling
Quick Details
-
Color Temperature(CCT):
-
5000K (Daylight)
-
Application:
-
building, stage, event
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
30
-
Input Voltage(V):
-
AC100-240V 50 / 60HZ
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-25 - 40
-
Working Lifetime(Hour):
-
2000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YA LIGHT
-
Emitting Color:
-
RGB
-
Laser safety level:
-
Class IV
-
Warm-up time:
-
1~10 minutes, varies with ambient temperature
-
Spot size:
-
< 12mm (1 meter)
-
Output power:
-
30W
-
Light source wavelength:
-
R638 G520 B445
-
Galvanometer scanning speed:
-
40K
-
Ground resistance:
-
4.2Ω
-
Power consumption of the whole machine:
-
800W (maximum)
-
Cooling method:
-
Air cooling
Related Products
Specification
|
Model
|
YLLA-30K/RGB
|
|
Product name
|

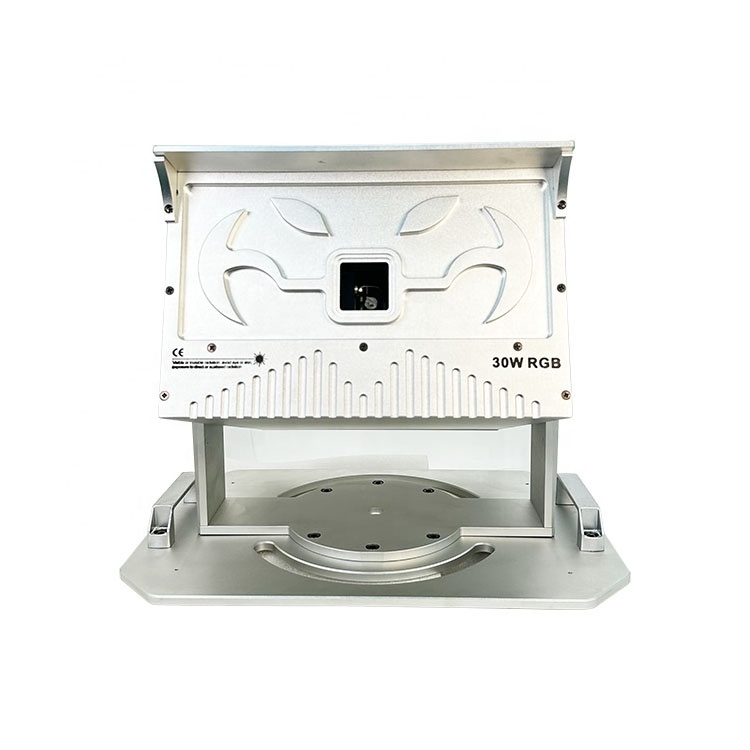

30W RGB Landmark Laser Light
|
|
Input Voltage
|
AC100-240V, 50/60Hz
|
|
Power Consumption
|
800W (maximum)
|
|
Total Laser Power:
|
R10w G10W B10W
|
|
Working environment temperature
|
-35℃~45℃
|
|
Light source working temperature
|
-35°C ~ 45°C
|
|
Warm-up time
|
1~10 minutes, varies with ambient temperature
|
|
Working environment humidity
|
10-95%RH (non-condensing)
|
|
Cooling method
|
Air cooling
|
|
Type
|
Animation Laser Lights
|
|
Ground resistance
|
4.2Ω
|
|
Laser safety level
|
Class IV
|
|
IP Rating
|
IP65
|
|
Control mode
|
Automatic or standard ILDA or DMX512 (choose one of the three)
|
|
Laser output power
|
30W (RGB)
|
|
Brand Name
|
YA LIGHT
|
|
Application
|
stage
|
|
Modulation working mode Analog, modulation
|
frequency>10kHz (output power 0~full power when input signal voltage 0~5V).
|
|
Galvanometer scanning angle range
|
±30° (maximum optical angle). ±20° mechanical adjustment
|
|
Warranty(Year)
|
1-Year
|
|
Control Signal
|
DMX 512
|
|
Working mode
|
Continuous
|
|
Galvanometer scanning speed
|
40K
|
|
Light source wavelength
|
R638 G520 B445
|
|
Beam mode
|
Near TEM00
|
|
Packing size
|
480x320x290mm
|
|
Spot size
|
< 12mm (1 meter)
|
|
Divergence
|
< 1.5mrad
|
|
Service life
|
More than 20,000 hours under normal use
|
|
Product packing size
|
510X480X360mm
|
|
N.W.G.W.
|
29.3KG/45KG
|
|
Material
|
Plastic+ Die-cast aluminum
|
Product Description
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Can you produce custom product?
A:Yes,OEM/ODM orders are welcome.
A:Yes,OEM/ODM orders are welcome.
Q3. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: How to deal with the faulty?
A: 1.Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
2.During the guarantee period,one-year free warranty: within one year from the date of sale, under normal use, if there is a quality problem, contact after-sales customer service to provide relevant pictures and videos to explain the quality problem, and you can enjoy free maintenance services.
3.Lifetime limited warranty: Product damage caused by improper use or unauthorized modification or repair, or products that exceed the one-year free warranty period, will provide paid repair services. The cost is subject to the actual replacement material cost without additional labor fee. All repair service freight is borne by yourself.
4.Product Accessories: warranty range of the beam bulb is 3 months.
A: 1.Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
2.During the guarantee period,one-year free warranty: within one year from the date of sale, under normal use, if there is a quality problem, contact after-sales customer service to provide relevant pictures and videos to explain the quality problem, and you can enjoy free maintenance services.
3.Lifetime limited warranty: Product damage caused by improper use or unauthorized modification or repair, or products that exceed the one-year free warranty period, will provide paid repair services. The cost is subject to the actual replacement material cost without additional labor fee. All repair service freight is borne by yourself.
4.Product Accessories: warranty range of the beam bulb is 3 months.
