- Product Details
- {{item.text}}
Quick Details
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Partaker
-
Model Number:
-
I27
-
Processor Model:
-
i3 6006U i5 7200U i5 8250U i7 8550U
-
Processor Main Frequency:
-
1.8Ghz
-
Ports:
-
4* USB 3.0, 4* USB 2.0, 1*HDMI, 1*Lan
-
Feature:
-
Fanless+Aluminum Alloy Metal Case
-
Series Ports:
-
6*RS232 ( 2*RS485/RS422 optional )
-
Lan:
-
2*10/100/1000M Intel i211 Ethernet
-
Storage Type:
-
1*mSATA SSD+1*2.5 inch SSD/HDD
-
Display port:
-
1*HD, 1*VGA
-
Size:
-
230*175*50mm
Quick Details
-
Use:
-
Industrial
-
Hard Drive Type:
-
SSD
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Partaker
-
Model Number:
-
I27
-
Processor Model:
-
i3 6006U i5 7200U i5 8250U i7 8550U
-
Processor Main Frequency:
-
1.8Ghz
-
Ports:
-
4* USB 3.0, 4* USB 2.0, 1*HDMI, 1*Lan
-
Feature:
-
Fanless+Aluminum Alloy Metal Case
-
Series Ports:
-
6*RS232 ( 2*RS485/RS422 optional )
-
Lan:
-
2*10/100/1000M Intel i211 Ethernet
-
Storage Type:
-
1*mSATA SSD+1*2.5 inch SSD/HDD
-
Display port:
-
1*HD, 1*VGA
-
Size:
-
230*175*50mm

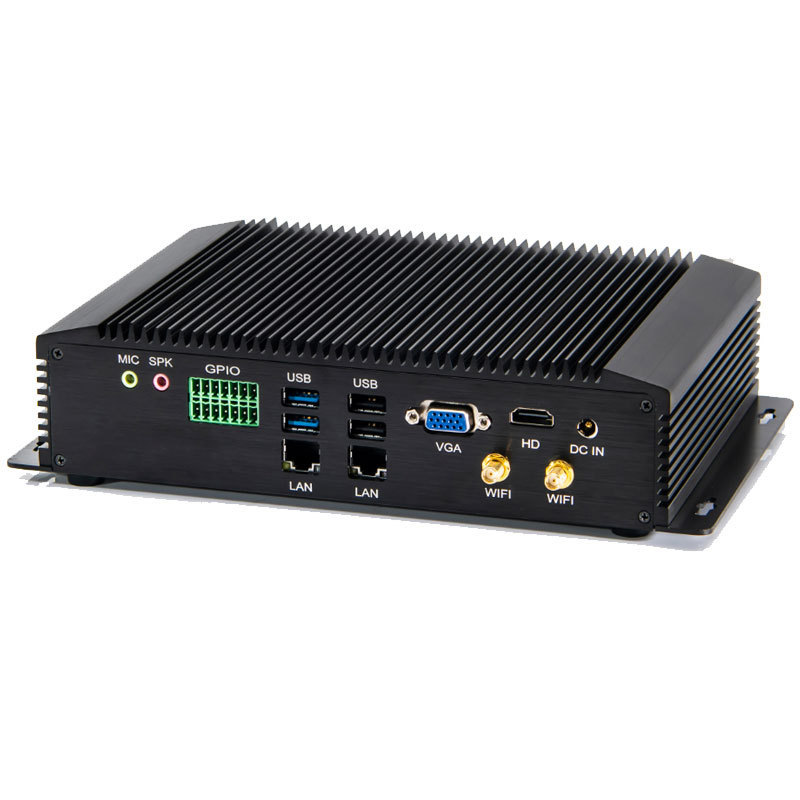

Product Description
Processor has 4 options suitable for the same motherboard:
1. Skylake 14nm CPU Intel Core i3 6006U 2 cores 4 threads 2.0Ghz 3M cache TDP 15W Intel HD 520.
2. Kaby Lake 14nm CPU Intel Core i5 7200U 2 cores 4 threads 2.5Ghz Max to 3.0Ghz 3M cache TDP 15W Intel HD 620.
3. Kaby Lake R 14nm CPU Intel Core i5 8250U 4 cores 8 threads 1.6Ghz Max to 3.4Ghz 6M cache TDP 15W Intel UHD 620.
4. Kaby Lake R 14nm CPU Intel Core i7 8550U 4 cores 8 threads 1.8Ghz Max to 4.0Ghz 8M cache TDP 15W Intel UHD 620.
Industrial Mini PC Intel Core i3 6006U/i5 7200U/i5 8250U/i7 8550U Processors, support Windows 10, Windows 8.1, Windows 7, Linux & Ubuntu(not support XP)
Support dual storage 1*mSATA +1*2.5inch SATA SSD/HDD, 4*USB 3.0, 4*USB 2.0 ( total 8x USB prots ),
Dual Intel Gigabit Ethernet LAN ports, Mini PCI-E WiFi 802.11b/g/n(Buletooth optional ), 6x RS232 Serial Ports ( 2x RS485/RS422 optional
HDMI & VGA Dual Display, Aluminum Chassis & Fanless passive Cooling & Zeor Noise & Energy saving,
Watch Dog function, Auto power on, RTC Wake up, Support 3G/4G module and SIM card
Free Operating System
:
Default installed our activated OEM cracked version(not genuine, works good)Windows English for free, other
languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform
us which language you want to install, defalut is english version. Other systems we can install free are like Linux, XBMC(Kodi),
Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system.
languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform
us which language you want to install, defalut is english version. Other systems we can install free are like Linux, XBMC(Kodi),
Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system.
Specification
|
Chipset
|
Intel FCBGA1168 package CPU
|
|
Memory
|
Max 16G DDR4 2400/2666MHz laptop memory, 1* 260 pin SO-DIMM
|
|
Storage Capacity
|
Support 1* 2.5 inch SATA laptop HDD or SSD, 1* mSATA SSD
|
|
Graphics
|
Intel® UHD Graphics 620
|
|
Power Supply
|
DC 12V/5A
|
|
OS
|
Windows8, 10 and all kind Linux OS
|
|
Function
|
Watch dog, Auto power on after power loss, PXE Boot, RTC Wake Up, Non-disk boot, State lamp interface, etc
|
|
Case Material
|
Full Brushed Aluminum Alloy
|
|
Dimension
|
23*17.5*5 cm
|
|
I/O
|
1* HD 4K output +1* VGA Full HD output;
|
|
|
2* Intel i213 Gigabit RJ45 Lan
|
|
|
1* half height mini PCIe WiFi + 1* Full size mini PCI express slot + 1* SIM card slot
|
|
|
4* RS232+ 2*RS232/RS422/RS485 COM Port
|
|
|
1* GPIO + 1* PS2
|
|
|
4* USB 2.0 + 4* USB 3.0
|
|
|
1* SPK + 1* MIC, High Definition Audio Controller
|
|
|
1* DC 12V Power interface
|
|
Temperature
|
-10~60 degrees
|
|
Warranty
|
30 days free defective replacement and 3 years free repair
|
|
Relative humidity
|
0~90% relative humidity
|
|
TDP
|
Theoretically max 15W, Real use max 8.7W
|
|
TDP Down
|
7.5W
|
|
Weight
|
NW 2.0kg, GW 2.5kg
|
|
Package Content
|
1* Mini PC; 1* power adapter; 1* power cord; 2* Antennas(optional); 1* Driver CD; 1*User manual, etc
|
