Quick Details
-
Marketing Type:
-
/
-
Warranty of core components:
-
/
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xilin
-
Weight (KG):
-
1800 kg
-
Name:
-
Xilin counterbalanced electric reach stacker
-
Color:
-
All accepted
-
Operator type:
-
stand on type
-
Load capacity:
-
1250kg
-
Lift height:
-
2500mm-5600mm
-
Handle:
-
FREI TIILER HEAD
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
United States, Russia, Malaysia
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
Video outgoing-inspection:
-
/
-
Machinery Test Report:
-
/
-
Marketing Type:
-
/
-
Warranty of core components:
-
/
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xilin
-
Weight (KG):
-
1800 kg
-
Name:
-
Xilin counterbalanced electric reach stacker
-
Color:
-
All accepted
-
Operator type:
-
stand on type
-
Load capacity:
-
1250kg
-
Lift height:
-
2500mm-5600mm
-
Handle:
-
FREI TIILER HEAD
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
United States, Russia, Malaysia
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE

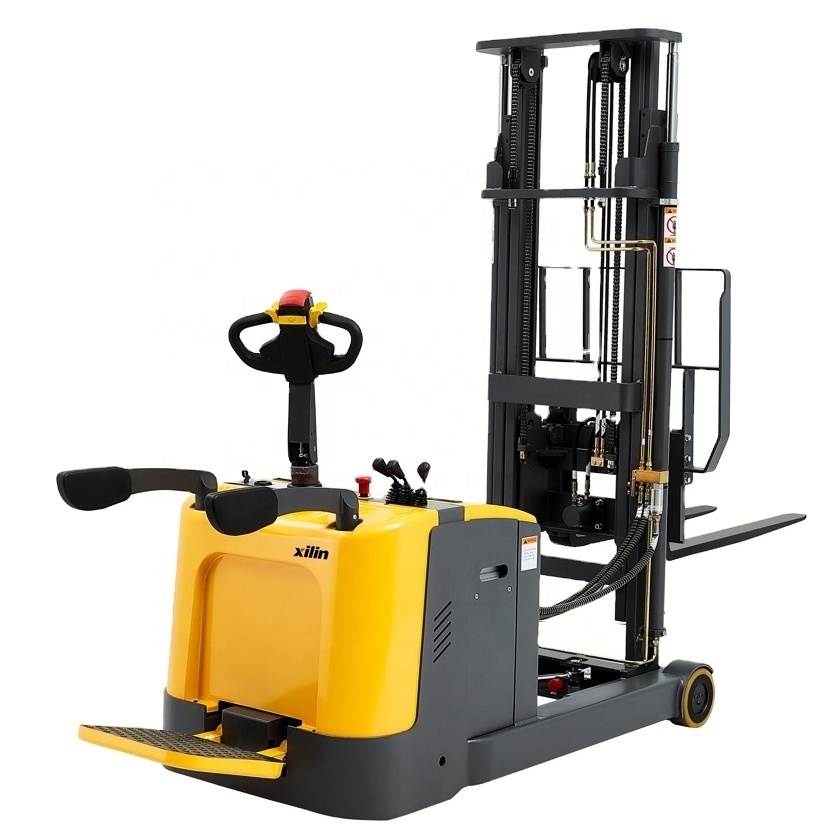

Xilin Electric Forklift 1250kg Counterbalanced Reach Stacker with AC motor
Advantages:
STRUCTURAL
● Two lifting cylinders placed on outer sides of the mast.
● Germany imported special steel mast.
● Vertical driving wheel , driving efficiency, easy installation & maintenance.
● Compact structure and low gravity.
SAFETY AND EFFICIENCY
● AC frequency conversion traction motor.
● Tilting system forks easy for loading and stacking.
● High Storage battery ensures strong and long-lasting power.
● Meter with BDI , prolonging the battery's using time.
● The braking system combines magnetic brake and regenerative break .
● With emergency stop switch and electricity lock button , and multi-valve controlling levers , ergonomic for operation .
● The adjustable regulator valve can adjust the lowing speed of the masts.
EASY MAINTENANCE
● Magnet suction battery cover, easy for installation and maintenance.
● AC controlling system, low noise, less maintenance.
● Two lifting cylinders placed on outer sides of the mast.
● Germany imported special steel mast.
● Vertical driving wheel , driving efficiency, easy installation & maintenance.
● Compact structure and low gravity.
SAFETY AND EFFICIENCY
● AC frequency conversion traction motor.
● Tilting system forks easy for loading and stacking.
● High Storage battery ensures strong and long-lasting power.
● Meter with BDI , prolonging the battery's using time.
● The braking system combines magnetic brake and regenerative break .
● With emergency stop switch and electricity lock button , and multi-valve controlling levers , ergonomic for operation .
● The adjustable regulator valve can adjust the lowing speed of the masts.
EASY MAINTENANCE
● Magnet suction battery cover, easy for installation and maintenance.
● AC controlling system, low noise, less maintenance.
OPTION :
With EPS the drive wheel size is 250x80mm
Lithium battery 225AH(Charger 24V/100A)
|
model
|
|
|
CQD12R
|
|
Capacity
|
|
（kg)
|
1250
|
|
Load centre distance
|
c
|
(mm)
|
500
|
|
Load distance, centre of drive axle to fork
|
x
|
(mm)
|
430
|
|
Height, mast lowered
|
h1
|
(mm)
|
1820/2070/2320/1920/2080/2250/2420
|
|
Free lift
|
h2
|
(mm)
|
0/0/0/1386/1550/1720/1886
|
|
Max. lift height
|
h3
|
(mm)
|
2500/3000/3500/4000/4500/5000/5500
|
|
Height, mast extended
|
h4
|
(mm)
|
3300/3800/4300/4800/5300/5800/6300
|
|
Overall length
|
l1
|
(mm)
|
2150
|
|
Length to face of forks
|
l2
|
(mm)
|
1200
|
|
Overall width
|
b1
|
(mm)
|
990
|
|
Fork dimensions
|
s/e/l
|
(mm)
|
35/100/950（1070/1150）
|
|
Width overall forks
|
b5
|
(mm)
|
220-680
|
|
Aisle width for pallets 800x1200lengthways
|
Ast
|
(mm)
|
2650
|
|
Turning radius
|
Wa
|
(mm)
|
1650
|
|
Travel speed, laden/unladen
|
|
Km/h
|
6.8/7
|
|
Lifting speed, laden/unladen
|
|
m/s
|
0-0.13/0-0.16
|
|
Battery Voltage, normal capacity K5
|
V/Ah
|
V/Ah
|
24/ 270
|
|
Truck weight
|
|
kg
|
1800
|
Ningbo Ruyi Joint Stock Co. Ltd.
Ruyi has been dedicated to the manufacture of the warehousing logistics equipment and the main products can be classified intothe following series, electric pallet truck , electric stacker , order picker , narrow aisle truck , electric tow tractor , hand pallet truck , manual stacker , lift table and forklift .
Ruyi has been dedicated to the manufacture of the warehousing logistics equipment and the main products can be classified intothe following series, electric pallet truck , electric stacker , order picker , narrow aisle truck , electric tow tractor , hand pallet truck , manual stacker , lift table and forklift .
Q1: Are you a factory?
A1 : Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985 , is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
A1 : Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985 , is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
Q2: Can Ruyi provide customized products?
OEM products or ODM products?
A2
: Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot of non-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3 : Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4 : Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately .
Q5: Do you have agent or representative abroad?
A5 : Yes. We have two branches in the US and Russia . We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6 : Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7 : T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8 : 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
Q3: What's the specification of the chargers?
A3 : Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4 : Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately .
Q5: Do you have agent or representative abroad?
A5 : Yes. We have two branches in the US and Russia . We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6 : Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7 : T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8 : 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
