Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
xinda
-
Voltage:
-
380V,50HZ
-
Dimension(L*W*H):
-
3.0*0.8*1.6M
-
Weight:
-
1.5 kg
-
After-sales Service Provided:
-
Free spare parts
-
finished product:
-
paper tube , paper pipe
-
production speed:
-
10-20m/min
-
specification of roll core:
-
28-60mm
-
specification of raw material:
-
300-400g , 50-90mm
-
Layers of finished product:
-
2-6 layers
-
raw material:
-
kraft paper
-
usage:
-
for toilet paper , small bobbin and so on
-
Power:
-
380V,50HZ,3PHASE
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
10-20m/min
-
Max. workable width:
-
1300mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
xinda
-
Voltage:
-
380V,50HZ
-
Dimension(L*W*H):
-
3.0*0.8*1.6M
-
Weight:
-
1.5 kg
-
After-sales Service Provided:
-
Free spare parts
-
finished product:
-
paper tube , paper pipe
-
production speed:
-
10-20m/min
-
specification of roll core:
-
28-60mm
-
specification of raw material:
-
300-400g , 50-90mm
-
Layers of finished product:
-
2-6 layers
-
raw material:
-
kraft paper
-
usage:
-
for toilet paper , small bobbin and so on
-
Power:
-
380V,50HZ,3PHASE

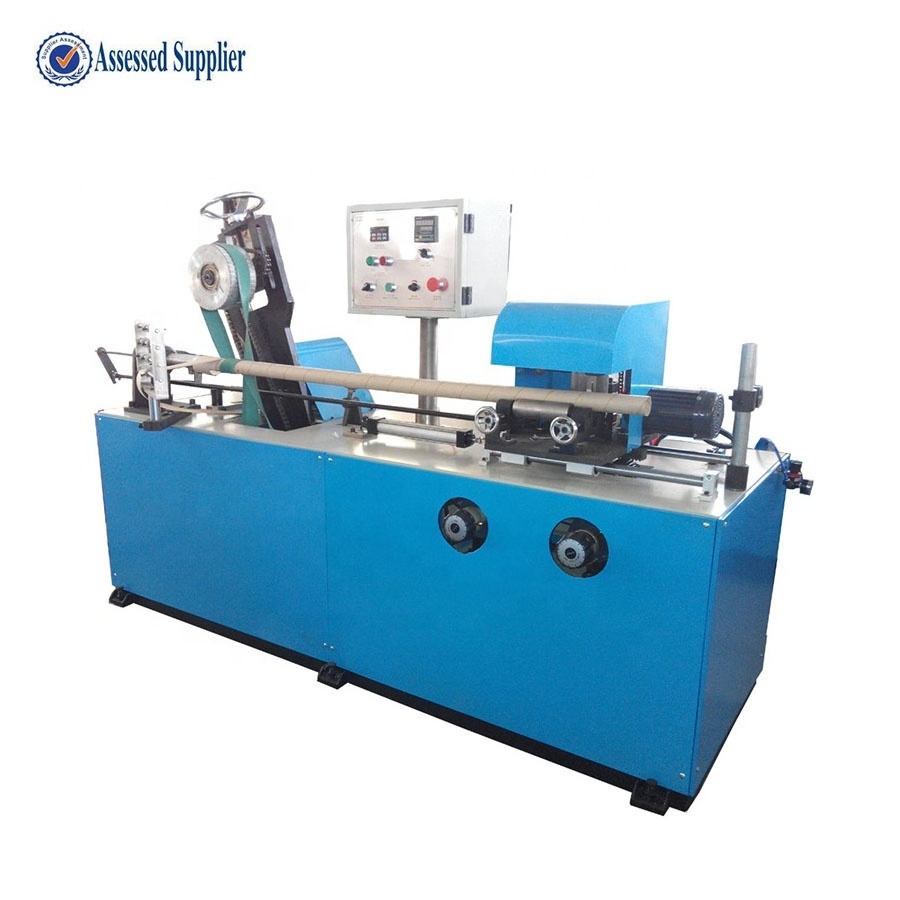

CIL-RC-A Automatic Roll Core Machine
Construct Characteristic
- This machine is the equipment to produce punched and rewinding paper core, which is advanced in designing and convenience in operation.
- Cut pipe without stopping machine. The cutting surface is trim and length is uniform
- Make other size of core (diameter and length) is very easy to change the spare parts.
- Not hot and dry during the forming of product, the consumption of equipment is less.
- The composed parts are of high rigidity, equipment is stable without shake when rolling core with high speed.
Technical parameter:
- Production Speed: 10~20 m/min
- Specification of Roll Core: core diameter: 28~75mm (2~7 layers),
length 1.2~1.96 m
- Specification of Jumbo Roll: 300~400 g/M2 width 50~90 mm
- Installed power: 4.5Kw (380V 50Hz)
- Overall Size of Equipment (L×W×H m):3.0×0.8×1.6 m
- Weight of Equipment: 1.5T
*There are two kind of core bar, pointed by customers.
