- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
VD
-
Material::
-
Rubber Pads Hvac Vibration Isolator Mounts Damper
-
Type:
-
KT Rubber vibration isolator
-
Design Style::
-
Industrial
-
Shape:
-
Rectangle
-
Color:
-
Black
-
MOQ:
-
1 SET
-
Installation:
-
Refrigerator Part, fan, cooling tower, water pump
-
After-sale Service::
-
Online technical support
-
Material:
-
Rubber+steel
-
Size:
-
Custom Size
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUYI
-
Model Number:
-
VD
-
Material::
-
Rubber Pads Hvac Vibration Isolator Mounts Damper
-
Type:
-
KT Rubber vibration isolator
-
Design Style::
-
Industrial
-
Shape:
-
Rectangle
-
Color:
-
Black
-
MOQ:
-
1 SET
-
Installation:
-
Refrigerator Part, fan, cooling tower, water pump
-
After-sale Service::
-
Online technical support
-
Material:
-
Rubber+steel
-
Size:
-
Custom Size

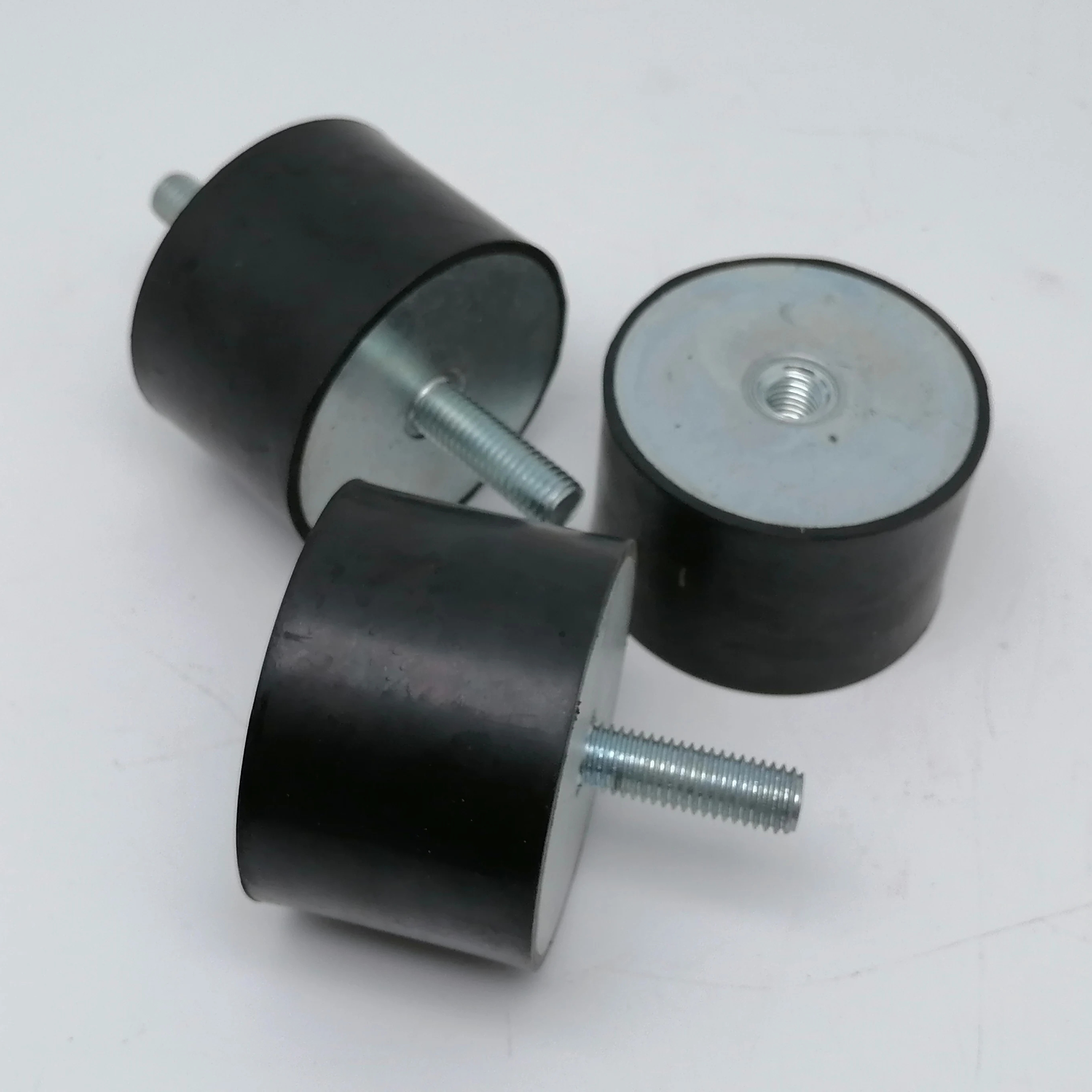

Wholesale M3 M4 M6 M8 M10 M12 M16 engine generator rubber bumper silent block shock absorber anti vibration rubber damper mount
Rubber Anti Vibration Mount is suitable for shock absorbing products, automobile industry, heavy machinery, fitness equipment,electronic equipment, instrument, air compressor, diesel nerator set, vibration body of motor and other power machinery to protect the normal work of the body and good surrounding environment. Simple structure, economical and suitable, five kinds of fixed installation methods, easy to install, reliable performance, neat and complete, strong optional. Anti vibration and noise reduction effect is obvious.
|
Overall dimensions
(mm )
|
|
Screw
(mm)
|
|
|
Bearing capacity
(kg/mm)
|
|
Optimal compression (mm)
|
||||
|
A
|
B
|
C
|
|
H
|
40°
|
60°
|
|
||||
|
10
|
10
|
M3
|
M4
|
6/10
|
5
|
10
|
2
|
||||
|
15
|
10
|
M3
|
M4
|
10/11/15
|
10
|
18
|
2
|
||||
|
20
|
15
|
M6
|
|
8/10/16
|
13
|
25
|
2
|
||||
|
25
|
20
|
M6
|
M8
|
10/15/23
|
17
|
33
|
2
|
||||
|
30
|
20
|
M8
|
|
16/20/23
|
22
|
40
|
2
|
||||
|
30
|
30
|
M8
|
|
16/20/23
|
28
|
50
|
2.5
|
||||
|
40
|
20
|
M8
|
M10
|
23/27
|
26
|
48
|
2
|
||||
|
40
|
30
|
M8
|
M10
|
23/27
|
32
|
60
|
2.5
|
||||
|
40
|
40
|
M8
|
M10
|
23/27
|
38
|
72
|
3
|
||||
|
50
|
20
|
M10
|
M12
|
23/27/32
|
30
|
56
|
2
|
||||
|
50
|
30
|
M10
|
M12
|
23/27/32
|
38
|
70
|
2.5
|
||||
|
50
|
40
|
M10
|
M12
|
23/27/32
|
45
|
85
|
3
|
||||
|
50
|
50
|
M10
|
M12
|
23/27/32
|
45
|
85
|
3
|
||||
|
60
|
35
|
M10
|
M12
|
23/27/32
|
60
|
110
|
2.5
|
||||
|
60
|
50
|
M10
|
M12
|
23/27/32
|
72
|
132
|
3
|
||||
|
60
|
60
|
M10
|
M12
|
23/27/32
|
72
|
132
|
3
|
||||
|
70
|
40
|
M12
|
M16
|
37/42
|
135
|
240
|
3
|
||||
|
75
|
40
|
M12
|
M16
|
37/42
|
150
|
270
|
3
|
||||
|
80
|
50
|
M12
|
M16
|
37/42
|
175
|
280
|
3
|
||||
|
80
|
60
|
M12
|
M16
|
37/42
|
205
|
325
|
3.5
|
||||
|
100
|
50
|
M16
|
|
42/47
|
230
|
420
|
3
|
||||
|
100
|
75
|
M16
|
|
42/47
|
310
|
560
|
4
|
||||
|
150
|
75
|
M16
|
M20
|
42/47
|
750
|
1400
|
5
|
||||
Features
1. The JGD rubber shock absorber is made of metal parts and rubber bodies, and its elastic body adopts an axisymmetric annular shear structure.
2. There are 4 kinds of sizes and structures, 10 kinds of bearing specifications, the axial bearing rated load is 10-1280kg, and the bearing range is wide. Good adaptability, combining the advantages of spring isolators and rubber isolators.
3.Compared with the same type of vibration isolator of the same specification, it is smaller in structure size, light in weight, easy to install, safe and reliable in operation, and can work normally in the range of
4.It has a good effect on the isolation of rotary and reciprocating mechanical vibration above 800r/min.
Henan Yuyi Industry Co, Ltd is a professional factory on Rubber Joint and Shock Absorbers development, production, sales and customized design with more than 15years experience, which is located at Economic Development Zone Xicun Village, Gongyi Zhengzhou City, Henan Province, China.
We are specialized in manufacturing Rubber/Metal Expansion Joint, Metal Braided Hose, Metal Bellows, Spring Mountain Shock Absorber and other pipe products. With fully automatic production line, high-tech equipment, highly qualified engineer and personnel. Which are capable to provide the best top-quality in the international market as Australia, USA, Europe, Middle-east and Southeast Asia.
"Solidarity, Development'' as our principle, "Surviving by Quality, Developing by Honesty'' as our tenet. We sincerely look forward to building long-term good business relation with you and warmly welcome to join us.
FAQ
1. Where is your factory?
Henan Yuyi Industry Co., Ltd. based in Henan, China, start from 2016,We supply many different standards professional products for more than 60 countries and areas in the world.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
We had many professional inspections and certificates. We had passed inspections of CE, NSF, SGS, and get the certificates of ISO 9001, ISO 14001, OHSAS 18001, and WRAS, and so on.
3.Can you provide drawings and technical data?
A:Yes, our professional technical department will design and provide drawings and technical data.
4.what can you buy from us?
Rubber Expansion Joint,Metal Expansion Joint,Metal Braided hose,Bellow Expansion Joint,Spring Mount Vibration Isolater and so on.
5. why should you buy from us not from other suppliers?
We are specialized in manufacturing Rubber/Metal Expansion Joint, Metal Braided Hose, Metal Bellows, Spring Mountain Shock Absorber and other pipe products. With fully automatic production line, high-tech equipment, highly qualified engineer and personnel.
6.Do you provide samples? Is it free or charged?
Yes, we can offer sample free but shipping charges covered by customer.
7.Is quality warranty supported？
Free warranty for 3 years, support third-party testing
8. what services can we provide?
Accepted Delivery Terms: FOB,CIF,FCA,DDP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
